Server Board S5500BC TPS Connector / Header Locations and Pin-outs
Revision 1.8 Intel order number: E42249-009 95
6.6.3 Serial Port Connectors
The Intel
®
Server Board S5500BC provides one external 9-J8A1) and one
internal 9-pin Serial B port header (J9A1). Serial A is a standard DB-9 interface which is located
on the rear I/O panel of the server board. The following tables define the pin-outs for each:

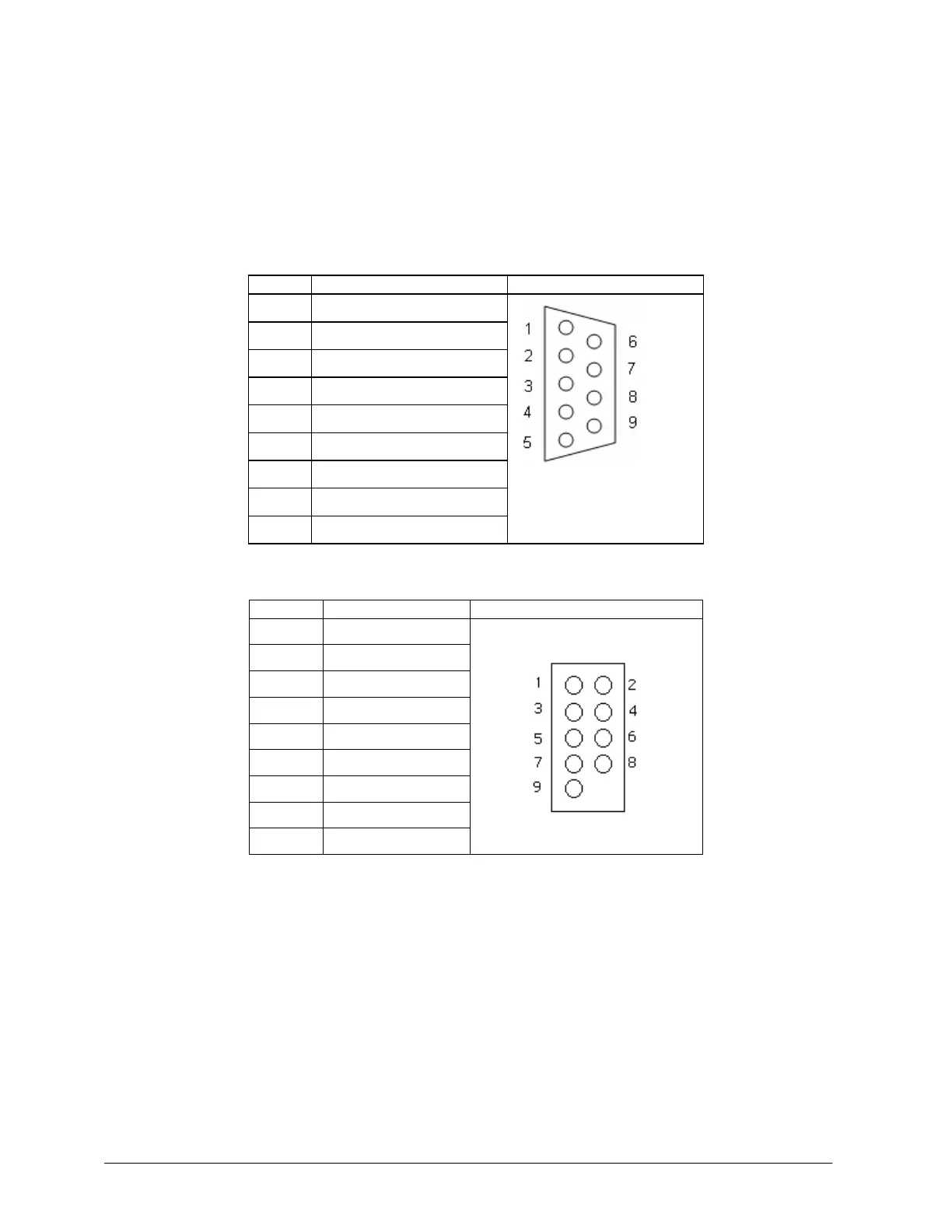

Table 50. 9-pin External Serial A Port Header Pin-out (J8A1)
Pin
Signal Name
Description
1
SPA_DCD
2
SPA_SIN_N
3
SPA_SOUT_N
4
SPA_DTR
5
GND
6
SPA_DSR
7
SPA_RTS
8
SPA_CTS
9
SPA_RI
Table 51. Internal Serial B Port Header Pin-out (J9A1)
Pin
Signal Name
Serial Port A Header Pin-out
1
DCD
2
DSR
3
RXD
4
RTS
5
TXD
6
CTS
7
DTR
8
RI
9
GND
6.6.4 USB and GigE Connector
The Intel
®
ICH10R I/O Controller Hub on the Intel
®
Server Board S5500BC supports eleven
USB ports. Four ports are connected to two USB+RJ-45 NIC stacked connectors on the rear
panel of the server board. The following table lists the pin-out information for the external USB
connectors (J5A1, J6A1).
