Intel SC5650BCDP Technical Product Specification

Appendix F: Supported Intel® Server Chassis SC5650 and Intel® Server System SC5650BCDPIntel® Server Board S5500BC TPS
Intel order number: E42249-009 Revision 1.8
144
Appendix F: Supported Intel
®
Server Chassis SC5650 and
Intel® Server System SC5650BCDP
The Intel
®
Entry Server Chassis SC5650 is a 5.2U pedestal chassis designed to support the
Intel
®
Server Boards S5500BC.
The Intel
®
Entry Server Chassis SC5650 addresses the value server market with two power
factor correction (PFC) power supply unit (PSU) configurations:
 SC5650DP  600-W fixed PSU for dual-processor server boards
 SC5650BRP  600-W 1+1 redundant PSU for dual-processor server boards
For more information, see the Intel
®
Server Chassis SC5650 Technical Product Specification
(TPS).

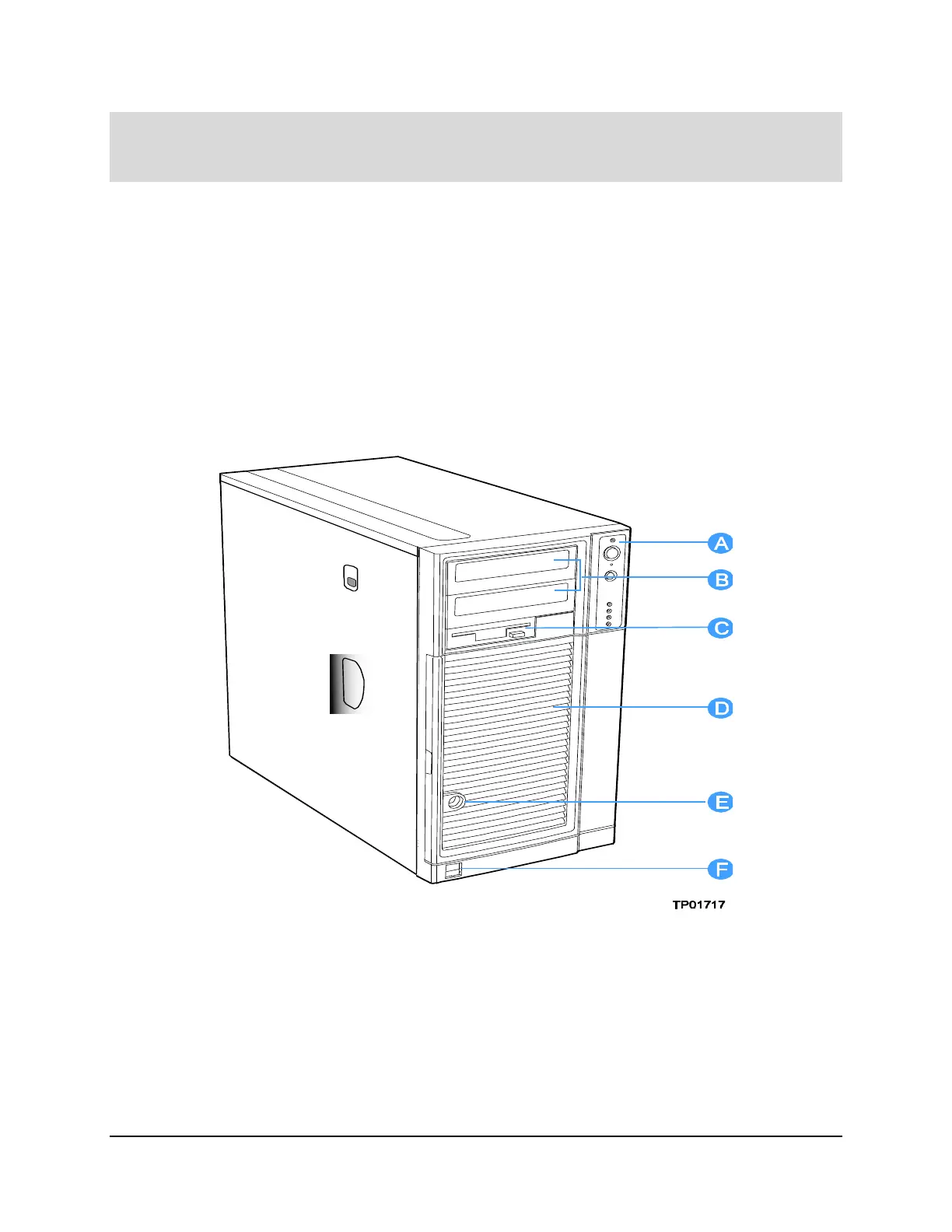

A. Control panel controls and indicators
B. Two half-height 5.25-inch peripheral drive bays
C. 3.5-inch removable media drive bay
D. Internal hard drive bay cage (behind door)
E. Security lock
F. USB ports
Figure 50. 5U Intel
®
Entry Server Chassis SC5650 Overview
