Server Board S5500BC TPS Functional Architecture
Revision 1.8 Intel order number: E42249-009 15
3. Functional Architecture
The architecture and design of the Intel
®
Server Board S5500BC is based on the Intel
®
5500
chipset and the Intel
®
Xeon
®
processor 5500 series and 5600 series. This chapter provides a
high-level description of the functionality associated with each chipset component and
architectural blocks that make up this server board.

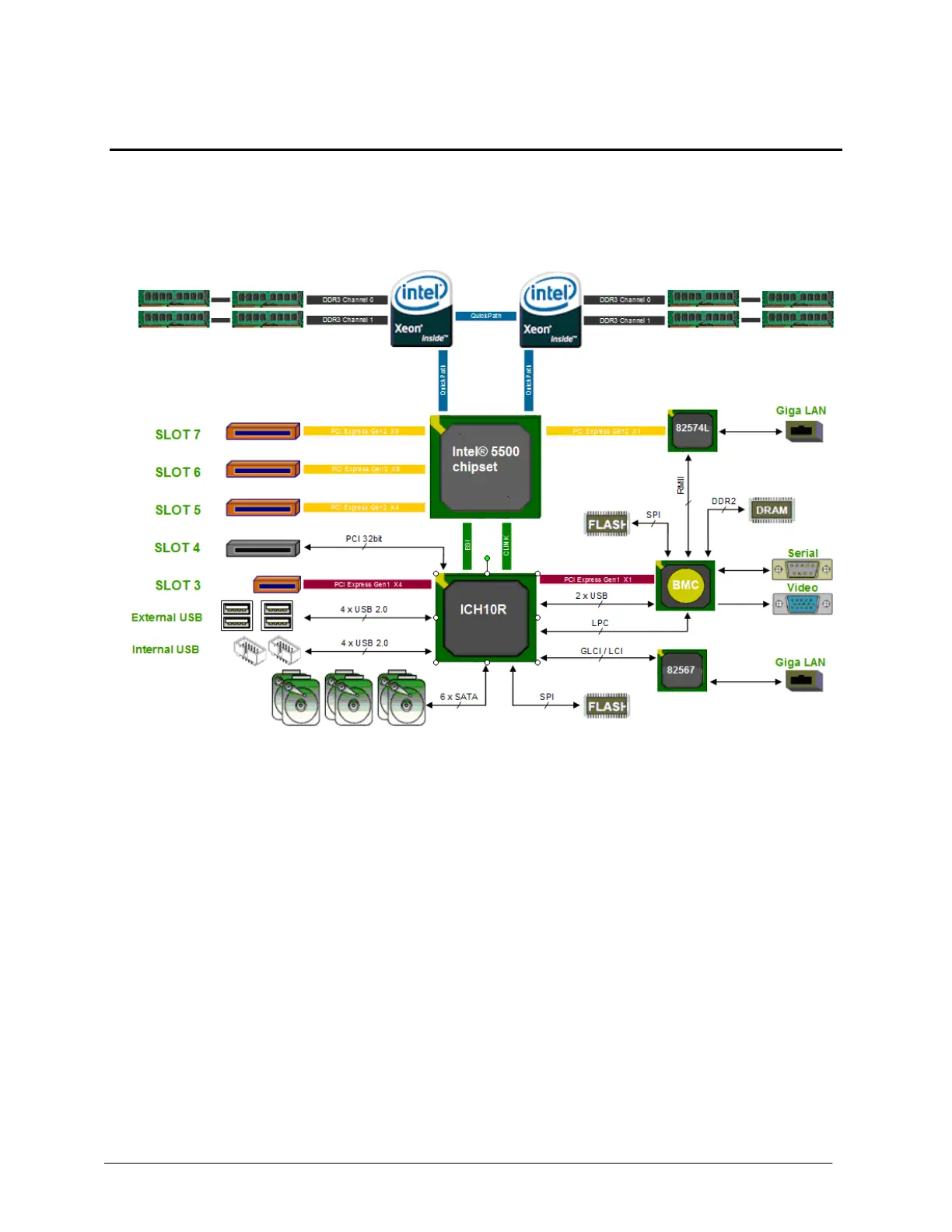

Figure 12. Functional Block Diagram
3.1 Processor Subsystem
The Intel
®
Xeon
®
processor 5500 series and 5600 series is the first generation
server/workstation multi-core processor to implement the following key technologies:
 Integrated Memory Controller
 Point-to-point link interface based on Intel
®
QuickPath Interconnect (QPI)formerly
known as Common System Interface.
The processor is optimized for performance with the power efficiencies of a low-power micro
architecture to produce smaller, quieter systems.
