Intel SC5650BCDP Technical Product Specification

Intel
®
Server Board S5500BC TPS Functional Architecture
Revision 1.8 Intel order number: E42249-009 17
Intel
®
Xeon
®
5500 processor
Intel
®
Xeon
®
5500 processor
Core– 0
….
Core– 3
Core– 0
….
Core– 3
Cache
Cache
Mem I/F
CSI Interface
CSI Interface
Mem I/F
Memory
Memory
CSI Interface
CSI Link
PCI-E
PCI-E PCI-E
Intel® 5500
I/O Hub

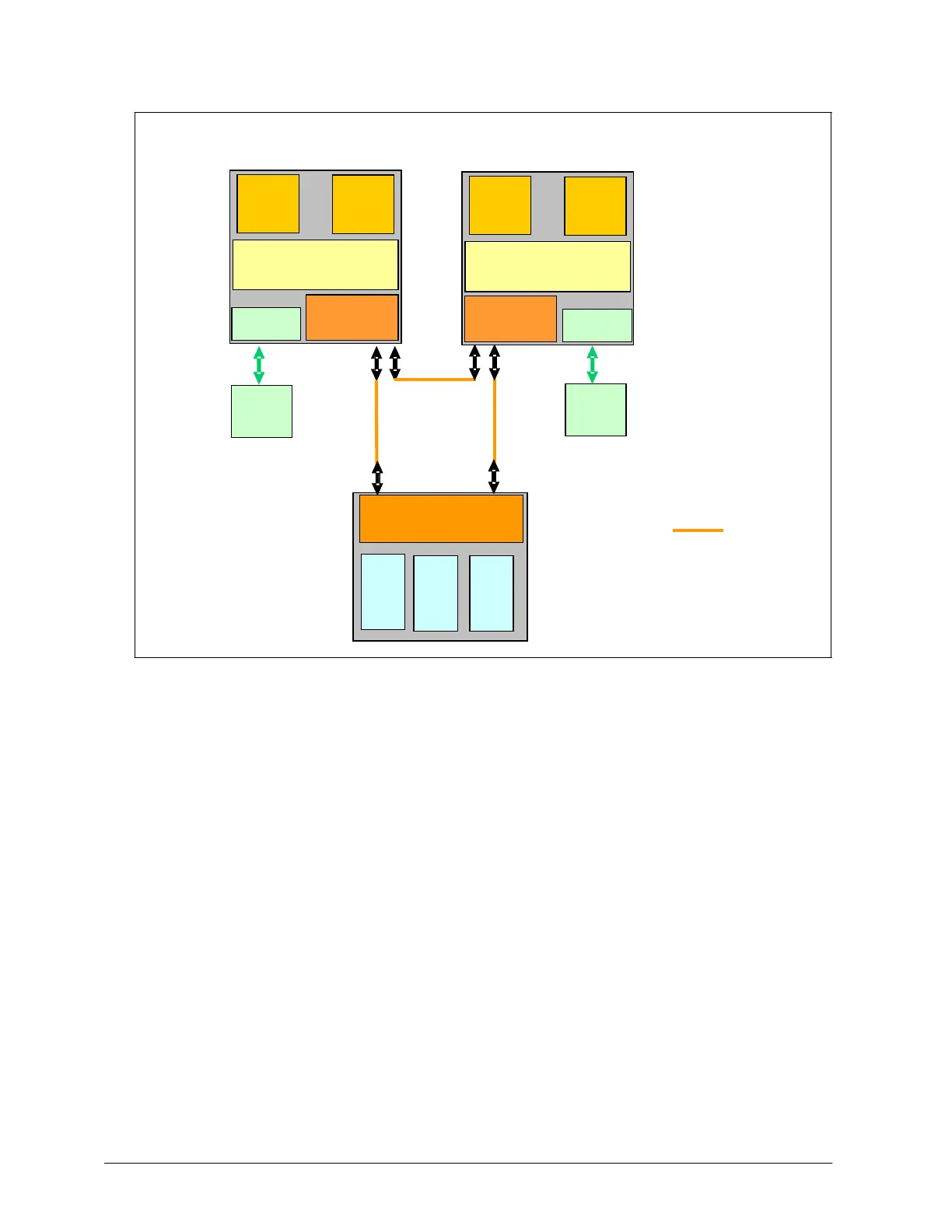

Figure 13. Intel
®
IOH 5500 Chipset with Intel
®
QuickPath Interconnect Block Diagram
3.1.2 Processor Population Rules
When using a single processor configuration, you must install the processor into the processor
socket labeled CPU_1. A terminator is not required in the second processor socket when a
single processor is used.
When two processors are installed, the following population rules apply:
 Both processors must be from the same processor family.
 Both processors must have the same Intel
®
QuickPath Interconnect speed.
 Both processors must have the same cache size.
 You can mix processors with different speeds in a system, given the prior rules are met.
If this condition is detected, all processor speeds are set to the lowest common
denominator (highest common speed) and an error is reported.
 You can mix processor stepping within a common processor family as long as it is listed
in the processor specification updates published by Intel Corporation.

Intel SC5650BCDP Specifications

General

Brand	Intel
Model	SC5650BCDP
Category	Server
Language	English
