Intel SC5650BCDP

Functional Architecture Intel
®
Server Board S5500BC TPS
Intel order number: E42249-009 Revision 1.8
22

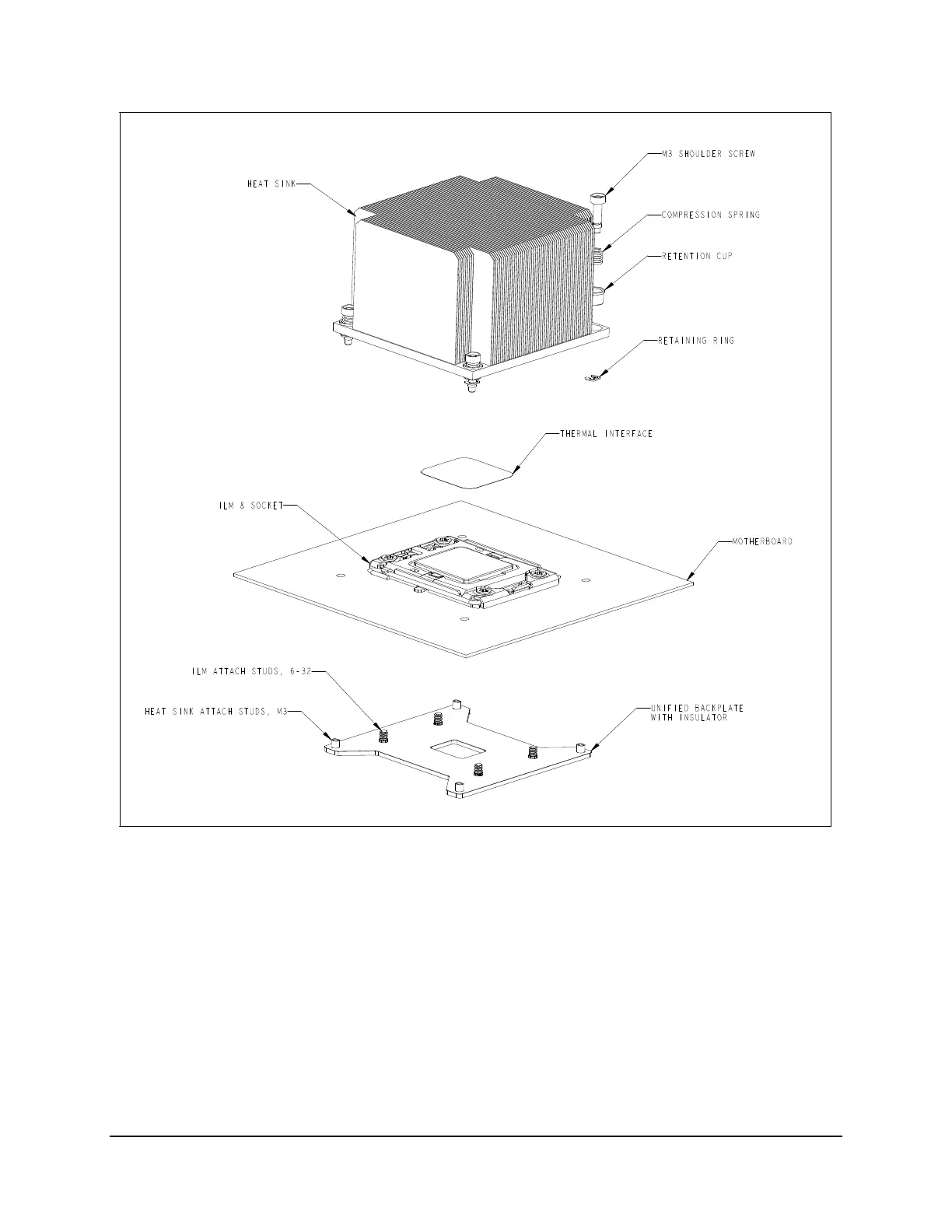

Figure 14. ILM Backplate and URS
3.2 Memory Subsystem
3.2.1 Supported Memory
The Intel
®
Xeon
®
processors 5500 series and 5600 series have an Integrated Memory
Controller (IMC). The Intel
®
Server Board S5500BC memory interface supports two DDR3
channels. Each channel consists of 64 data and 8 ECC bits. The IMC provides DDR3 channels
