Intel SC5650BCDP User Manual

Intel
®
RAID Software User’s Guide 101

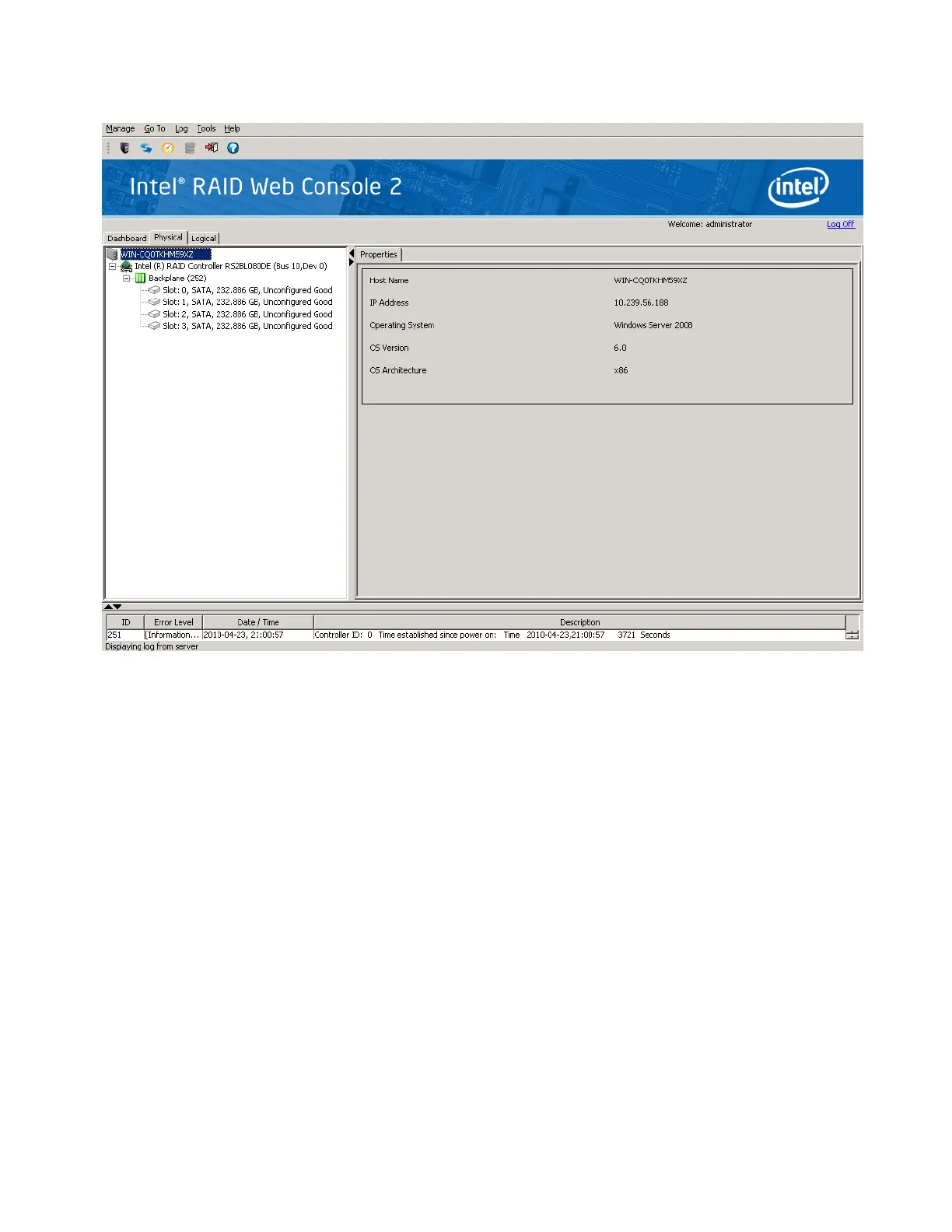

Figure 45. Intel
®
RAID Web Console 2 – Main Screen
The information on the screen in Figure 45 shows the connected devices such as RAID
controllers, physical devices, battery and so on.
The following subsections describe this screen in more detail.
Physical/Virtual View Panel
Depending on the tab selected, the left panel displays either the Physical View or the Virtual
View of the system and the devices in it.
Note: The word ‘Virtual’ maybe displayed as ‘Logical’ depending on different versions
of the utility.
• The Physical View shows the hierarchy of physical devices in the system. At the top of
the hierarchy is the system itself. Controllers are installed in the system, and each
controller has one or more ports. Disk drives and other physical devices are attached to
the ports.
• The Virtual View shows the hierarchy of systems, controllers, virtual drives, and arrays
and disk groups that are defined for the system.
