Intel
®
RAID Software Users Guide 159
Click the Logical view on the main menu screen; Click the Snapshot Base virtual drive
in the left frame; Click Go To -> Virtual Drive -> Disable MegaRAID Recovery on
the menu bar.

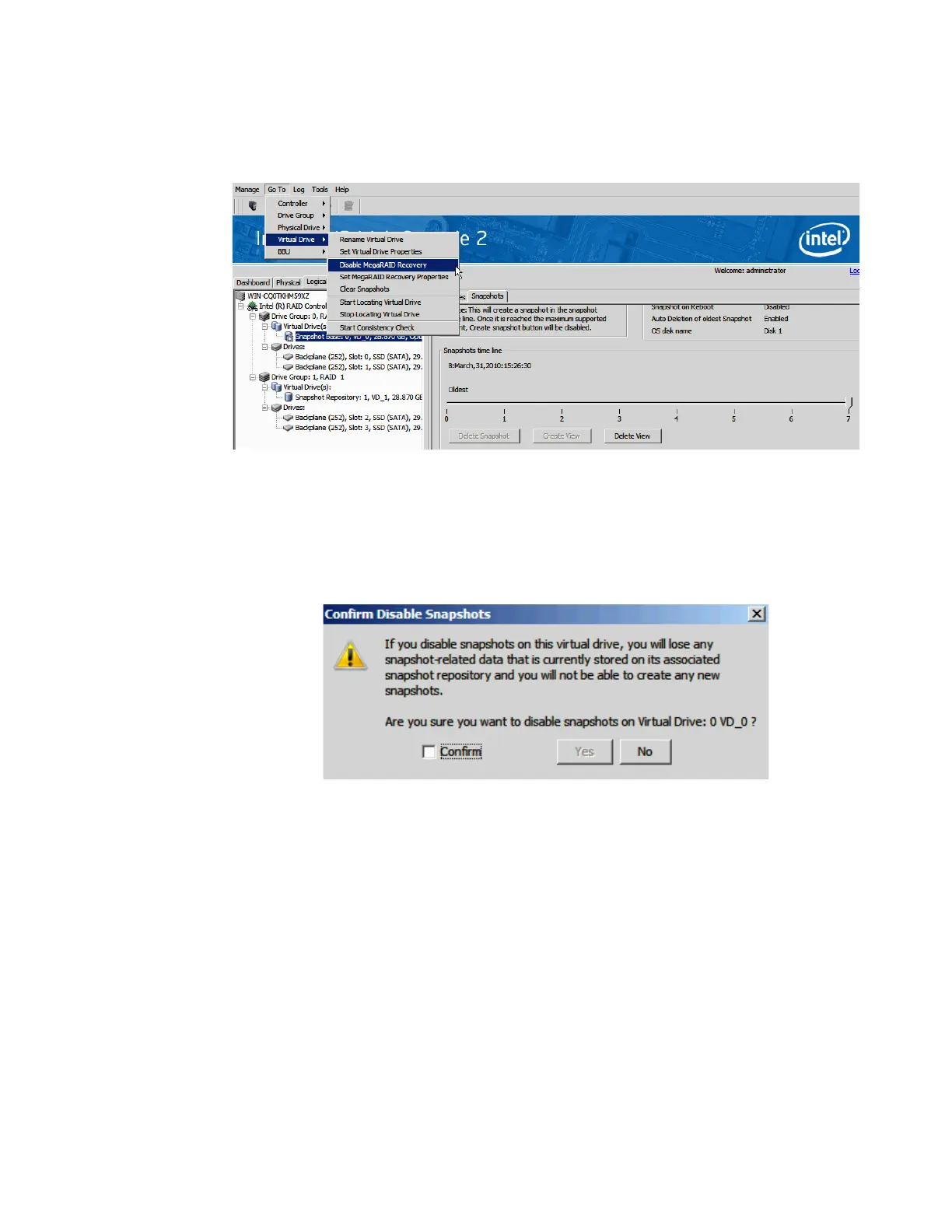

Figure 114. Disable MegaRAID Recovery
22. A confirmation dialog box appears. It warns that any snapshot-related data that is on the
associated Snapshot Repository virtual drives will be lost if you disable snapshots;
Check the box next to the Confirm field and click Ye s . The snapshots are disabled.
Figure 115. Confirm Disable Snapshots
23. After snapshots are successfully created (in step 12, Figure 111), following steps roll
back to a snapshot at a previous Point in Time (PiT).
Note: If the operating system is installed on a Snapshot Base, and snapshots are created
for it and stored in Snapshot Repository, the rolling back steps can help recover
the operating system into a previous status.
24. Reboot the server system and press <Ctrl> + <G> to start the RAID BIOS Console 2
Utility. When you see the screen below, press Start.
