70 Intel
®
RAID Software User’s Guide
Configuration Mismatch Screen
A configuration mismatch occurs when the data in the NVRAM and the hard disk drives are
different. It automatically displays after POST when a configuration mismatch occurs. The
Configuration Mismatch screen allows you to:
• Select Create New Configuration to delete the previous configuration and create a new
configuration.
• Select View Disk Configuration to restore the configuration from the hard disk.
• Select View NVRAM Configuration to restore the configuration from the NVRAM.
Setting Up a RAID Array Using the Configuration Wizard
This section provides detailed steps for using the Configuration Wizard to set up a RAID array.
1. Start the Configuration Wizard by selecting the Configuration Wizard icon on the
Intel
®
RAID BIOS Console 2 main screen.

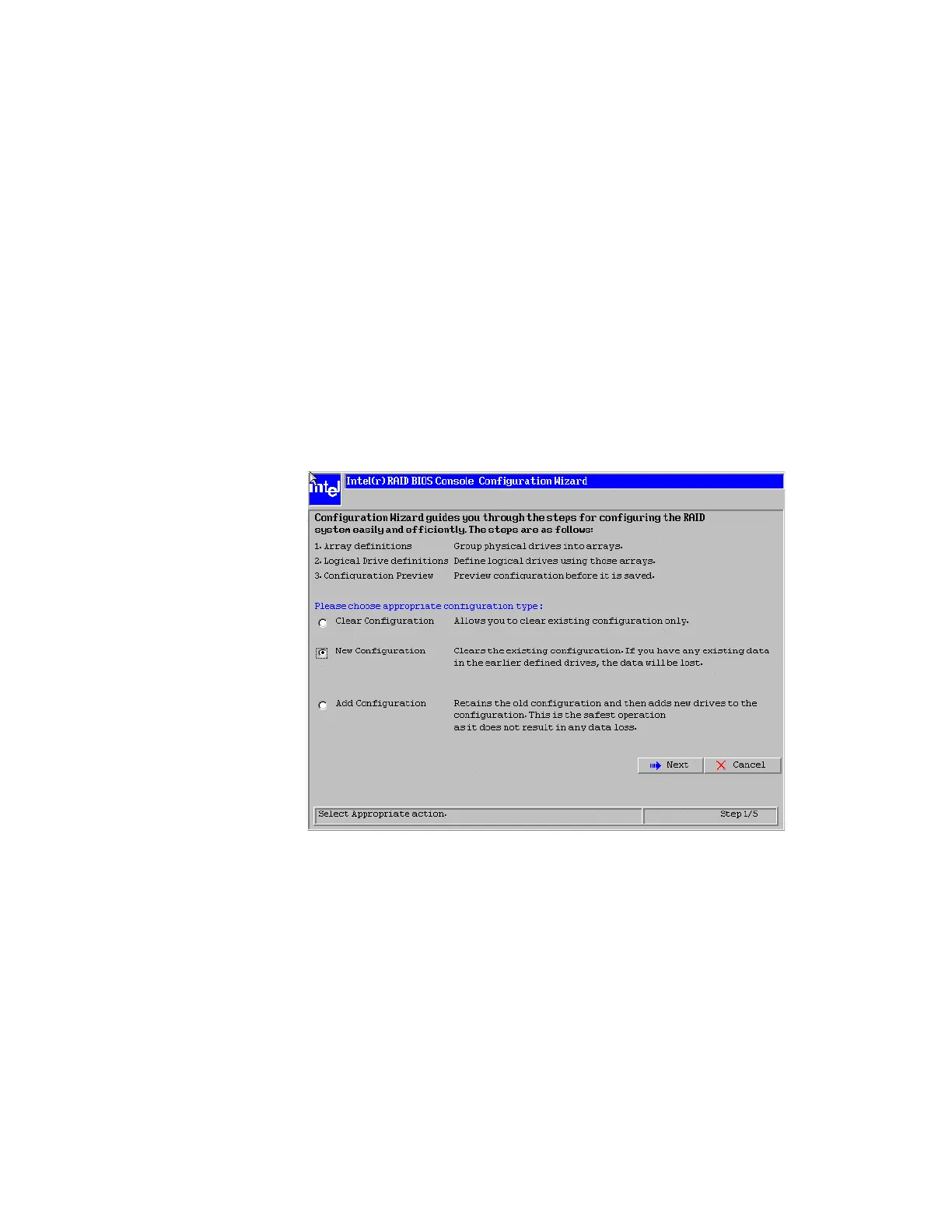

Figure 19. Intel
®
RAID BIOS Console 2 - Configuration Types
2. Select New Configuration and click Next.
3. Then select Virtual Drive Configuration and click Next.
