74 Intel
®
RAID Software User’s Guide
8. On the VD Definition window, select RAID 0, 1, 5, or 6 from the first dropdown box.
9. Enter the virtual drive size in the Select Size box.
This example shows a specific size. Depending on the RAID level you choose , you
may need to manually type in the expected volume size. The possible sizes for some
RAID levels are listed on right panel of the screen for reference.
10. If needed, change the Stripe Size, the policies for Access, Read, Write, IO, and Disk
Cache and decide whether to use background initialization.
For information about setting these parameters, see “Setting Drive Parameters” on
page 82.

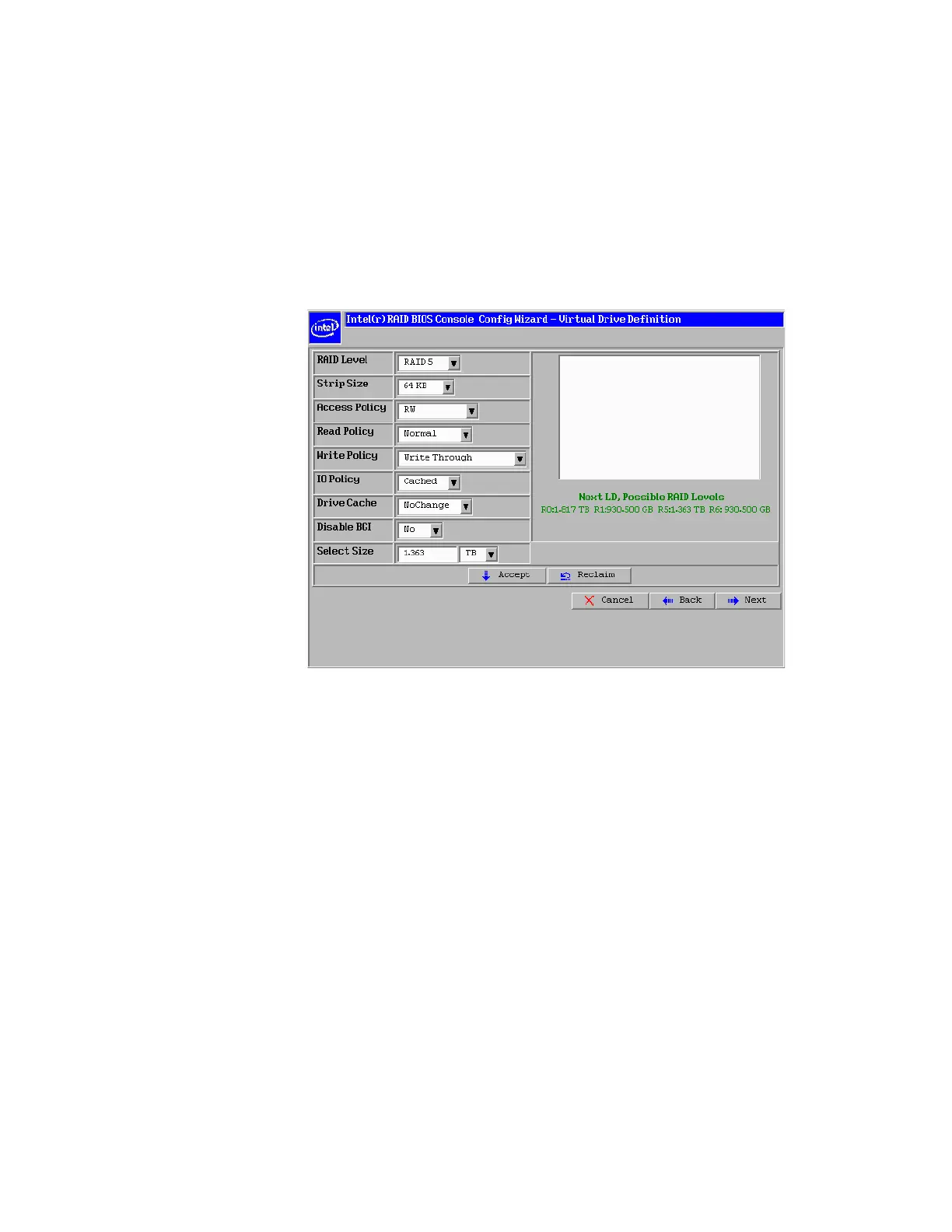

Figure 23. Intel
®
RAID BIOS Console 2 - Set Array Properties
11. Click Accept to accept the changes, or click Reclaim to delete the changes and return to
the previous settings.
The Intel
®
RAID BIOS Console 2 configuration utility displays a preview of the
configuration.
12. Click Accept to save the configuration, or click Back to return to the previous screens
and change the configuration.
