114 Intel
®
RAID Software User’s Guide

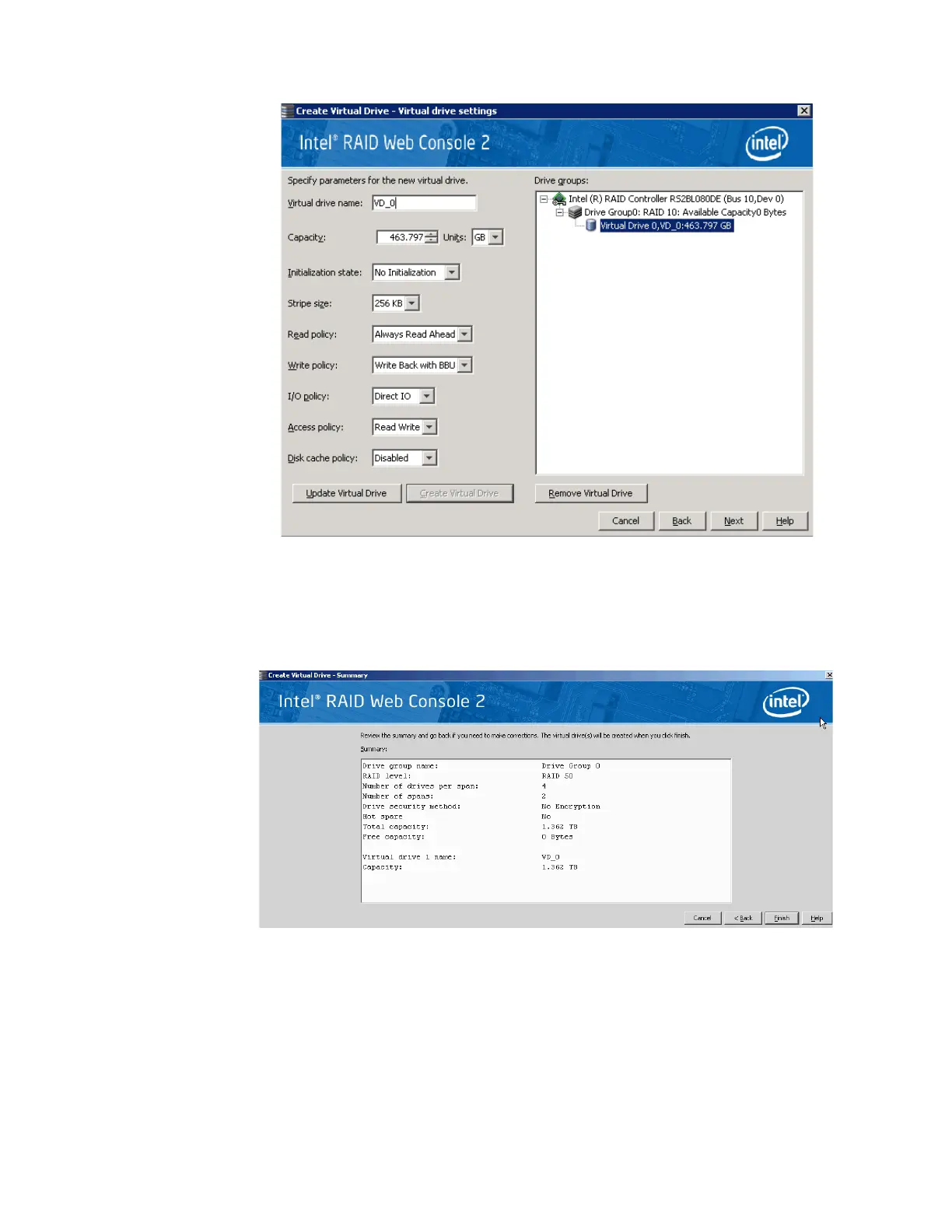

Figure 60. New Virtual Drive 0
6. Click Next.
The Create Virtual Drive - Summary window appears, as shown in Figure 61. This
window shows the selections you made for advanced configuration.
Figure 61. Create Virtual Drive Summary Window
7. Click Back to return to the previous screen to change any selections or click Finish to
accept and complete the configuration.
The new storage configuration will be created and initialized.
Note: If you create a large configuration using drives that are in powersave mode, it
could take several minutes to spin up the drives. A progress bar appears as the
