14 Intel
®
RAID Software User’s Guide

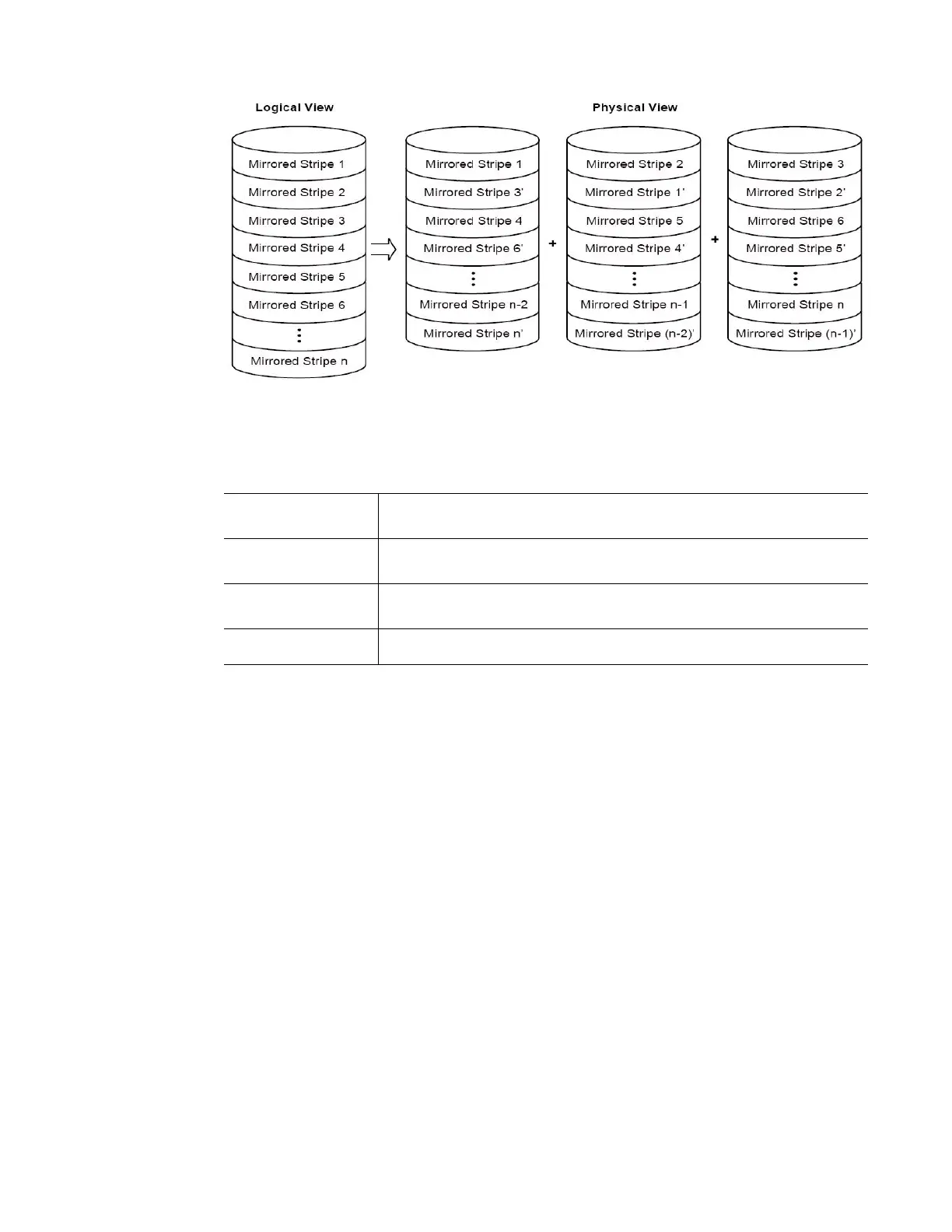

Figure 5. Integrated Mirroring Enhanced with Three Disks
Table 5. RAID 1E Overview
RAID 10 - Combination of RAID 1 and RAID 0
RAID 10 is a combination of RAID 0 and RAID 1. RAID 10 consists of stripes across
mirrored drives. RAID 10 breaks up data into smaller blocks and then mirrors the blocks of
data to each RAID 1 RAID set. Each RAID 1 RAID set then duplicates its data to its other
drive. The size of each block is determined by the stripe size parameter, which is set during the
creation of the RAID set. RAID 10 supports up to eight spans.
Table 6 provides an overview of RAID 10.
Uses
Use RAID 1E for small databases or any other environment that requires
fault tolerance but small capacity.
Strong Points
Provides complete data redundancy. RAID 1E is ideal for any application that
requires fault tolerance and minimal capacity.
Weak Points
Requires twice as many disk drives. Performance is impaired during drive
rebuilds.
Drives
3 to 10
