158 Intel
®
RAID Software User’s Guide
Note: The “View name” can be found in the snapshots screen view in the View Details
information box after a snapshot has been created
15. Enter into “My computer”, and then you can see a new drive.
16. Copy the files in the new drive to the original drive and cover them. Now the system
rolls back to the selected PiT.
17. Following steps delete and clear snapshots.
Note: When deleting single snapshots, you can only delete the oldest snapshot.
18. Follow these steps to delete a single snapshot:
Click the Logical view on the main menu screen; Click the Snapshot Base virtual drive
in the left frame; Click the Snapshots tab in the right frame; Click the oldest snapshot in
the timeline; Click the Delete Snapshot button.
19. Follow these steps to clear (delete) all snapshots:
Click the Logical view on the main menu screen; Click to select the Snapshot Base
virtual drive in the left frame; Click Go To -> Virtual Drive -> Clear Snapshots on the
menu bar (Or right click the Snapshot Base Virtual Drive and click Clear Snapshots); A
confirmation dialog box appears. It warns that any snapshot-related data that is on the
associated Snapshot Repository virtual drives will be lost if you clear the snapshots;
Check the box next to the Confirm field and click Yes and the snapshots will be
cleared.
20. Follow these steps to Set MegaRAID Recovery Properties:
Click the Logical view on the main menu screen; Click the Snapshot Base virtual drive
in the left frame; Click Go To -> Virtual Drive -> Set MegaRAID Recovery
Properties on the menu bar; Check the box to the properties selections you desire and
click OK.

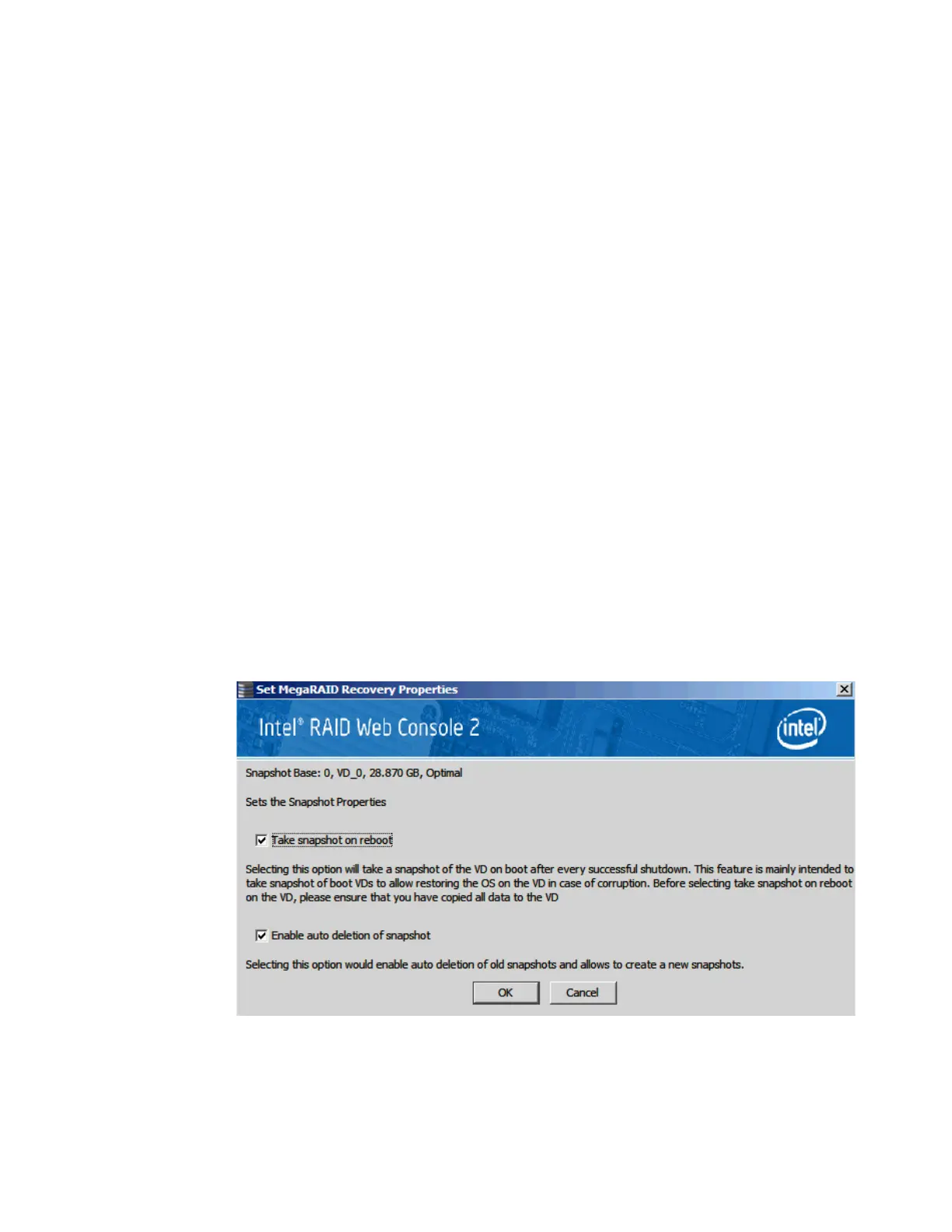

Figure 113. Set MegaRAID Recovery Properties
21. Follow these steps to Disable MegaRAID Recovery:
