Intel
®
RAID Software User’s Guide 157
12. Repeat above step so that additional snapshots can be created. The snapshot you create
appears in the snapshot timeline. The oldest snapshot is on the left end of the timeline.

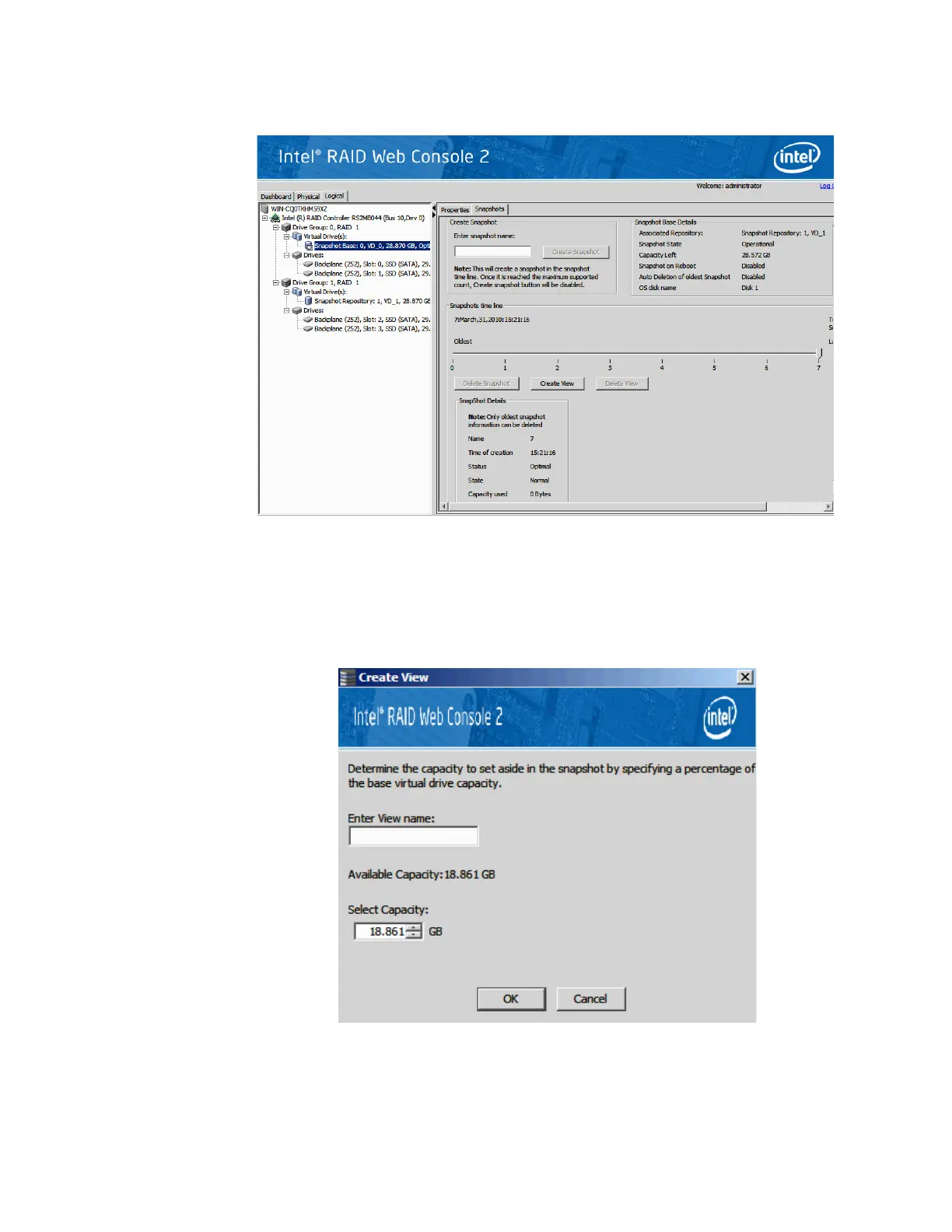

Figure 111. Create Snapshot
13. (Assuming you experience a file deletion or corruption, following steps create
MegaRAID Recovery Views based on snapshots created previously, and can roll back
snapshots.) Click the Logical view on the main menu screen. Click the Snapshot Base
virtual drive in the left frame. Click the Snapshots tab in the right frame (This screen
shows the Snapshot Base details and any existing snapshots). Click Create View.
Figure 112. Create View
14. Enter the name of the view in the Enter View name field and the capacity to set aside
in the snapshot. Click OK.
