Intel SC5650BCDP

80 Intel
®
RAID Software User’s Guide

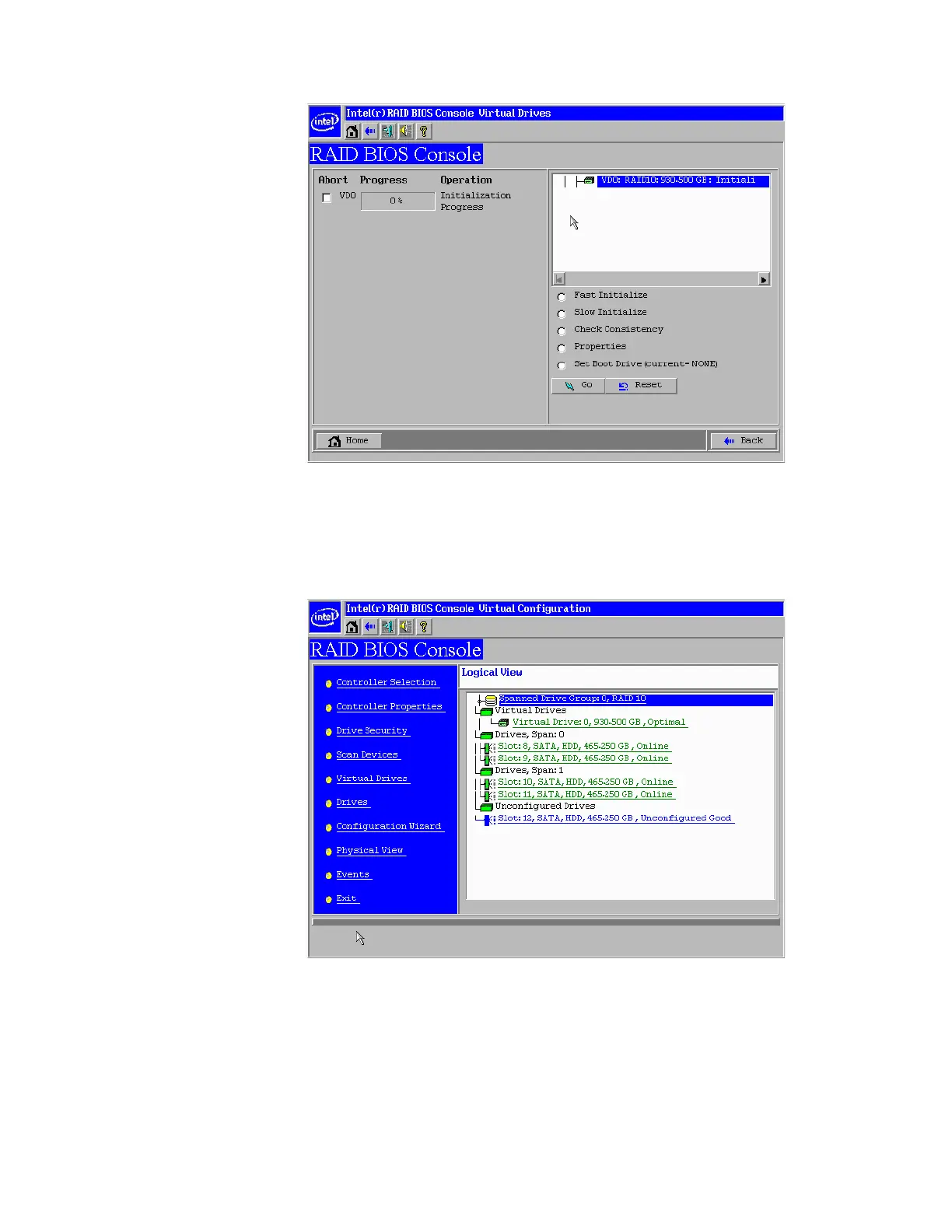

Figure 29. Intel
®
RAID BIOS Console 2 – Initialization Settings
19. Click Home at the Intel
®
RAID BIOS Console 2 screen to return to the main screen.
The RAID 10, RAID 50, or RAID 60 virtual drives are displayed. The following figure
shows the RAID 10 virtual drives.
Figure 30. Intel
®
RAID BIOS Console 2 – RAID 10 Final Screen
20. Under Virtual Drives, select Virtual Drive 0: RAID 10, or select Virtual Drive 0:
RAID 50, or select Virtual Drive 0: RAID 60 to display the drive properties.
