Chapter 1 — Introducing ESim
ESim for the PC4 and PF8 Printer Programmer’s Reference Manual 9
Field Positioning
The printable area of the label forms a grid. The X-axis runs
across the media and the Y-axis runs along the media path. Dots
are the unit of measure for establishing position of the upper left
corner of each field relative to a specified reference point. Text
and bar code fields can be rotated around their insertion points.
Lines, boxes, and graphics cannot be rotated. The entire print
image can be rotated 180º. The illustration below shows
coordinates for the default print direction (ZT).

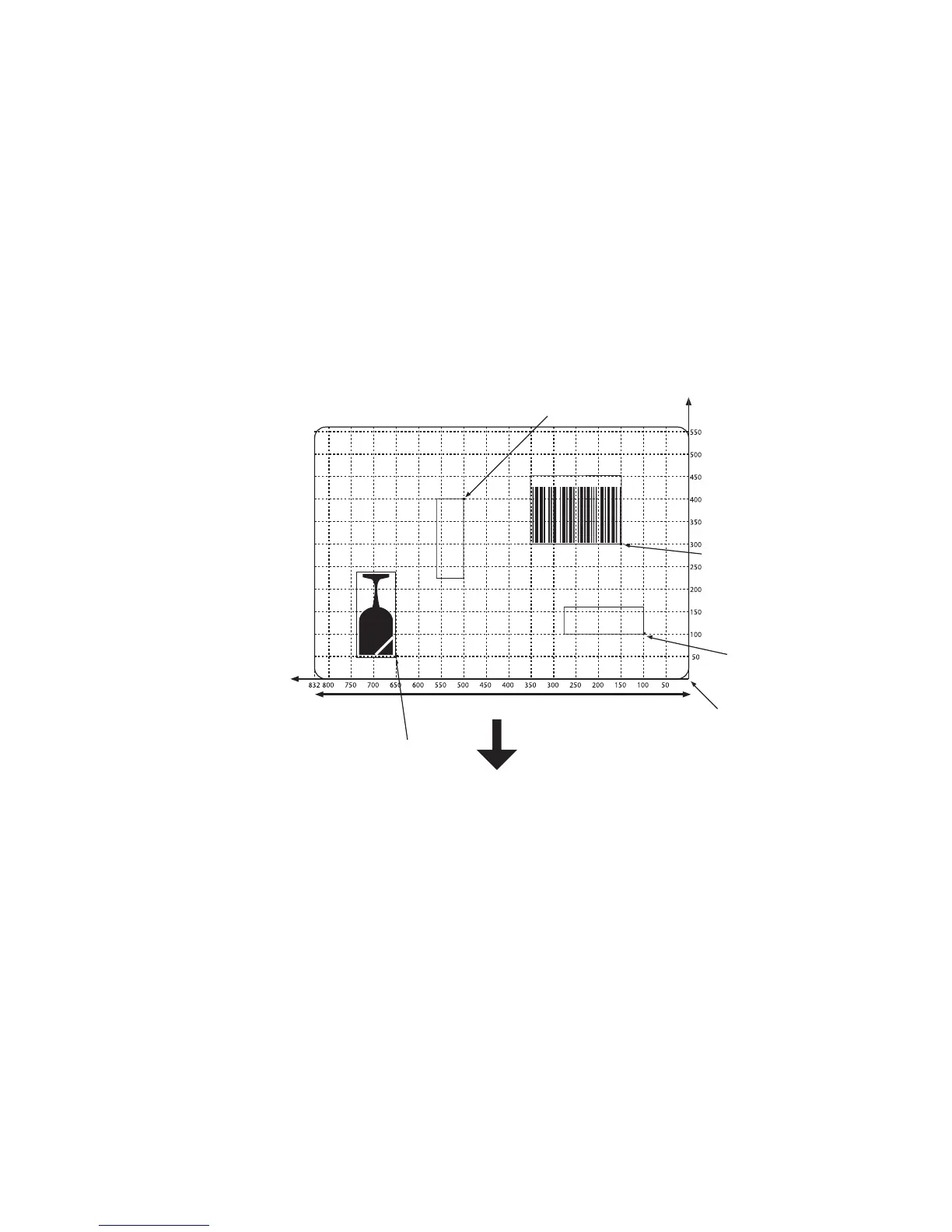

Example of field positioning with a 203.2 dpi (8 dots per mm) printhead.
TEXT
TEXT
CODE 39
Rotated text field
X500, Y400
Y-axis
Bar code field
X150, Y300
Text field
X100, Y100
Reference point
at direction ZT
X000, Y000
Feed direction
Print width 104 mm (832 dots)
Graphic field
X650, Y050
Y-axis

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
