11.12. Annex 12: RFA Primary Target Injection Connection Diagram

IE-UM-00165-005 RFA641 User Manual.odt 109/110

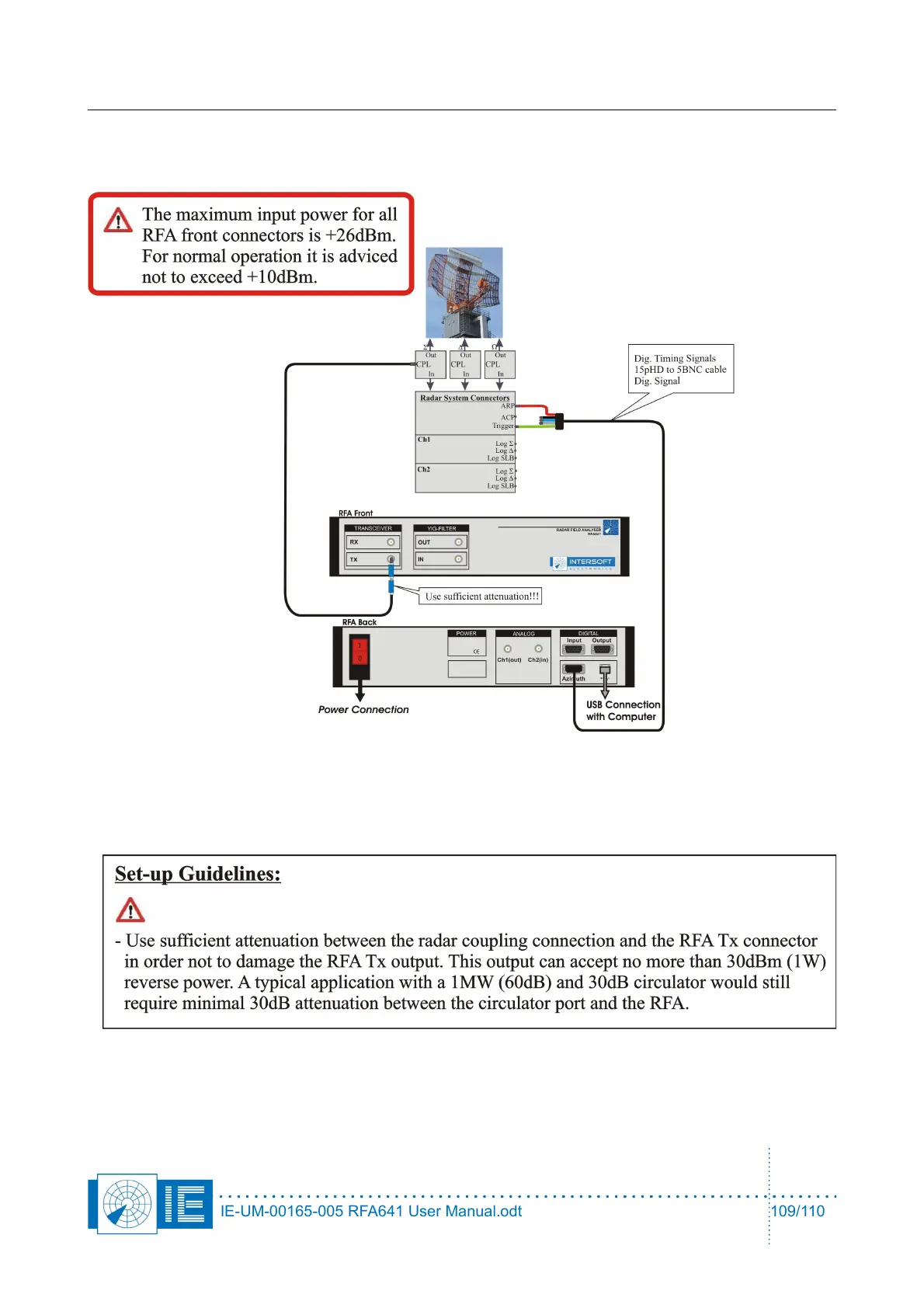

Figure 124: RFA Primary Target Injection Connection Diagram
