Radar Field Analyser - RFA641 Edition Date: 28-Feb-18

1.3. Hardware Description

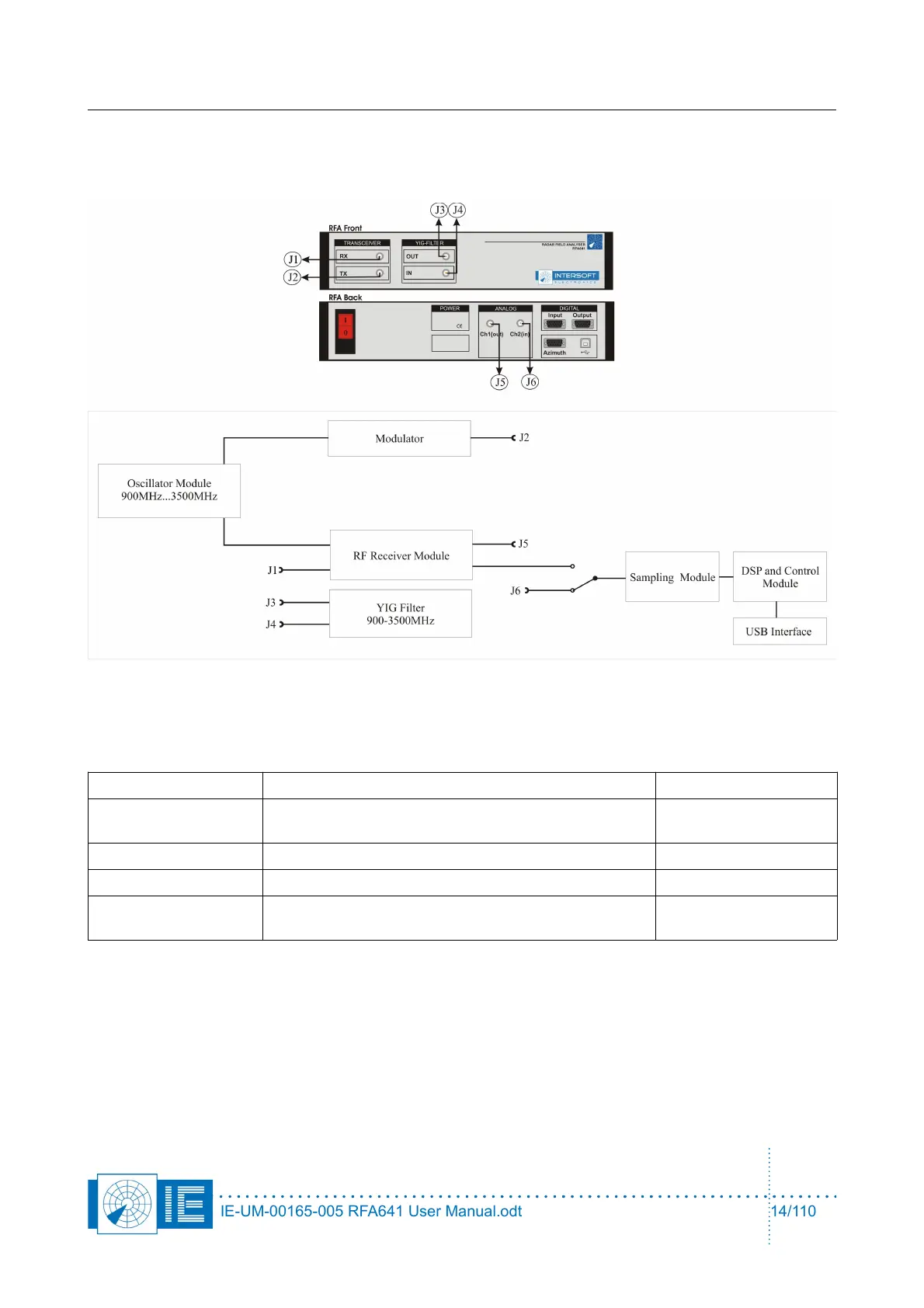

1.3.1. Block Diagram

1.3.2. Connectors and Specifications

Table 1: Interfaces

Name Specification Connector Type

Analog Ch1(out): video output from receiver log amplifier;

Ch2(in): video input to acquisition system

2x BNC

Azimuth TTL input of ACP, ARP, trigger DB15HD female

Rf Rx, Tx; 50Ohm 2x BNC

USB USB2, for remote programming and high speed data

throughput, 480Mbit/s transfer rate

USB

IE-UM-00165-005 RFA641 User Manual.odt 14/110

Figure 1: Block Diagram
