Radar Field Analyser - RFA641 Edition Date: 28-Feb-18
7. OUT BEAM INTERFERENCE GENERATOR (FRUIT)
7.1. Theory
The generation of FRUIT can be performed by the RES28x and the RFA641. The RFA Interference Tool is
intended for generation of out beam FRUIT and/or CW interference scenarios. The RES Interference tool is
intended for generation of in beam FRUIT and/or CW interference scenarios in case where 3 RES channels
for target injection are sufficient. This section explains the RFA Interference Tool
All tools have an easy to use identical MMI to enter the interference specifications. After compiling, the
scenario is downloaded to the Radar Field Analyser (RFA641) for injecting the interference signals in the RF
section of the radar.
7.2. Getting Started

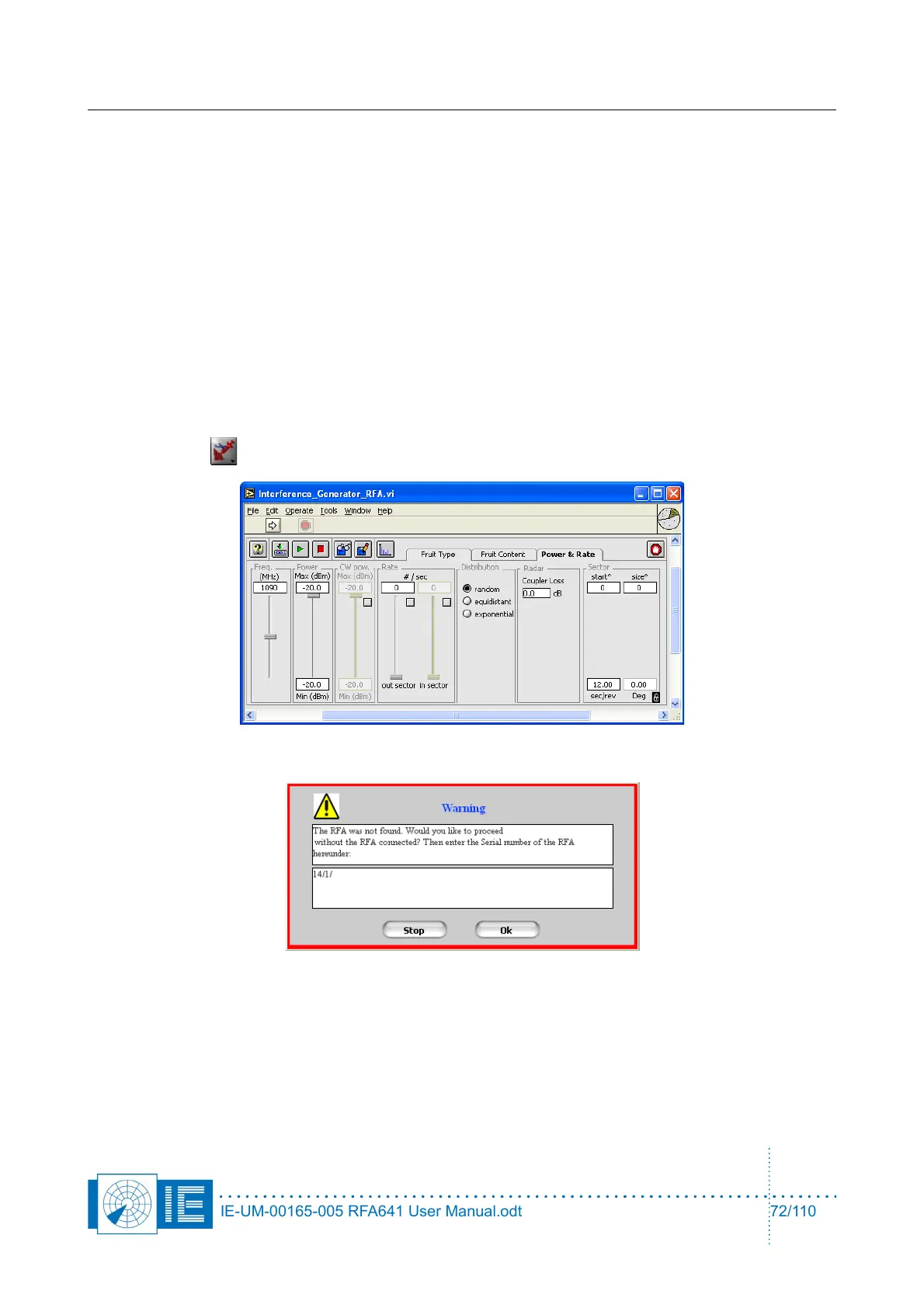

The Out-beam Interference Generator (RFA) can be loaded from the RASS-S Toolbox using the Scenario
Generation SSR button.
When you run the RFA fruit generator and no equipment is connected, you will see a warning message:
Filling in the serial number allows you to perform the scenario generation without the equipment being
connected.
Set-up the RFA641 as shown in Annex 9: Out-beam Interference Generation Connection Diagram.
IE-UM-00165-005 RFA641 User Manual.odt 72/110
