Using MinPad
4
Using MinPad
The MinPad is a simple interface used to display and control data input and
output (Figure 4-1).

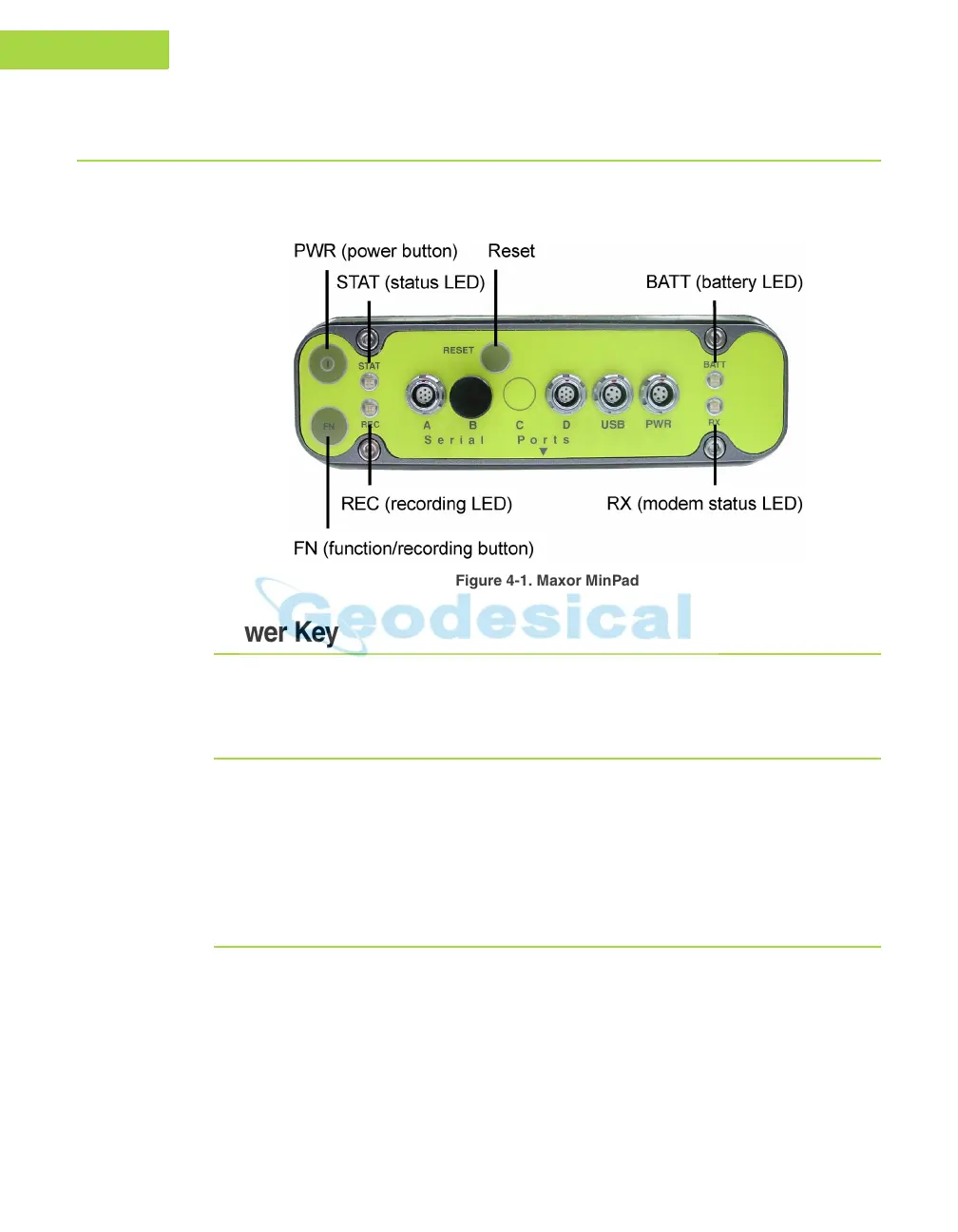

Figure 4-1. Maxor MinPad
Power Key
Pressing the power key turns the receiver on and off.
Status LED
• When the receiver is on and no satellites are tracked, the STAT LED
will blink red.
• When satellites are tracked, the STAT LED will produce one blink for
each tracked satellite (green for GPS, orange for GLONASS).
Reset Key
Pressing the reset key for about one second causes:
• a hard reset of the receiver.
• the receiver to leave Zero Power Mode and return to Normal
Mode.
