SETUP AND MEASURING
Maxor Receiver Setup
1. Attach the antenna to a tripod or bipod and center it over the point at
which data will be collected.
2. Measure the antenna height. Antennas have two types of measurements:
• Vertical - measured from the marker to the
antenna reference point
(ARP) located on the bottom of the antenna at the base
of the mounting
threads.
• Slant - measured from the marker to the lower edge of the antenna's
slan
t height measure mark (SHMM).
MarAnt+ antenna offsets are shown in Figure 3-2; Offset measurements for
this antenna is given in Table 3-2.

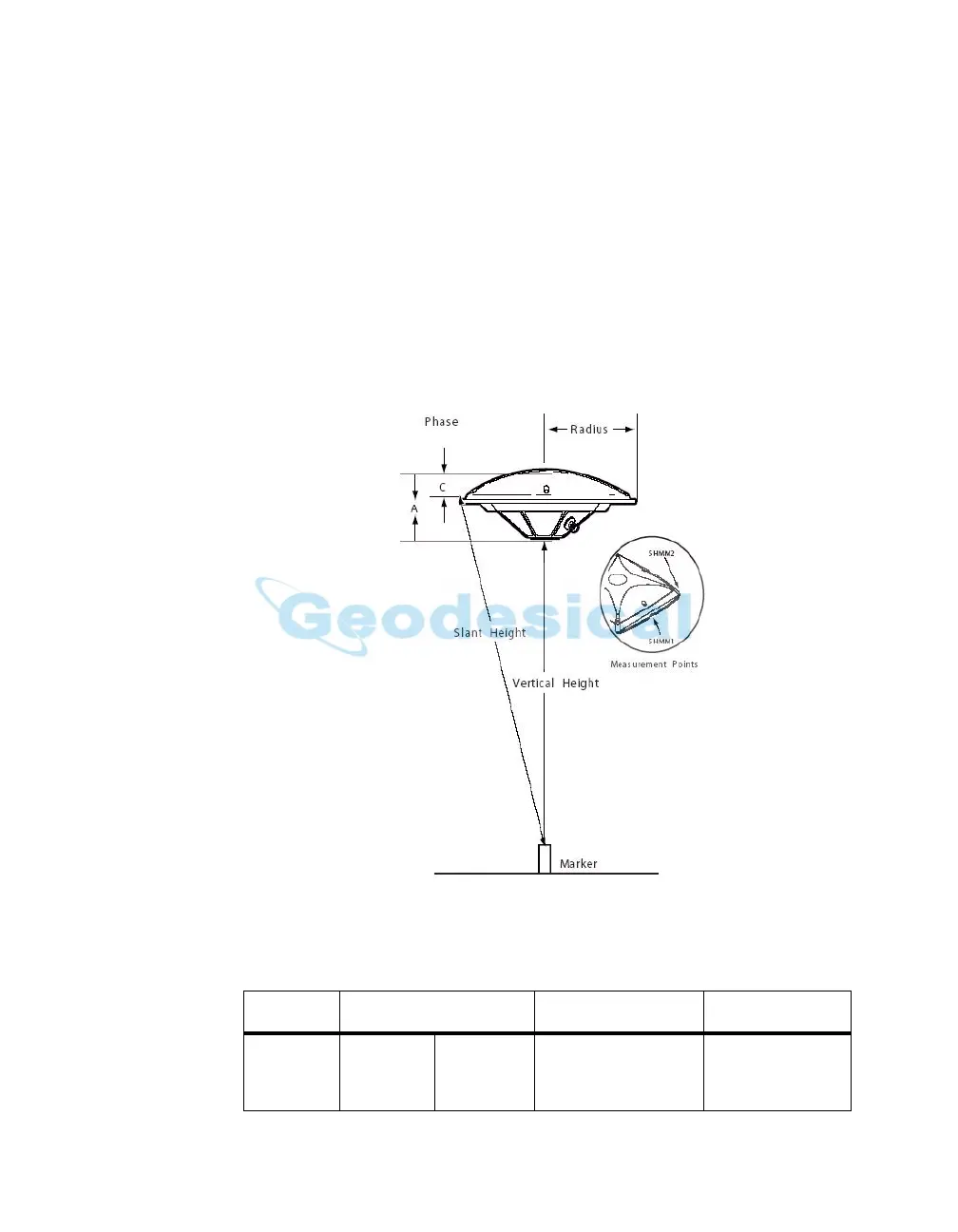

Figure 3-2. MarAnt+ Antenna Offset Measurements
Table 3-2. Antenna Offset Measurements
Antenna Radius A, Vertical Offset C, Slant Offset
MarAnt+ SHMM1
69 mm
0.226 ft
SHMM2
89.7 mm
0.294 ft
54.3 mm (L1)
60.5 mm (L2)
26.8 mm (L1)
33.0 mm (L2)
