B-14 Maxor Operator’s Manual www.javad.com
APPENDIX
Receiver Specifications
B
USB Connector
The USB connector is a sealed receptacle, 5 pin, ODU p/n G80F1C-
T05QF00-0000 (Figure B-3).

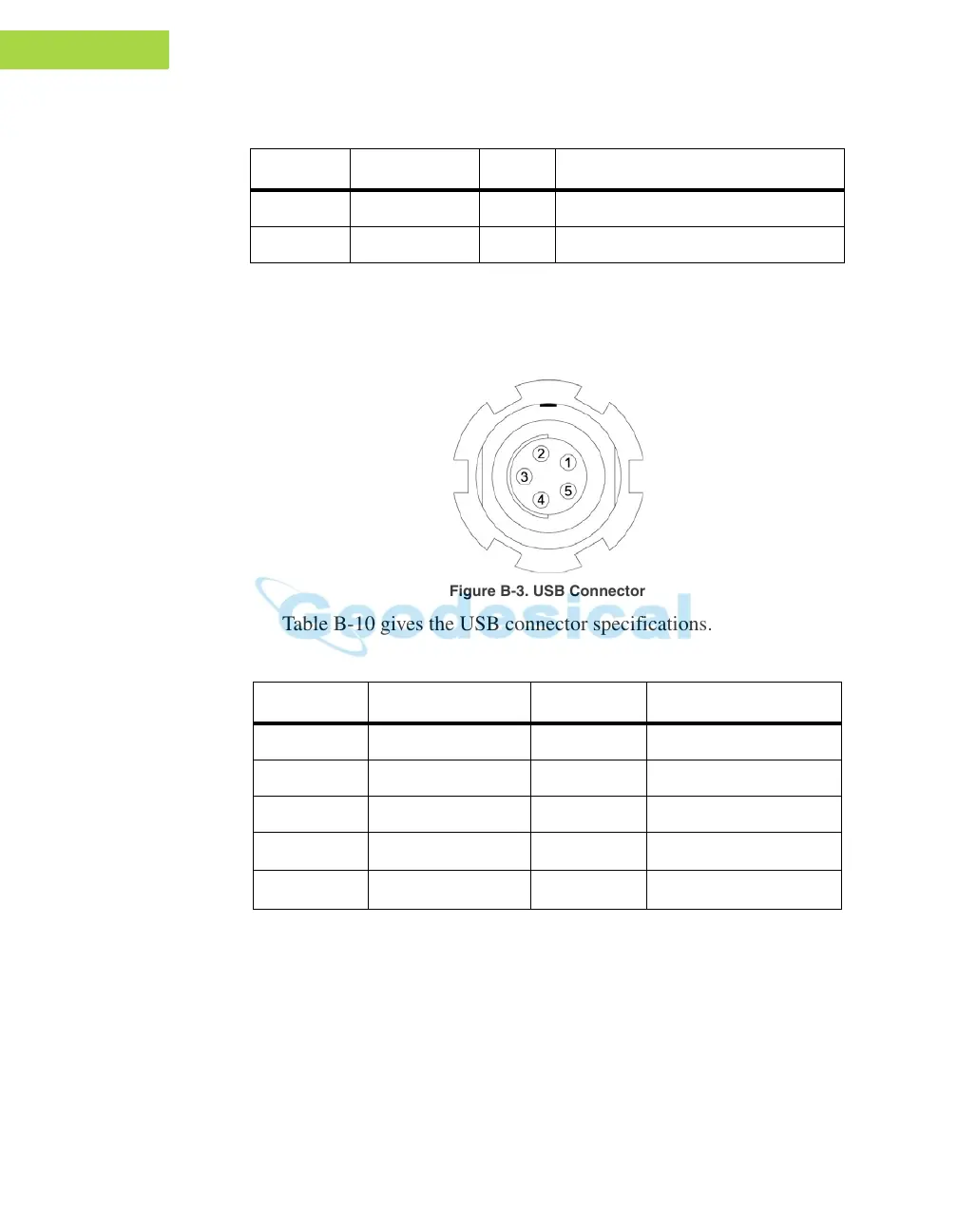

Figure B-3. USB Connector
Table B-10 gives the USB connector specifications.
6 TXD O Transmit data
7 Not used
Table B-10.
Number Signal Name Dir Details
1 Not used
2 USB_PWR P Bus power
3 GND - Ground
4 USB D+ I/O Data plus
5 USB D- I/O Data minus
Table B-9.
Number Signal Name Dir Details
