B-12 Maxor Operator’s Manual www.javad.com
APPENDIX
Receiver Specifications
B
Connector Specifications
This sections lists Maxor connector details.
Radio (Modem) RF Connector
The Pacific Crest PDL (UHF) modem connector type (Table B-6) is a
BNC Bulkhead Jack RF connector with an Applied Engineering
Product p/n of 6501-7051-003.
The GSM modem connector type (Table B-7) is a TNC RF connector.
Power Connector
The power connector (Figure B-1) is a sealed receptacle, 5 pin, ODU p/
n G80F1C-T05QF00-0000.

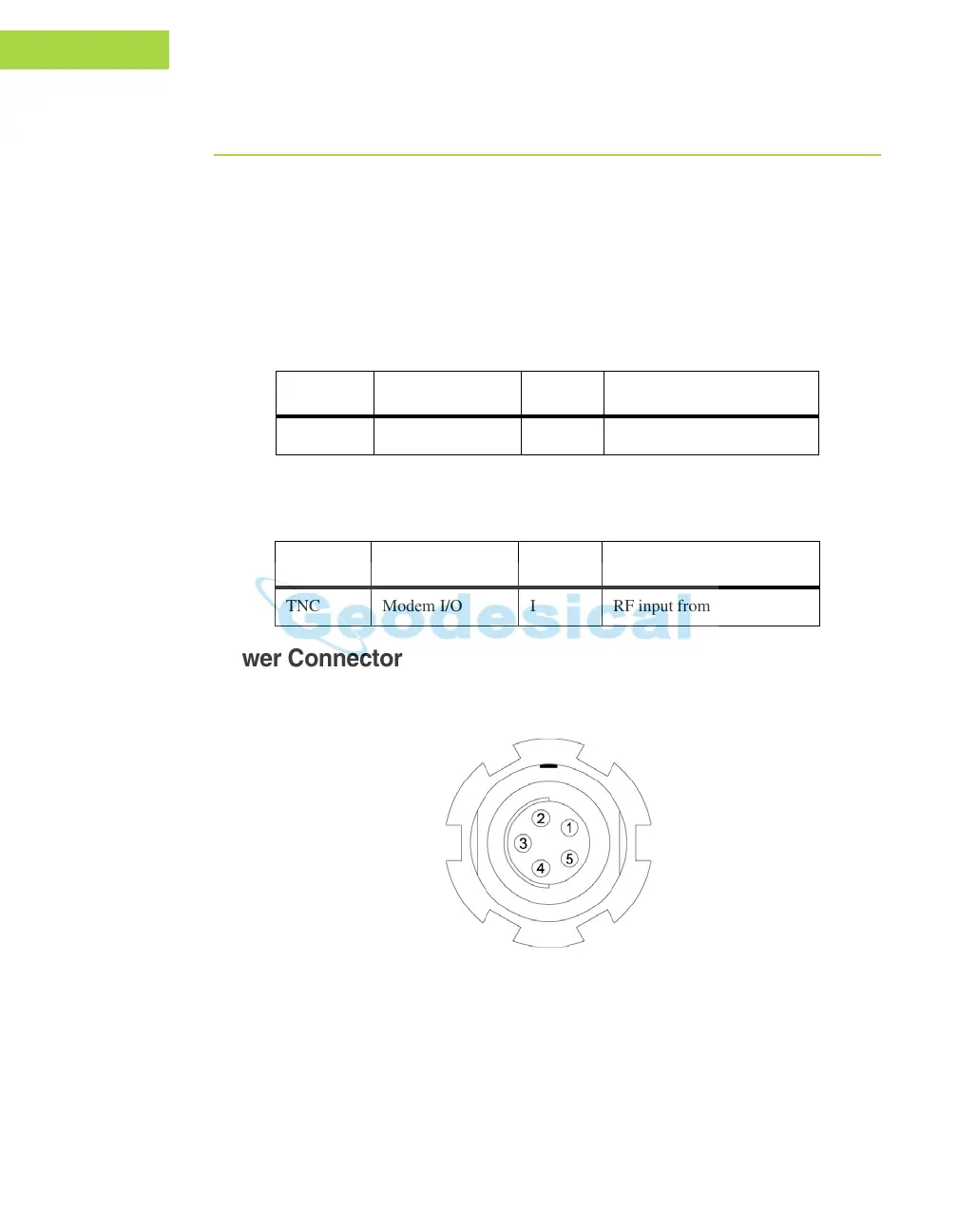

Figure B-1. Power Connector
Table B-6.
Type Signal Name Dir Details
BNC Modem I/O I RF input from PDL antenna
Table B-7.
Type Signal Name Dir Details
TNC Modem I/O I RF input from GSM antenna
