4-24 Maxor Operator’s Manual www.javad.com
OPERATION
Loading New Firmware
4
• powbrd.ldr – the Power board RAM file
Notice:
You must load all three files when loading new firmware.
These files must come from the same firmware package.
1. In FLoader select the Device tab and set the Device
Type as Receiver
(Figure 4-15).

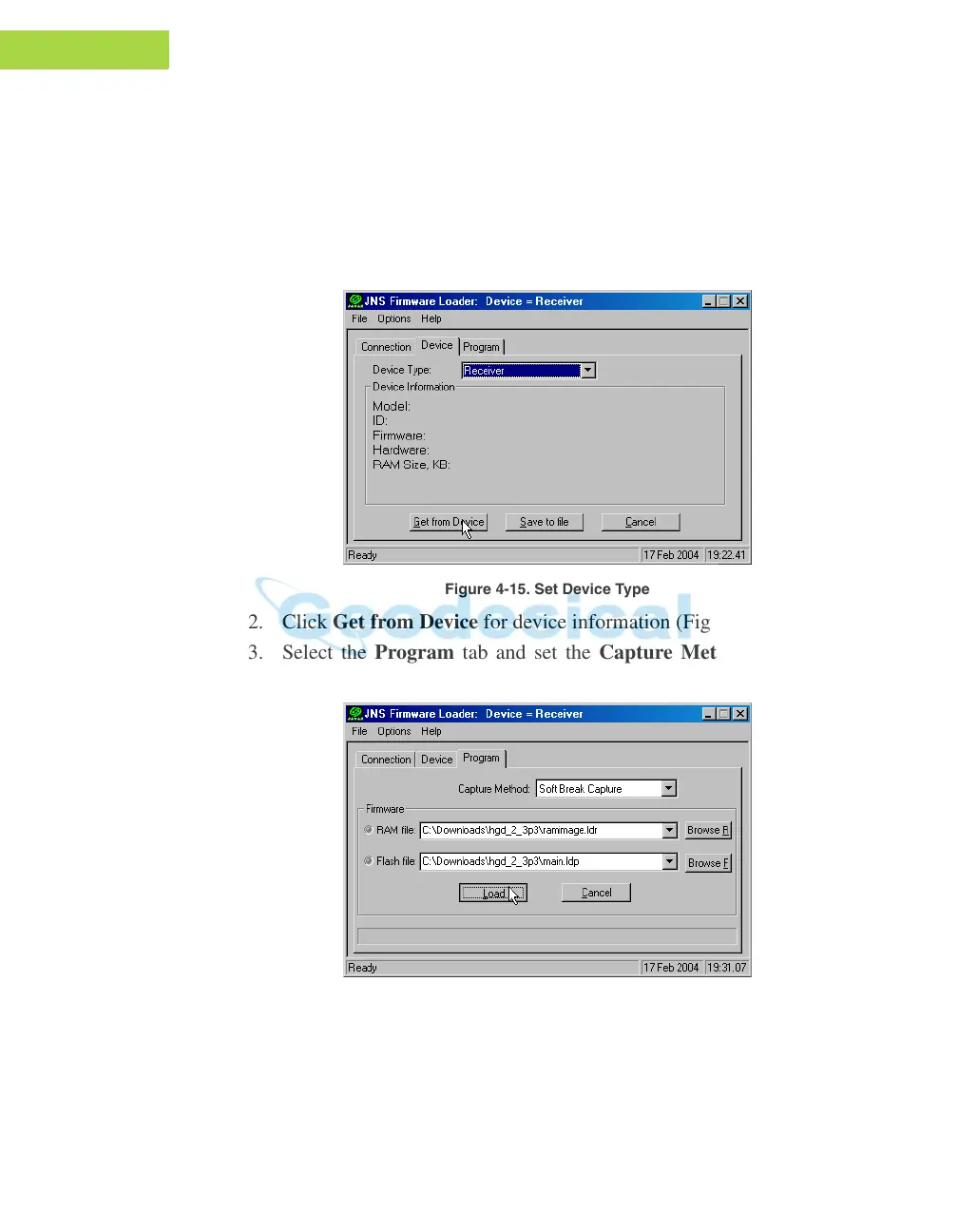

Figure 4-15. Set Device Type
2. Click Get from Device for device information (Figure 4-15).
3. Select the Program tab and set the Cap
ture Method to Soft Break
Capture (recommended) (Figure 4-16).
Figure 4-16. Program Tab Settings
4. Browse for and select the receiver board's RAM file and Flash file
(Figure 4-16).
5. Click Load and wa
it until 100% of the files load into your receiver.
