www.javad.com Maxor Operator’s Manual B-13
APPENDIX
Receiver Specifications
Table B-8 gives power connector specifications.
Serial RS-232C Connector
For ports A and D. The RS232 connectors (Figure B-2) are sealed
receptacle, 7 pin, ODU p/n G80F1C-T07QC00-0000.

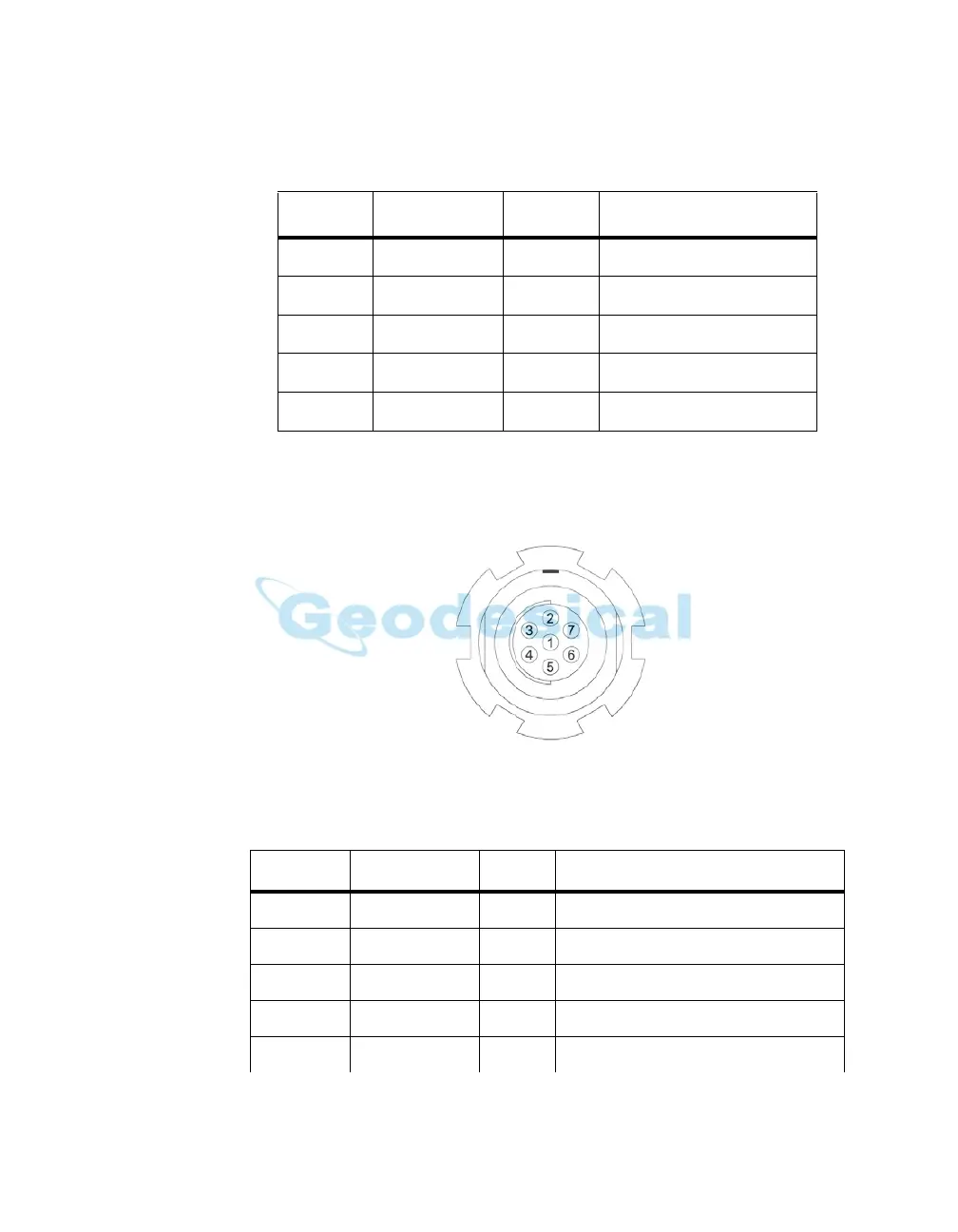

Figure B-2. RS-232C Connector
Table B-9 gives the RS-232C cable connector specifications.
Table B-8.
Number Signal Name Dir Details
1 Power_INP P 6 to 28 volts DC input
2 Power_INP P 6 to 28 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Not used
Table B-9.
Number Signal Name Dir Details
1 Power_OUT P Power Output (supplied voltage)
2 GND - Signal ground
3 CTS I Clear to send
4 RTS O Request to send
5 RXD I Receive data
