www.javad.com Maxor Operator’s Manual 2-35
CONFIGURATION
Radio Configuration
6. Click the Serial Interface tab and select a baud rate for the
modem’s serial port. The same rate must be used for both the
receiver and the modem.
7. Click Apply, then cli
ck on File and select Disconnect. If you want
to close the program, click File->Exit.
8. Start PCView and set up the receiver to run as an RTK Base
Station. For ho
w to set up an RTK Base using PCView, refere to
“Setting up an RTK Rover” on page 3-18 and PCView Software
Manu
al.
Warning:
When finished configuring the radio modem, always
disconnect from Modem-JNS before exiting to prevent
conflicts with serial port management.
Configuring a Base Station’s internal GSM/GPRS integrated
with 2W UHF transceiver with Modem-JNS
1. Repeat steps 1-4 described on page 2-27.
2. Click the GSM tab (Figure 2-27).

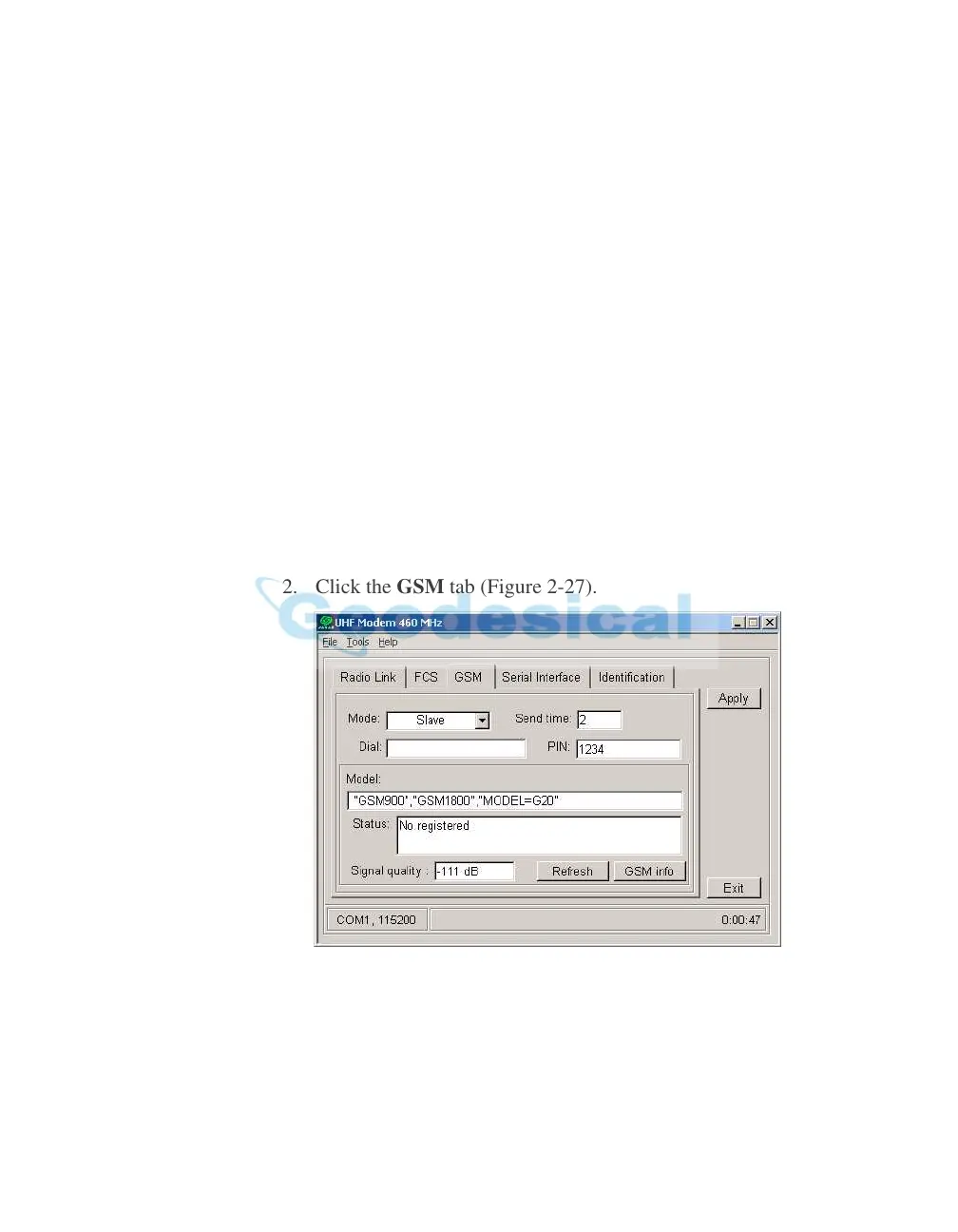

Figure 2-27. GSM Tab
3. In the Mode control, select Slave.
4. In the PIN field, enter a
Personal Identification Number (PIN) if
required.
5. For the base station, leave the Dial fiel
d blank.
