• PWR – The power input port to which an external power source (+6
to +28 V DC) is connected and where the unit is charged.
• Slant height measure mark (SHMM)
Back panel
Figure 1-5 shows the back panel components.
Notice:
Standard Maxor configuration does not contain any back
panel connectors.

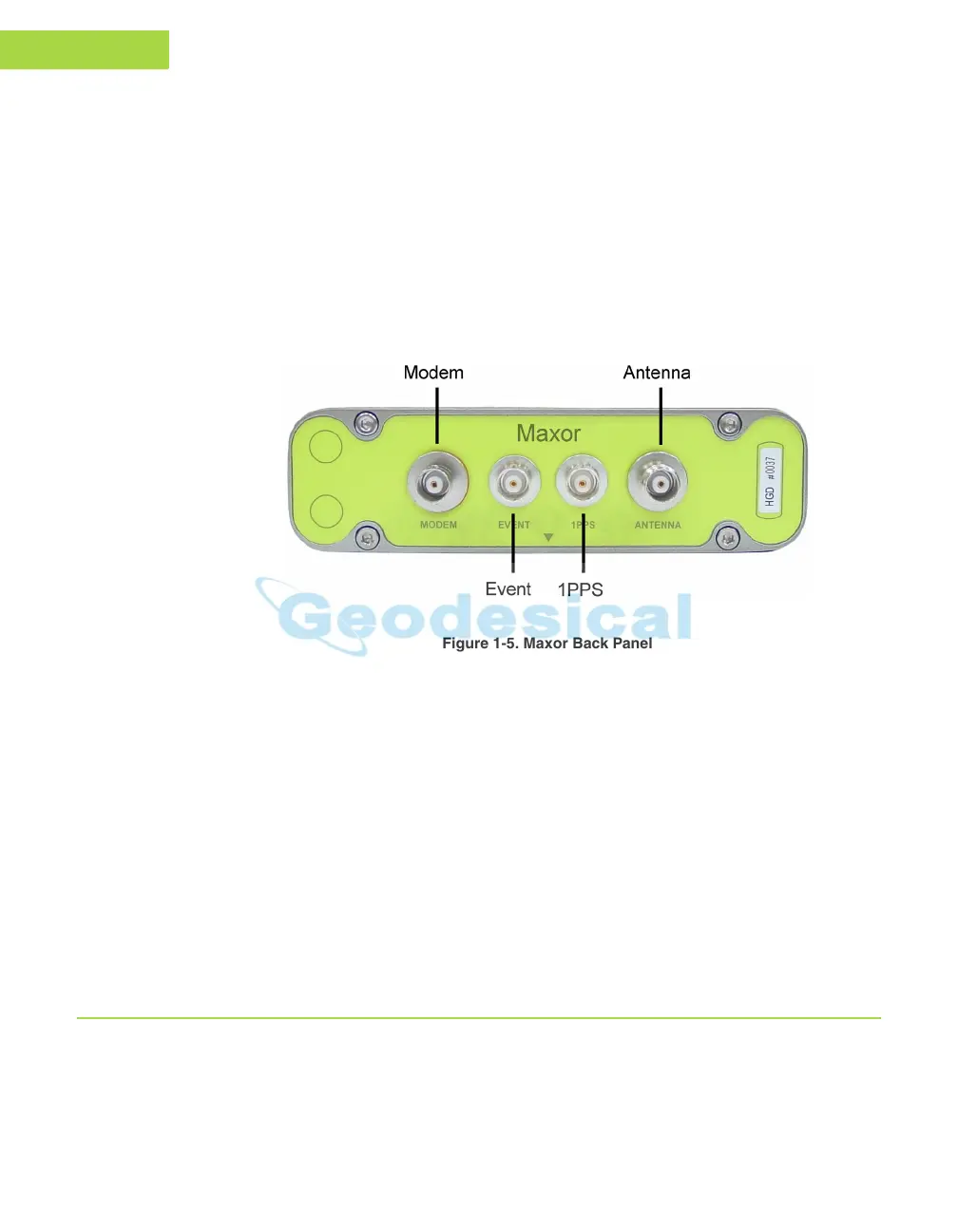

Figure 1-5. Maxor Back Panel
• Modem (optional) – Modem antenna connector used for internal RF
connection. This is a BNC female connector for UHF modems, or a
TNC female connector for GSM modems.
• Event (optional) – The BNC event mark
er connec
tor; provides
event input synchronized with a specified reference time.
• 1PPS (optional) – The BNC connector for 1 pulse-per-second
(1PPS); generates 1PPS
signals with programmable reference time,
period, and offset; synchronized to a specified reference time.
• Antenna (optional) – External GPS/GLONASS antenna connector.
• Receiver serial number.
• Slant height measure mark (SHMM).
Option Authorization File (OAF)
Javad Navigation Systems issues an Option Authorization File (OAF) to enable
the specific options that customers purchase. An Option Authorization File
