Javad Maxor - Bottom Panel; Maxor Radome

1-12 Maxor Operator’s Manual www.javad.com
INTRODUCTION
Getting to Know Your Maxor
1

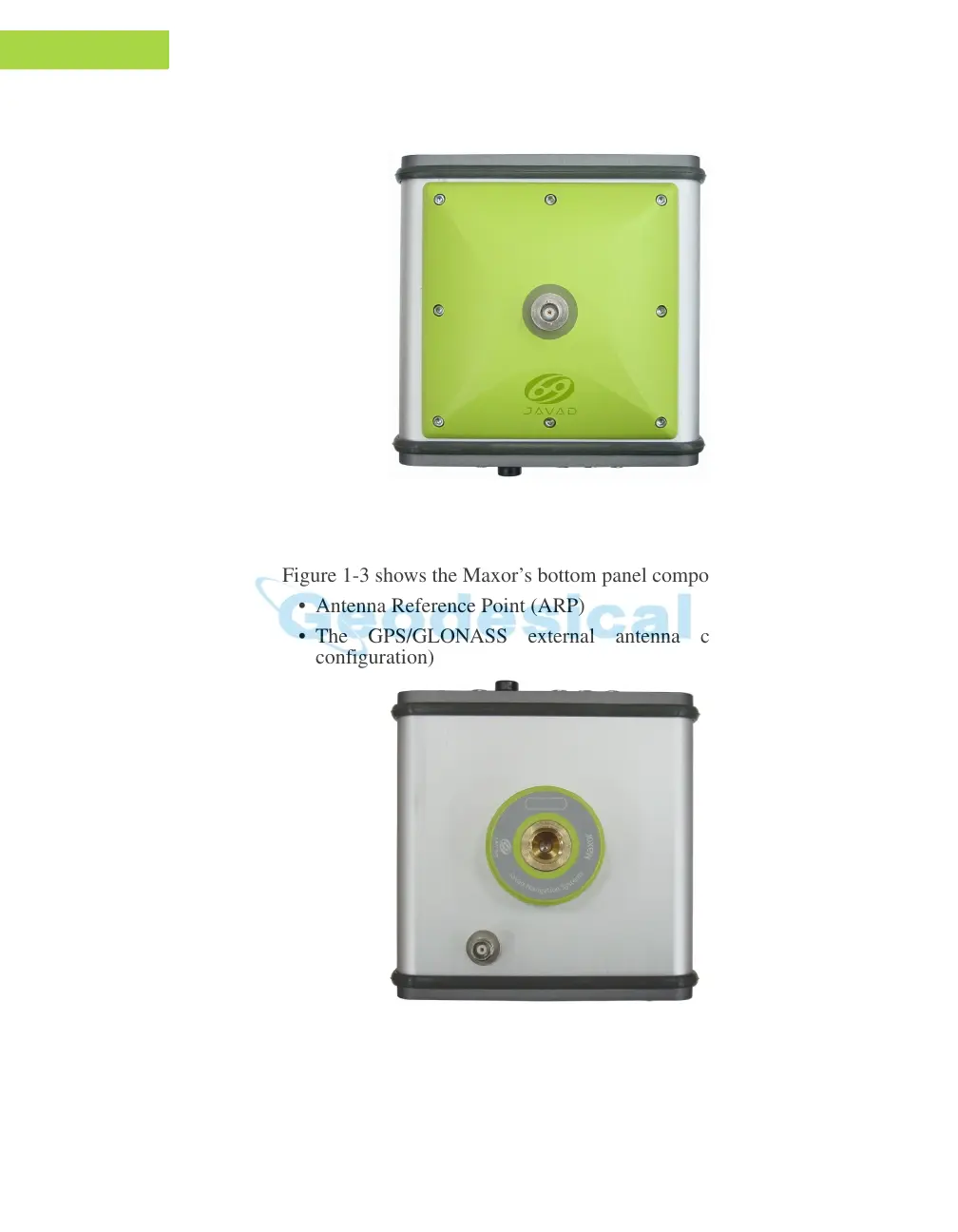

Figure 1-2. Maxor Radome
Bottom Panel
Figure 1-3 shows the Maxor’s bottom panel components.
• Antenna Reference Point (ARP)
• The GPS/GLONASS external antenna connector (standard
configuration)
Figure 1-3. Maxor Bottom Panel
