4-12 Maxor Operator’s Manual www.javad.com
OPERATION
Deleting Files
4
Deleting Files
Use the following steps to delete files from your receiver.
1. Connect your receiver and computer. See “Connecting the Maxor and a
Computer” on page 2-9 for this procedure.
2. Start PCView.
3. On the Connection Parameters dialog box, enable RTS/CTS handshaking
(See Figure 4-2 on page 4-9.)
4. Click File->File Manager (See Figure 4-3 on page 4-9.)
5. On the Download files tab, select the file(s) you want to delete (Figure 4-7).
To select multiple files, hold down the shift key and click o
n nonsequential
files to select several files at once; or hold down the Ctrl key and click on
individual files.

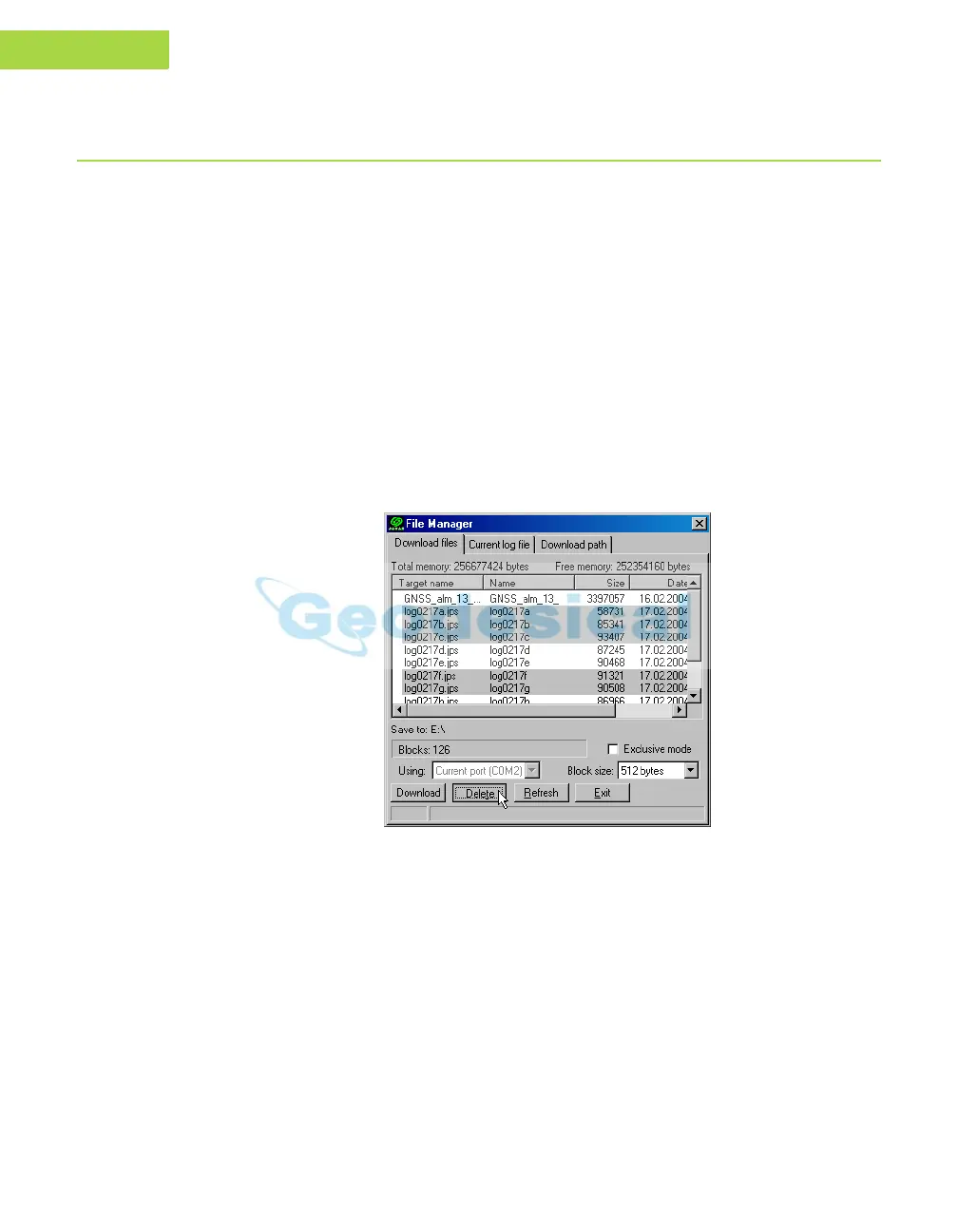

Figure 4-7. Delete Files
6. Click Delete (Figure 4-7).
7. Click Yes at the delete files confirmation dialog box. The selected files are
deleted.
8. Click Exit on the File Manager screen.
9. Continue with other operations. Or, click File->Disconnect, then File->Exit
to quit PCView.
