JOHNSON CONTROLS
34
FORM 100.50-NOM12
ISSUE DATE: 04/02/2019
SECTION 2 – INSTALLATION
SINGLE-POINT POWER SUPPLY WIRING

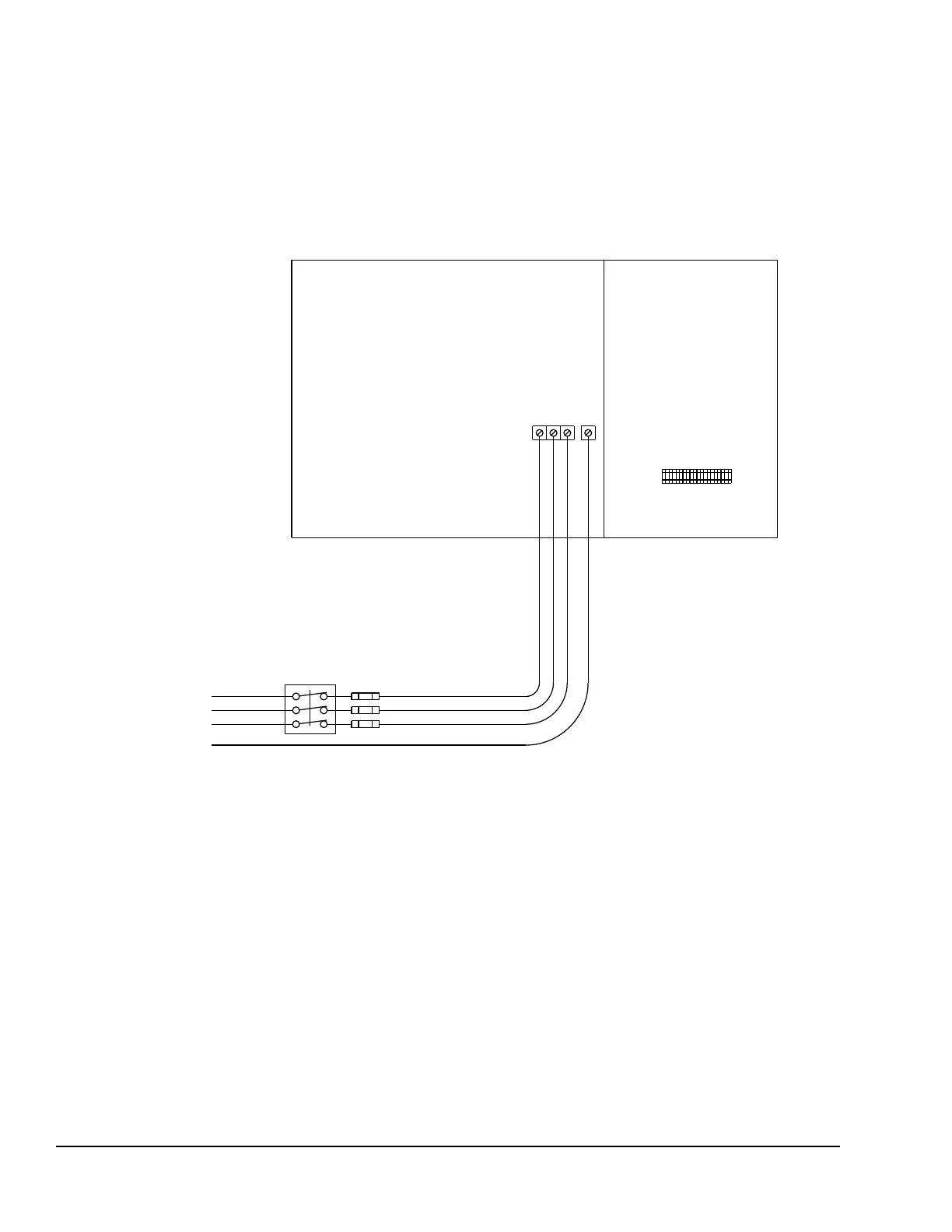

FIGURE 9 - SINGLE-POINT POWER SUPPLY WIRING
NOTES:
1. All eld wiring must be provided through a eld-supplied fused disconnect switch to the unit terminals (or optional molded disconnect
switch).
2. All electrical wiring must be made in accordance with all N.E.C. and/or local code requirements.
3. Minimum Circuit Ampacity (MCA) is based on U.L. Standard 1995, Section 36.14 (N.E.C. Section 440-34).
4. Maximum Dual Element Fuse size is based on U.L. Standard 1995, Section 36.15 (N.E.C. Section 440-22).
5. Use copper conductors only.
6. On units with an optional disconnect switch, the supplied disconnect switch is a “Disconnecting Means” as dened in the N.E.C. Section
100, and is intended for isolating the unit from the available power supply to perform maintenance and troubleshooting. This disconnect
switch is not intended to be a Load Break Device.
LD06414A
CTB1
P ower S ide
F ield P ower
S upply
E arth
G round
Line 3
Line 2
Line 1
F ield C ontrol
Wiring Terminal
B lock
C ontrol S ide
1L1 1L2 1L3 G ND
E lectrical / C ontrols B ox
TB 1
