SECTION 5 – SEQUENCE OF OPERATION
(Default = 55.0 °F)
(Default = 65.0
° F)
Supply Fan Speed
%
Active SAT
Setpoint
Increasing Supply Fan Speed
SAT LOW SETPOINT
SAT HIGH SETPOINT
FAN SPEED
FOR HIGH SAT
FAN SPEED
FOR LOW SAT
LD10308A

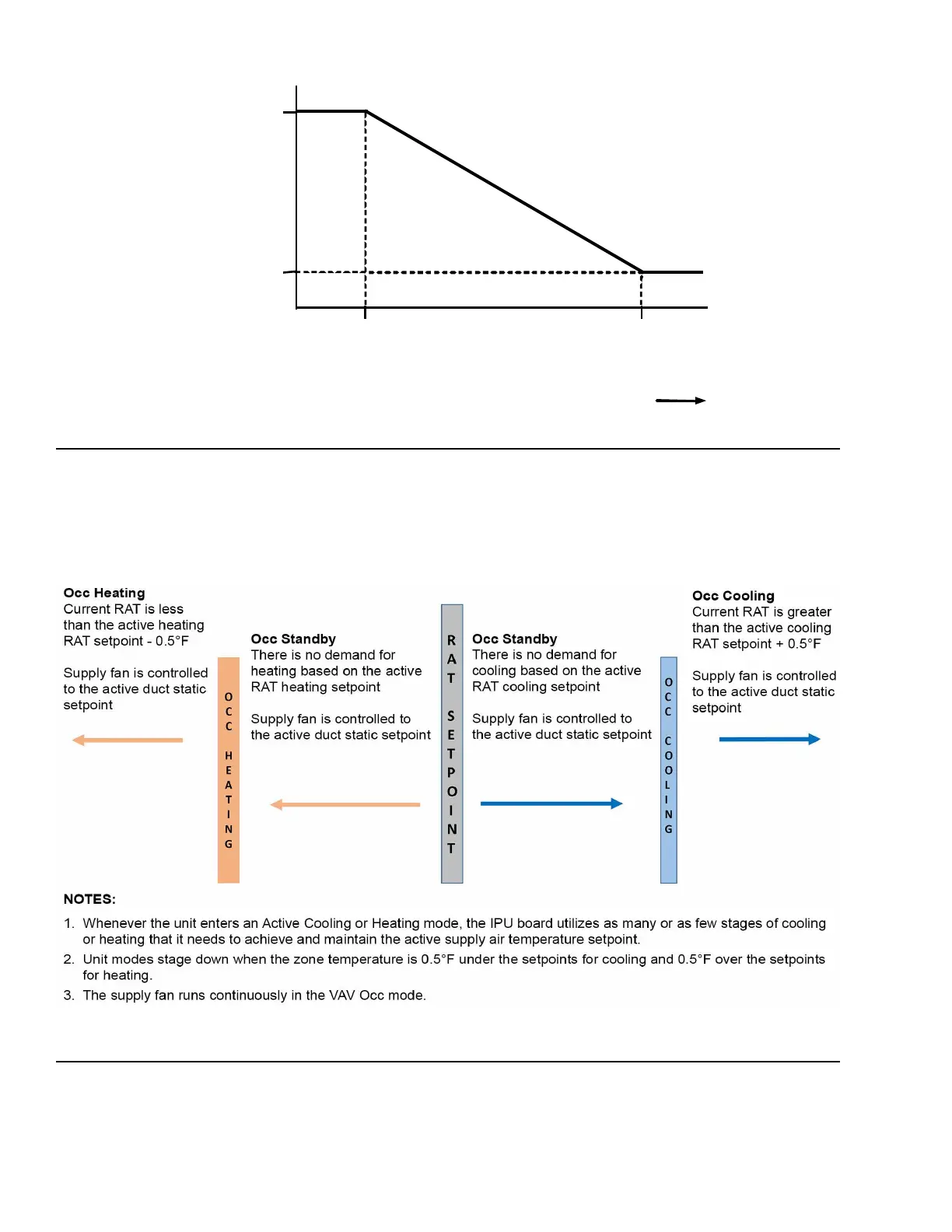

FIGURE 31 - ACTIVE SAT SETPOINT VERSUS SUPPLY FAN SPEED
LD28116
FIGURE 32 - VARIABLE AIR VOLUME (VAV) — OCCUPIED
