JOHNSON CONTROLS
77
SECTION 5 – SEQUENCE OF OPERATION
FORM 100.50-NOM12
ISSUE DATE: 04/02/2019
5
LD28119

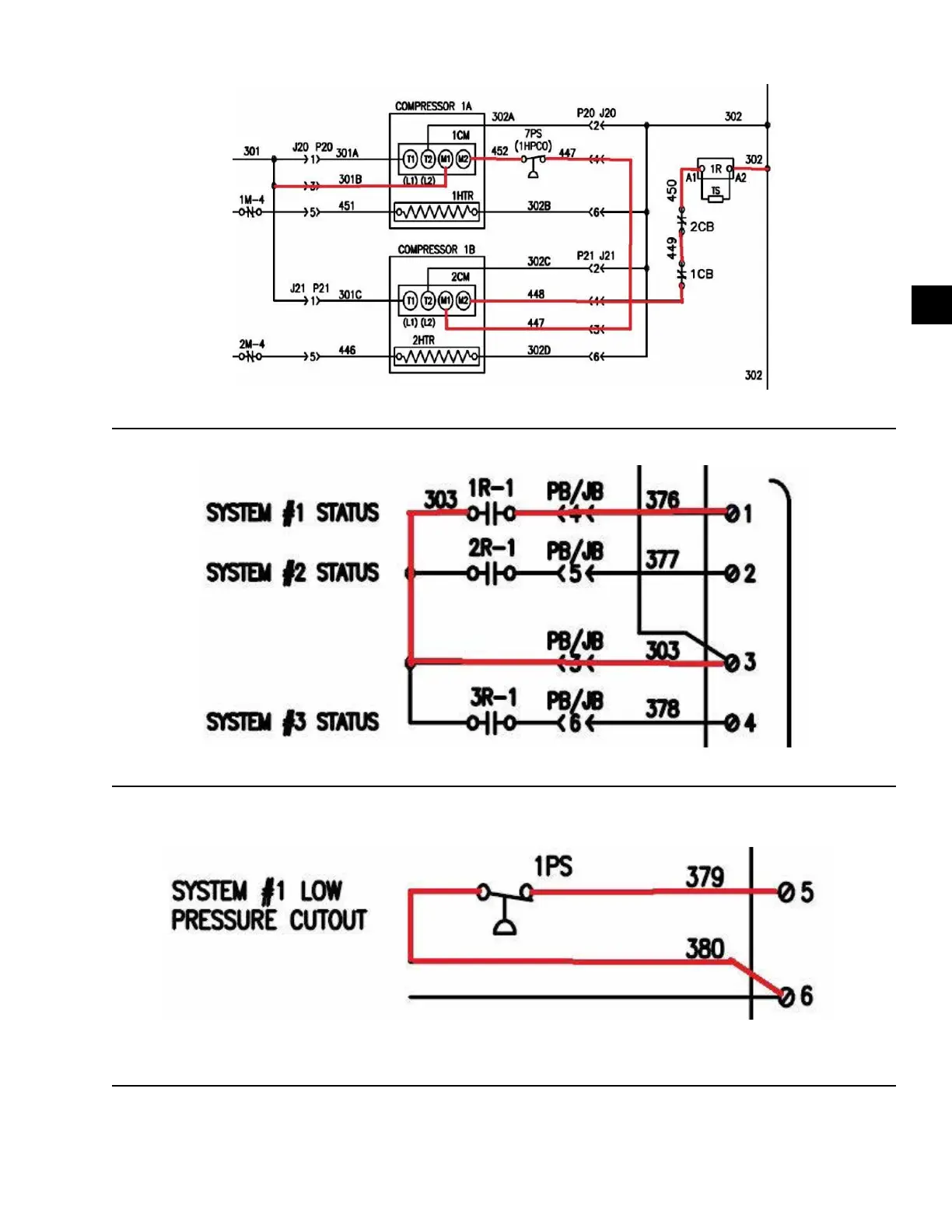

FIGURE 35 - COMPRESSOR SAFETY CHAIN — WITH COMPRESSOR PROTECTION MODULE
LD28120
FIGURE 36 - COMPRESSOR SYSTEM STATUS INPUT TO I/O BOARD
LD28121
FIGURE 37 - LOW PRESSURE CUTOUT (LPCO) SWITCH WIRING
