Table 40: JNP10K-PWR-AC2 Power Cable Specifications for 20-A Input (continued)
Graphic
Spare Juniper
Model NumberPlug StandardsCord Set RatingLocale
CBL-JNP-SG4-SZCEI 23-5016 A, 250 VACSwitzerland
JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input
The JNP10K-PWR-AC2 HVAC or HVDC power supplies requires a high current cable assembly when set
for 30-A input. One end of the cable has an Anderson APP-400 connector, the other end of the cable is
bare wire. See Figure 41 on page 110 and Table 41 on page 111. These cables are separately orderable and
are not shipped automatically with JNP10K-PWR-AC2 orders. An example of the right-angle cable and
connector is shown in Figure 43 on page 111.
For connection to AC systems, Juniper provides a cable with either a NEMA 30-A connector
(Figure 41 on page 110) or an IEC 330P6W connector (Figure 42 on page 110).

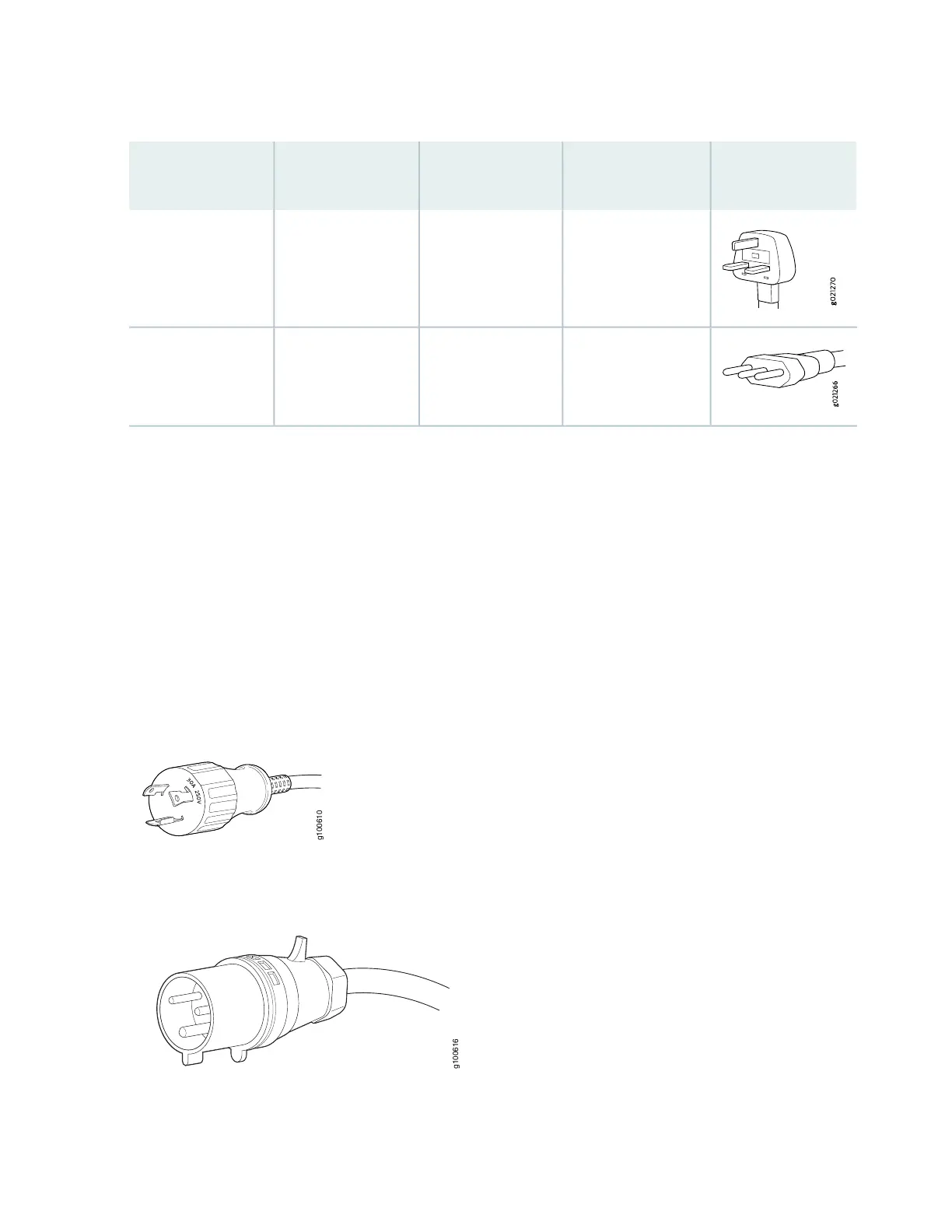

Figure 41: NEMA 30-A Connector
g100610
Figure 42: IEC 330P6W Connector
g100616
110
