Locating the Serial Number ID Labels on Fan Trays and Fan Tray Controllers
The two fan trays and their associated fan tray controllers installed in an MX10016 are field-replaceable
units (FRUs). For each FRU, you must remove the FRU from the router chassis to see the FRU serial number
ID label.
•
Fan tray–The serial number ID label is located on the inside of the fan tray at the base of the fan tray
control board. See Figure 122 on page 261.

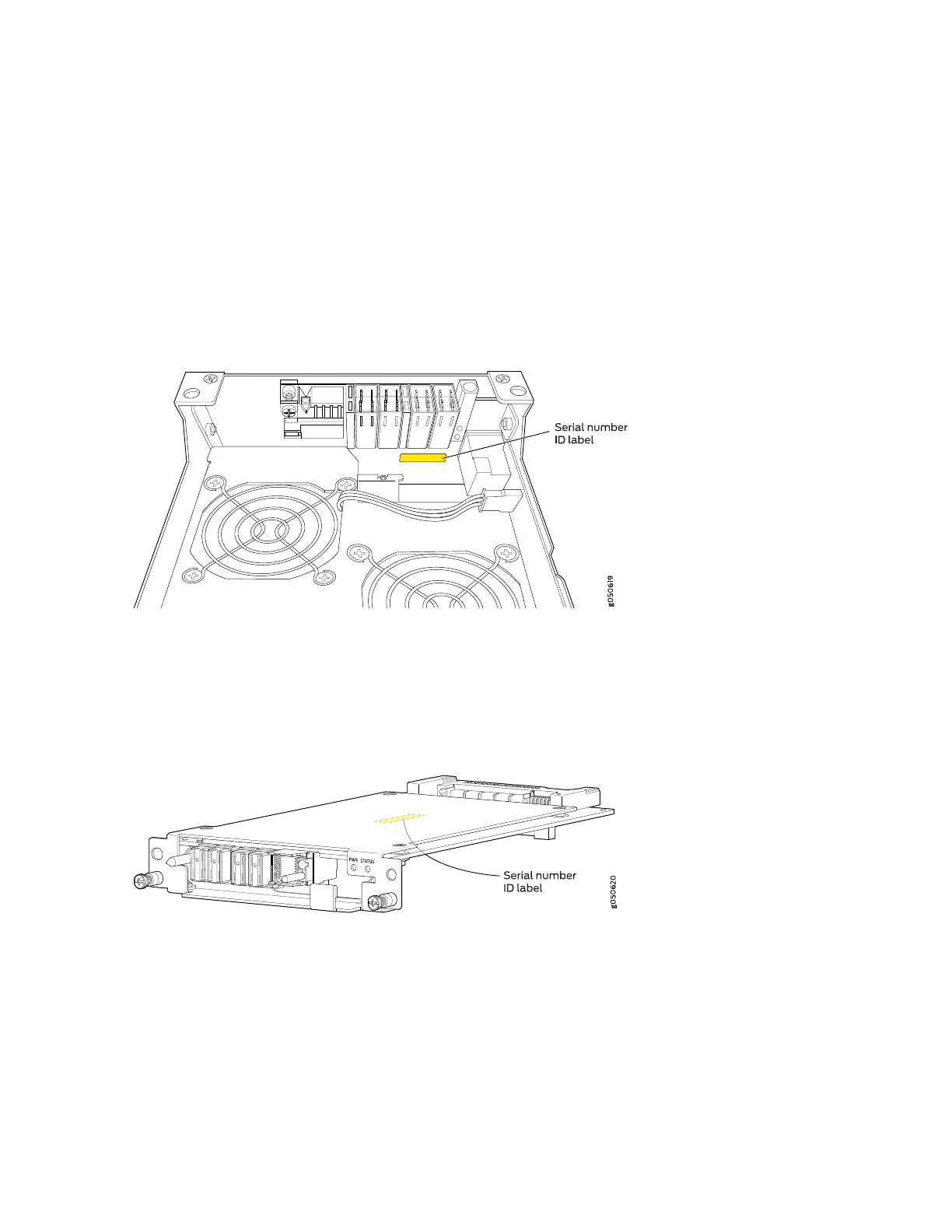

Figure 122: Fan Tray Serial Number Location
•
Fan tray controller–The serial number ID label is located on the top of the fan tray controller. See
Figure 123 on page 261.
Figure 123: Fan Tray Controller Serial Number Location
Locating the Serial Number ID Labels on Routing and Control Boards
The serial number ID label for a RCB is located on the connector end of the unit. See Figure 124 on page 262.
