Table 9: Fan Tray Specifications (continued)
JNP10016-FAN2JNP10016-FANSpecification
5.5 in. (13.97 cm) without handles,
6.7 in. (17.01 cm with handles)
4.0 in. (10.2 cm) without handles,
5.2 in. (13.2 cm) with handles
Depth
33.8lb (15.33 kg)19.8 lb (8.98 kg)Weight
The JNP10016-FAN2 and JNP10016-FAN2-CTRL are optimized to work best in the enhanced chassis,
but are backwards compatible to work in the standard chassis. To determine which chassis you have, see
“MX10016 Status Panel LEDs” on page 39.
MX10016 Fan Trays
Each fan tray is a hot-insertable and hot-removable FRU. Each fan tray contains 21 fans (0-20), a
non-removable Control Board, and LEDs.
The two fan trays install vertically, side by side, next to the power supplies on the rear side of the chassis.
Two handles on each front faceplate facilitate handling of the fan tray. See Figure 19 on page 46.

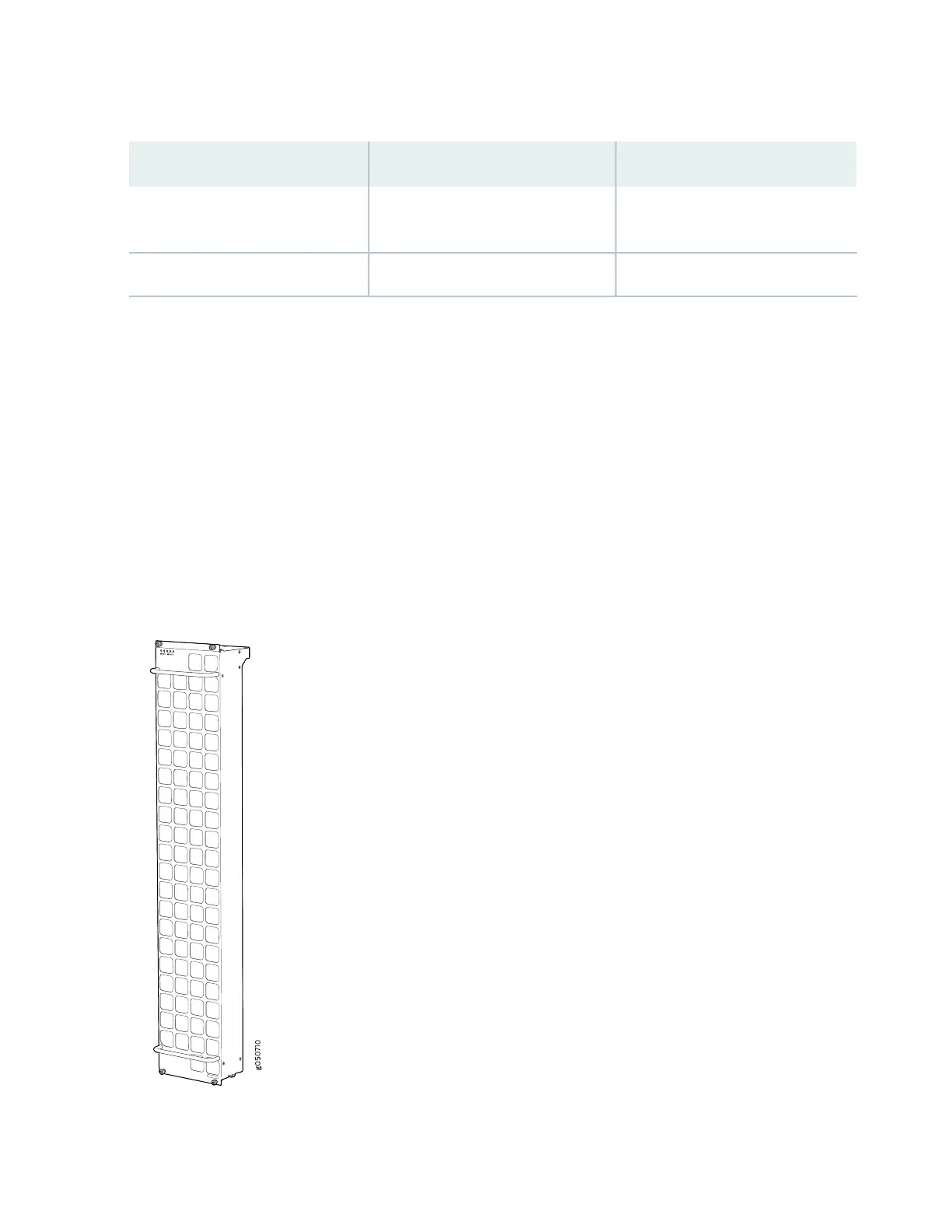

Figure 19: MX10016 Fan Tray
46
