the line cards and the fan trays inside the chassis (see Figure 6 on page 27). Each MX10016 SFB has sixteen
connectors that match to a line card slot, eliminating the need for a backplane. When all the SFBs are
installed, the MX10016 router has a net switching capacity of 2.4 terabytes per second (bidirectional). See
“MX10016 Switch Fabric Board” on page 80.

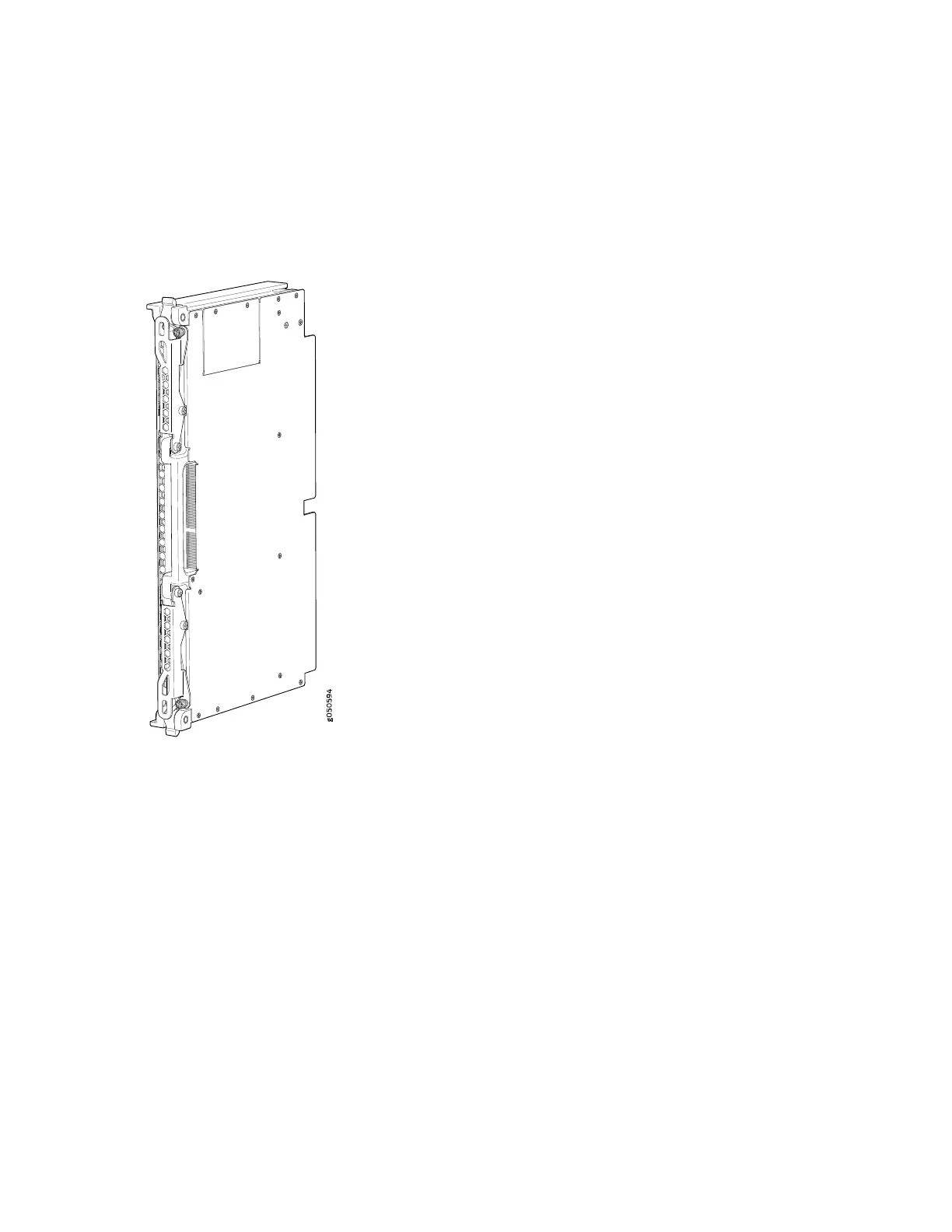

Figure 6: MX10016 SFB
Cooling System
The cooling system in the MX10016 consists of two hot-removable and hot-insertable FRU fan trays (see
Figure 7 on page 28) and two fan tray controllers (see Figure 8 on page 28).
Two fan tray models and their associated fan tray controllers are available. Both models of fan tray contain
11 fans. The fan trays install vertically on the rear of the chassis and provide front to back chassis cooling.
For model differences, see “MX10016 Cooling System and Airflow” on page 45.
27
