Juniper MX10016 Hardware Guide

Table 30: Rack Requirements for an MX10016 (continued)
GuidelinesRack Requirement
•
Secure the rack to the building structure.
•
If earthquakes are a possibility in your geographical area, secure the
rack to the floor.
•
Secure the rack to the ceiling brackets as well as wall or floor brackets
for maximum stability.
Rack connection to building structure
Clearance Requirements for Airflow and Hardware Maintenance for an
MX10016
When planning the site for an MX10016 router installation, you must allow sufficient clearance around
the installed chassis for cooling and maintenance (see Figure 40 on page 95 for MX10016).
NOTE: A minimum clearance space of half an inch from the bottom of the chassis is required to
easilyy remove and insert the fan tray.

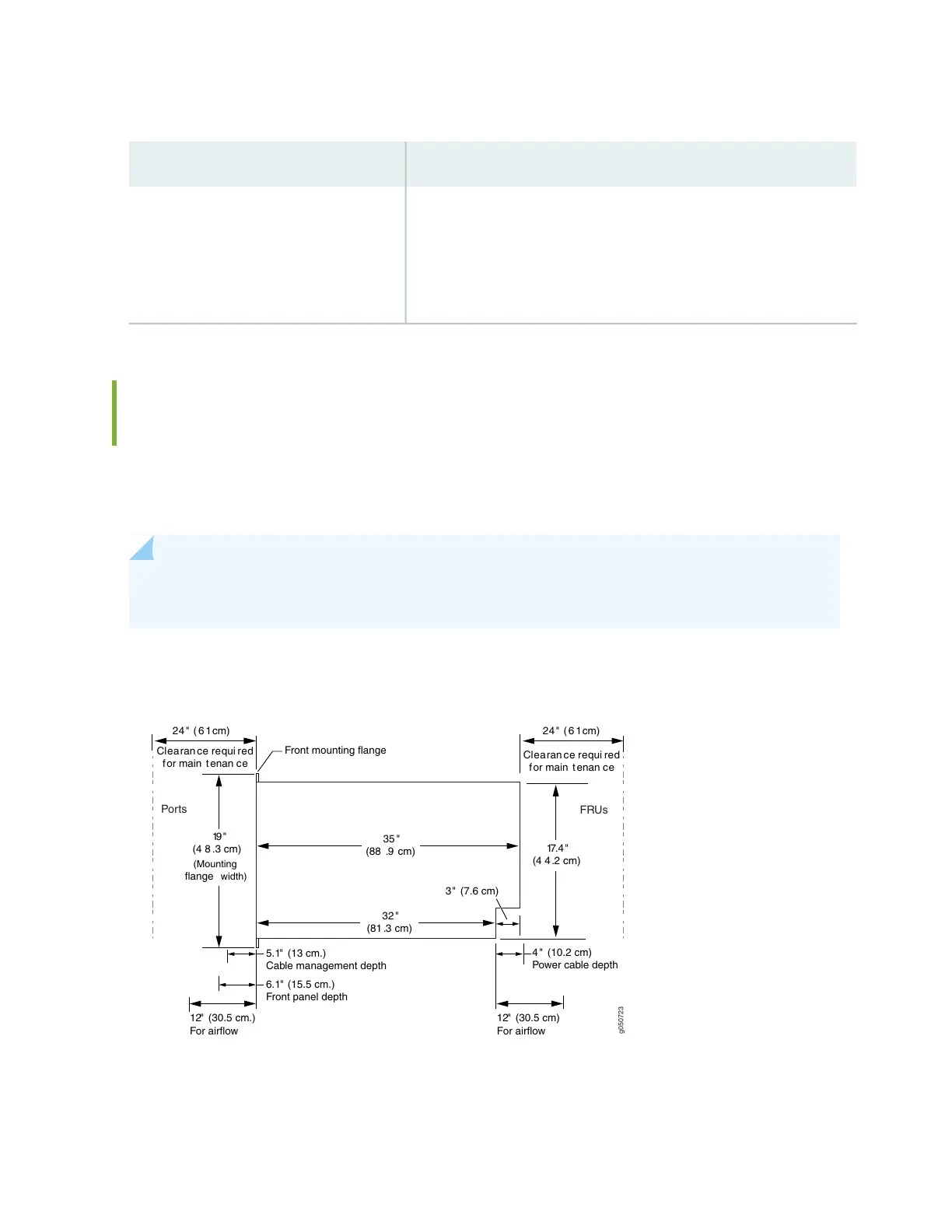

Figure 40: Clearance Requirements for Airflow and Hardware Maintenance for an MX10016 Chassis
g050723
Clearan ce requi red
for main t enan ce
19"
(4 8 .3 cm)
32"
(81 .3 cm)
35 "
(88 .9 cm)
for main t enan ce
Clearan ce requi red
Front mounting flange
24 " ( 6 1cm) 24 " ( 6 1cm)
FRUs
Ports
17.4"
3" (7.6 cm)
4 " (10.2 cm)
Power cable depth
5.1" (13 cm.)
Cable management depth
6.1" (15.5 cm.)
Front panel depth
12" (30.5 cm)
For airflow
(4 4.2 cm)
(Mounting
flange width)
12" (30.5 cm.)
For airflow
Follow these guidelines:
95
