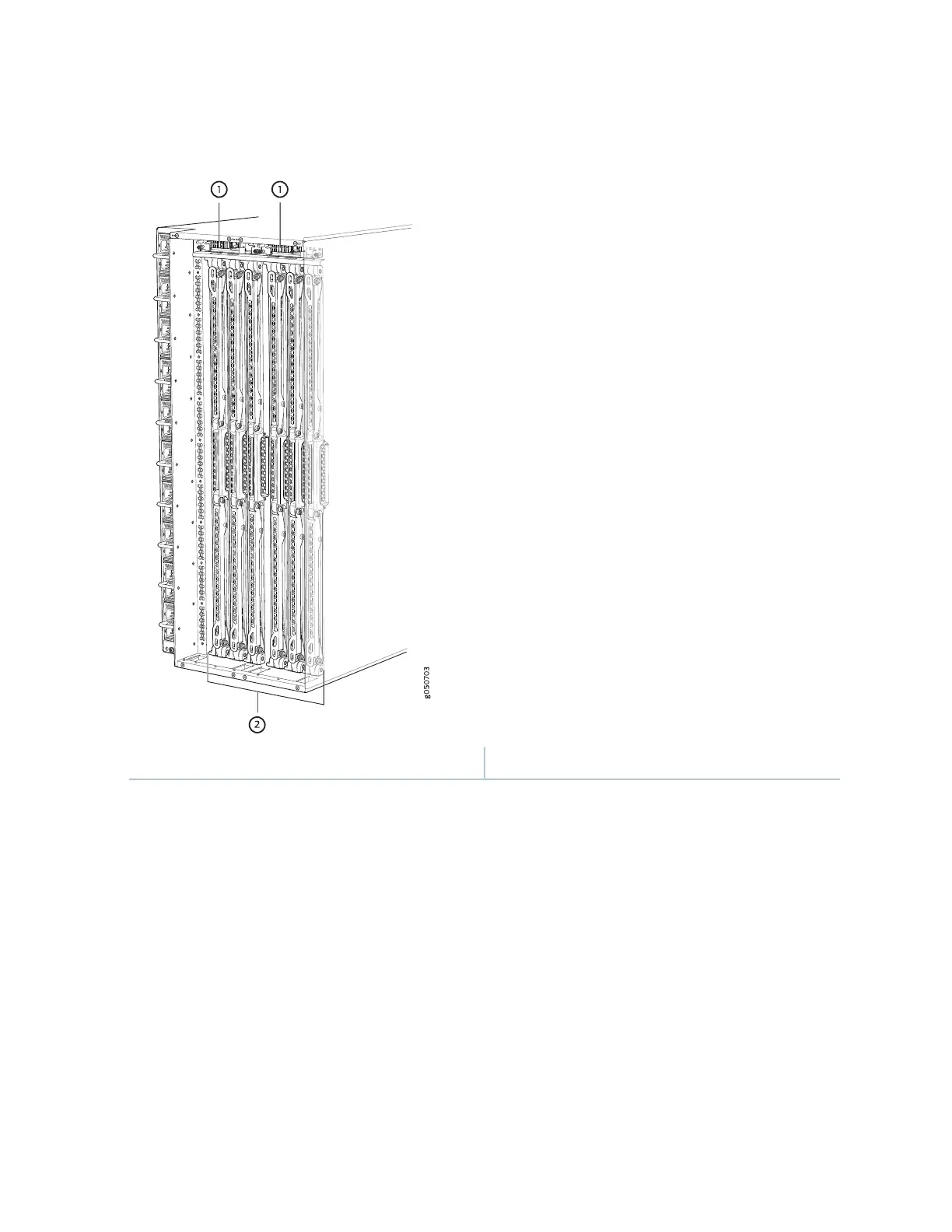

Figure 3: MX10016 Chassis Internal Components
21 Switch Fabric Boards (SFBs)Fan tray controllers
See “MX10016 Chassis Physical Specifications” on page 35.
Routing and Control Board
The Routing and Control Board (RCB) (see Figure 4 on page 26) contains a Routing Engine and is responsible
for the system management and control in the MX10016. See “MX10016 Routing and Control Board” on
page 75. RCBs are FRUs that are installed in the front of the chassis in the slots labeled CB0 and CB1. The
base configuration has a single RCB while the fully redundant configuration has two RCBs. The RCB also
contains Precision Time Protocol ports and two Media Access Control Security (MACsec) capable ports
(see “MX10016 Components and Configurations” on page 31).
