Switch Fabric Board LEDs
The Switch Fabric Board (SFB) has two status LEDs at the top of each board. See Figure 39 on page 83.

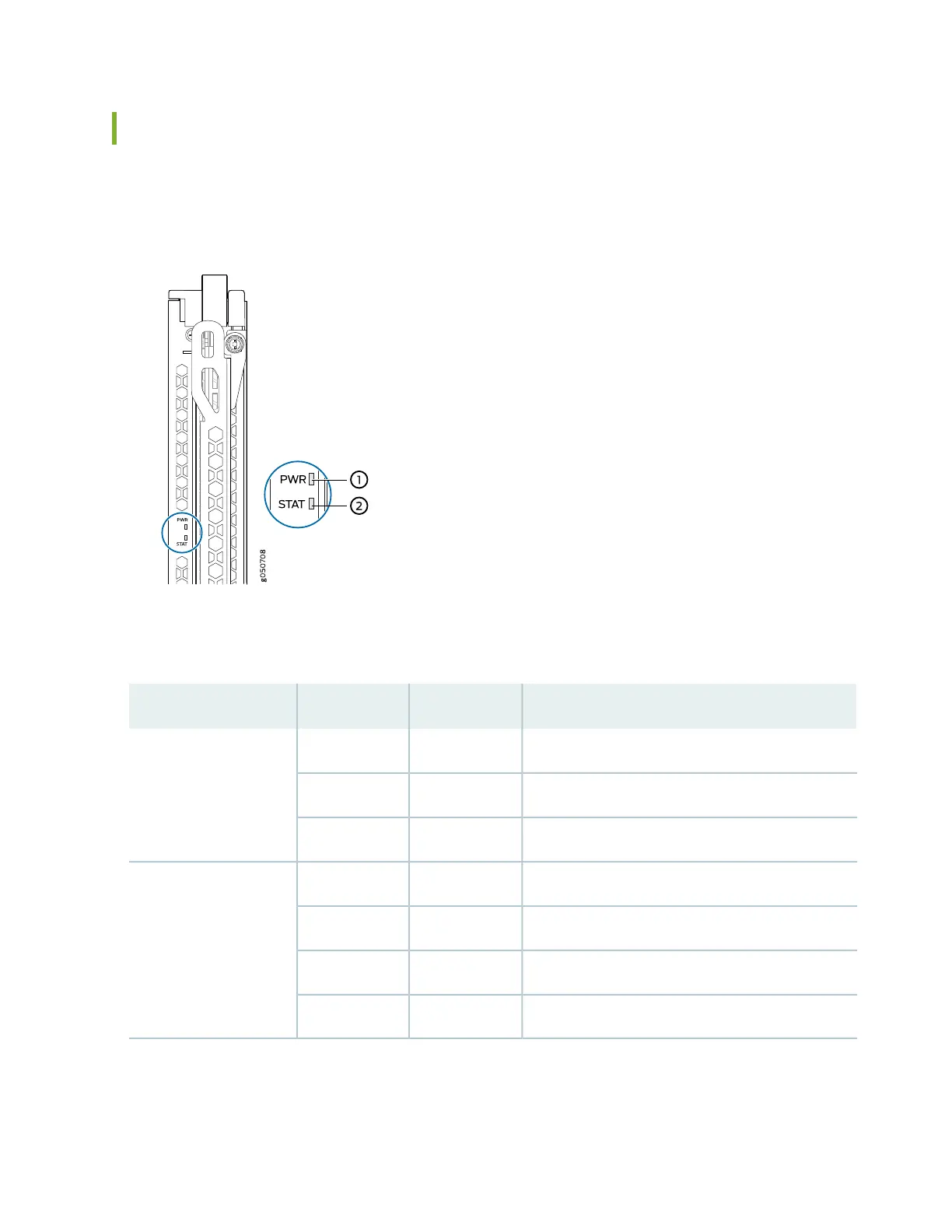

Figure 39: Switch Fabric Board LEDs
Table 26 on page 83 describes the functions of these LEDs.
Table 26: SFB LEDs
DescriptionStateColorLabel
The SFB is receiving power.On steadilyGreenPWR
A power fault has occurred.BlinkingYellow
The SFB is either offline or not receiving power.OffUnlit
The SFB is online and functioning normally.On steadilyGreenSTAT
The beacon feature is enabled.BlinkingGreen
The SFB has failed.On steadilyYellow
The fan tray controller is facing a power problem.OffUnlit
83
