Table 11: Fan Tray LEDs on an MX10016 (continued)
DescriptionStateColorName
The right-most SFB behind the right fan
tray is online.
On steadilyGreenSFB 5 status
The beacon feature is enabled. This feature
is enabled using the request chassis
beacon command.
BlinkingGreen
An error has been detected in SFB 5.
Replace the SFB as soon as possible. The
SFB is located behind the right fan tray and
is the right-most SFB in the grouping of 3.
To maintain proper airflow through the
chassis, leave the fan tray installed in the
chassis until you are ready to replace the
SFB.
BlinkingYellow
The SFB is offline.OffNone
MX10016 Fan Tray Controller LEDs
The fan tray controller LEDs are only visible when the associated fan tray is removed. The fan tray controller
LEDs are located on the right of the controller panel. See Figure 22 on page 55.

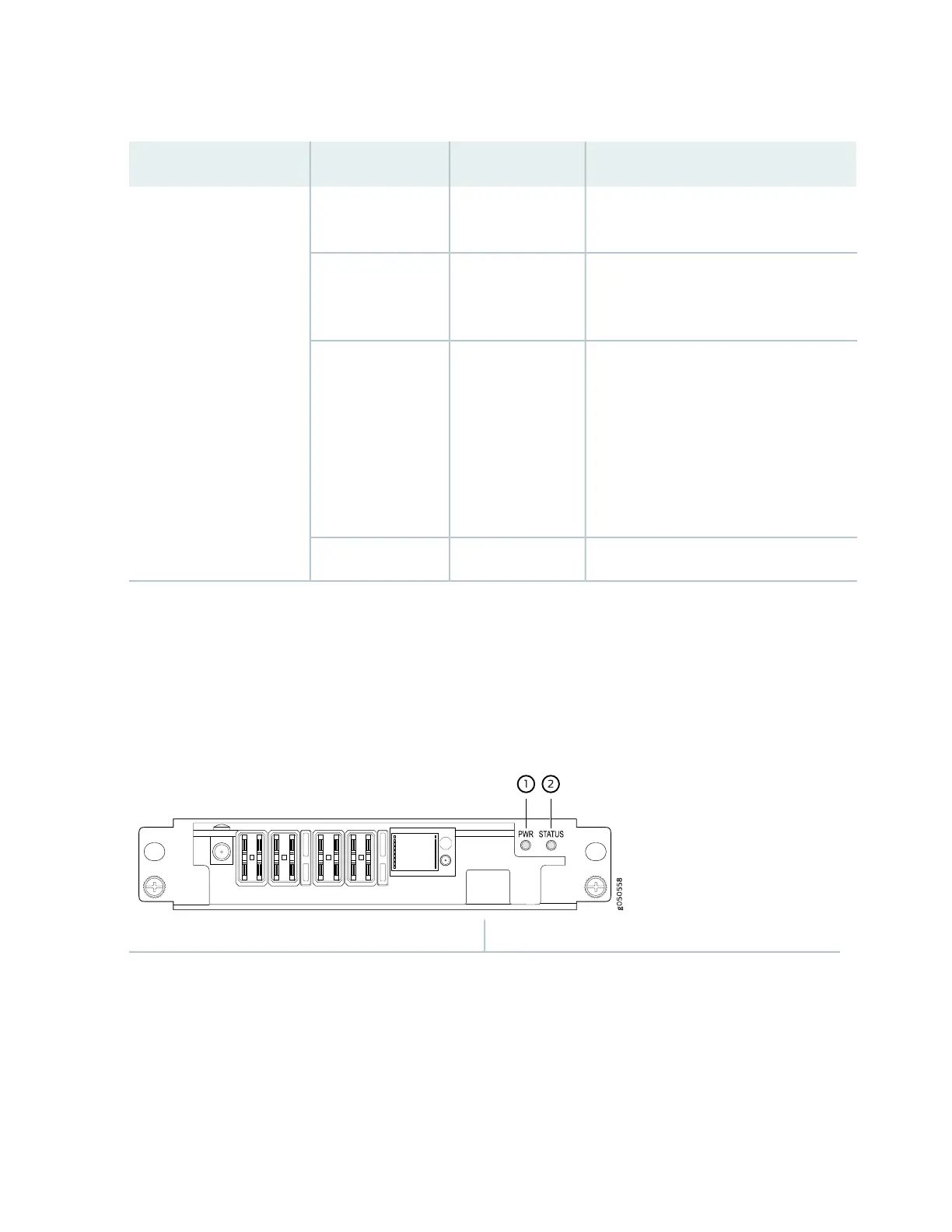

Figure 22: Fan Tray Controller LEDs on an MX10016
2—1— Fan tray controller statusFan tray controller power
Table 12 on page 56 describes the functions of the fan tray controller LEDs.
