Line card (MX10K-LC2101)
The MX10K-LC2101 line card is a fixed configuration MPC and it does not contain separate slots for
Modular Interface Cards (MICs). The MX10008 routers support eight MX10K-LC2101 MPCs.The line card
provides a maximum bandwidth of 2.4Tbps and has six Packet Forwarding Engines, each providing a
maximum bandwidth of up to 400 Gbps.

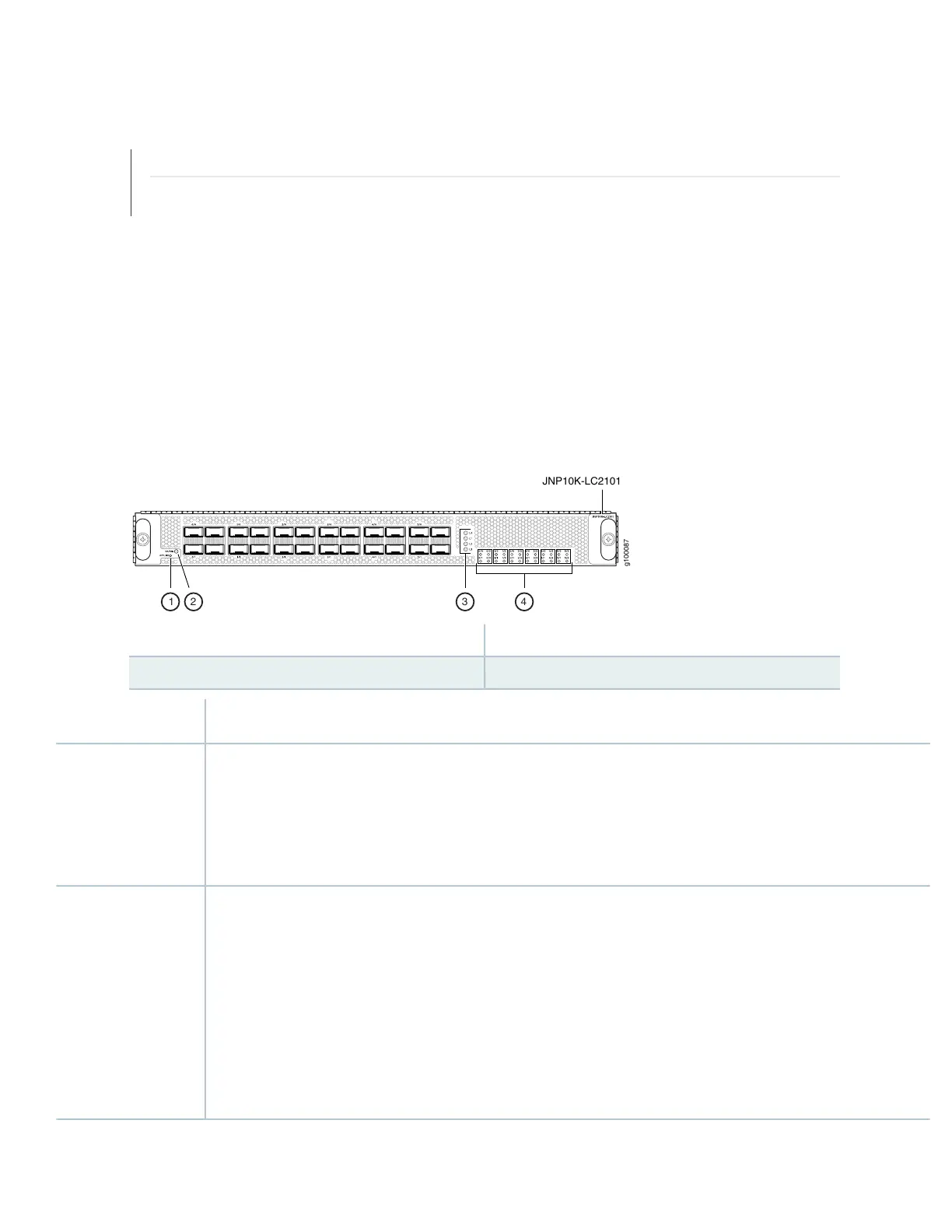

g100087
JNP10K-LC2101
1 2 3 4
3—1— Lane LEDsOFFLINE button
4—2— Port LEDsOK/FAIL LED
Junos OS Release 18.2R1 and laterSoftware release
•
Weight: 31.57 lb (14.32 kg)
•
Model number: JNP10K-LC2101
•
Name in the CLI: JNP10K-LC2101
•
Dimensions: Height = 1.89 in. (48.01 mm), Width = 17.2 in (436.88 mm), Depth = 19.05 in. (484 mm) (Excluding
FRU Ejector)
Description
•
Fixed-configuration MPC with 10-Gbps, 40-Gbps, and 100-Gbps port speeds.
•
All the ports are multi-rate ports. Each port is capable of supporting either 100 Gbps or 40 Gbps or 10 Gbps
(4x10-Gbps with breakout cable).
•
Line-rate throughput of up to 2.4 Tbps.
•
Six Packet Forwarding Engines, each providing a maximum bandwidth of 400 Gbps.
•
EA chipsets for increased scaling for bandwidth, subscribers, and services.
•
Supports the Switch Fabric Boards, JNP10008-SF and JNP10016-SF.
•
Supports maximum transmission units (MTUs) from 256 bytes through 16,000 bytes for transit traffic, and from
256 bytes through 9,500 bytes for host bound packets.
