6-13
№
Description of procedure
Technical requirements and instructions
18
Top up to norm the oil level in
the tank of the power steering
booster pump.
Undo the cover-dipstick and test oil level in a
tank. The oil level must be between upper and bottom
marks on dipstick.
Check and top up oil while engine is idling, ve-
hicle front wheel being straight.
Greases are used in accord with suggestions of
Appendices 2, 3.
19
Top up to norm the fluid level
in tank of clutch master cylin-
der.
Inspect visually the liquid level in a tank of clutch master cylinder (see Fig.
Tank of the clutch master cylinder). The clutch master cylinder is located under
the front facing panel.
The normal liquid level
«Б» in a tank corresponds
to 40 mm, the permissible
level is 10 mm (see Fig.
Level of liquid in tank of
clutch master cylinder).
Greases are used in accord
with suggestions of Ap-
pendices 2, 3.

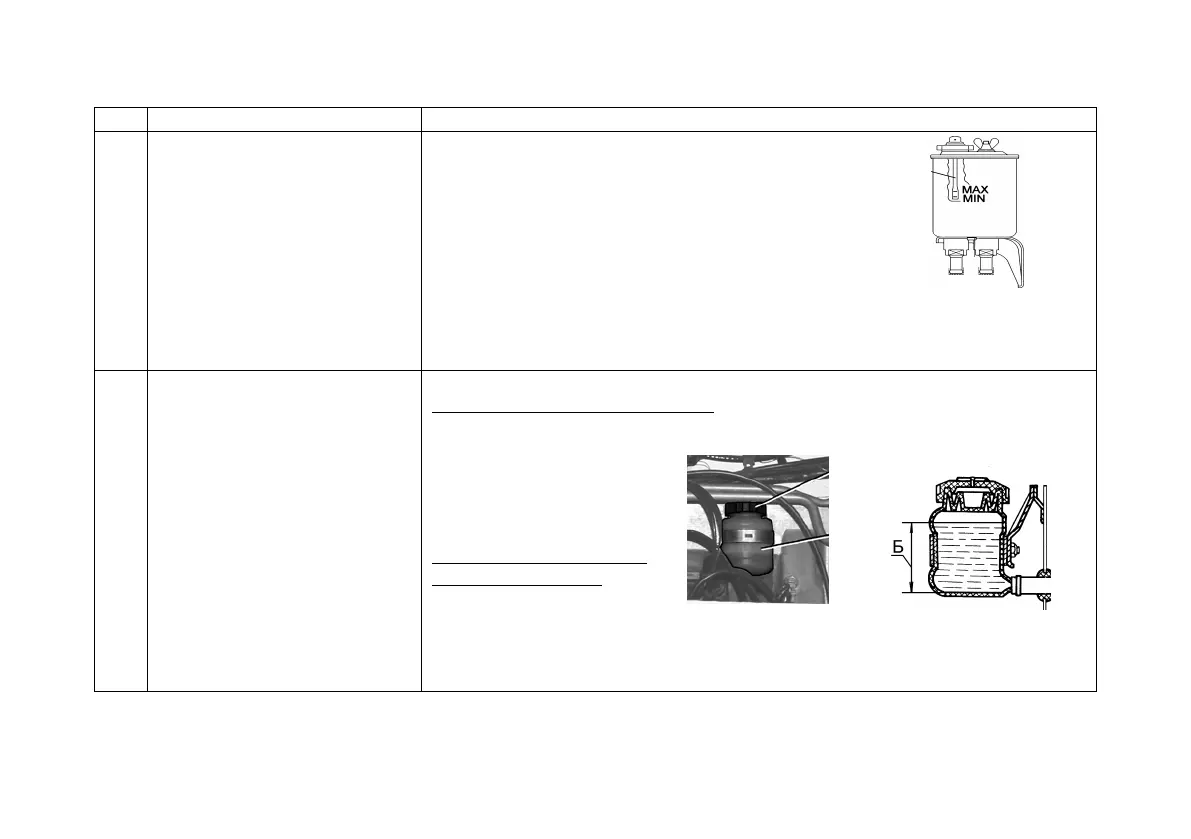

Tank of the power
steering pump
1
– cover-dipstick
1
The level of liquid in a tank
of clutch master cylinder
1
2
Tank of clutch
master cylinder
1
- cover; 2 – tank
