7-38
Changing the bulb in headlamp cluster
1. Remove the fastening cover plate of the head-
lamp cluster, unscrew two bolts securing the bulb (holes
6 and 7) and two fastening bolts on the headlamp cluster
reverse side (holes 7 and 15) (see Fig. Headlamp clus-
ter).
2. Pull out the headlamp cluster.
4. Disconnect the plug from the lamp contact, re-
move the clamping spring, take out the halogen lamp
holding it by the socket, install the new halogen lamp,
secure the clamping spring, connect the plug with the
bulb contact, close the cover.
5. Install the headlamp cluster, secure it with
bolts.
3. Open the covers 9 and 11.

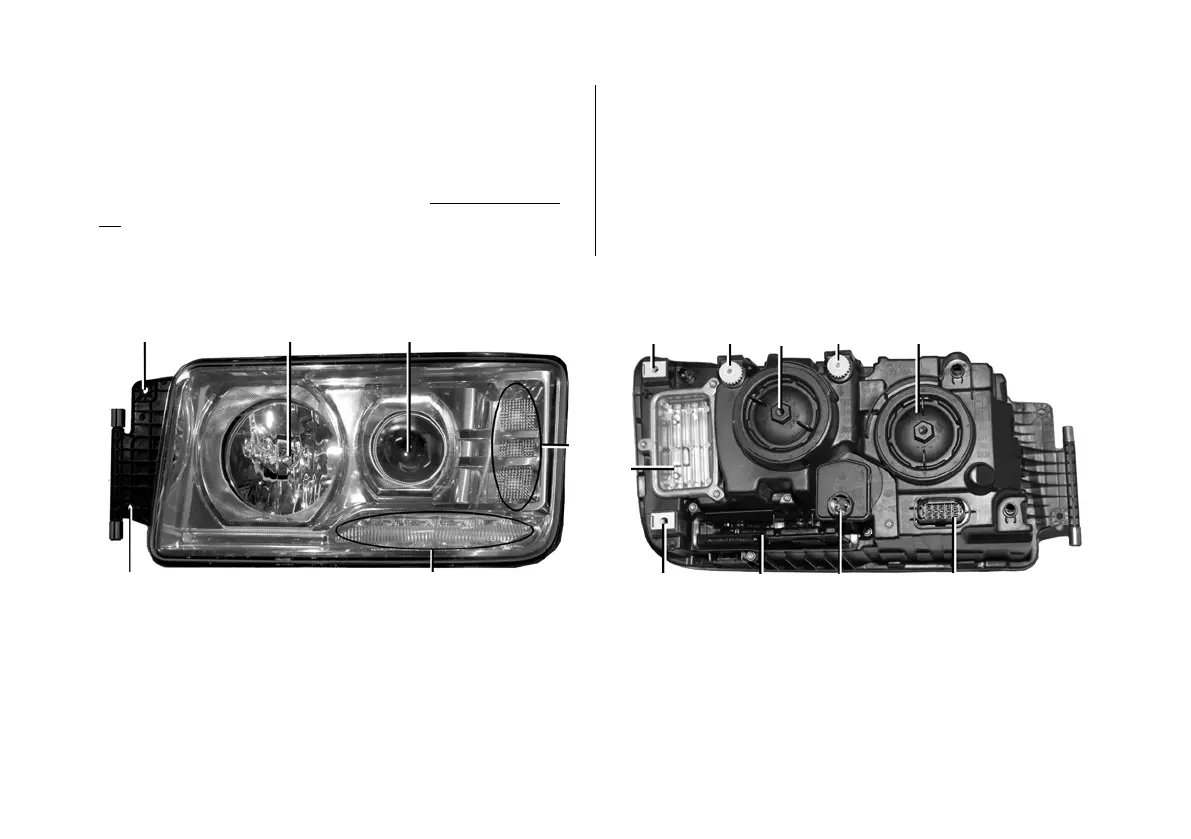

- high beam light; 2 - low beam light; 3 - direction indicator; 4 - daytime running lights/marker lights; 5, 6, 7, 15 -
bolt holes to secure headlamp
cluster;
8 - vertical/ horizontal light adjustment for low beam; 9, 11 - cover; vertical light adjustment for low beam; 10 –
adjustment of the low beam
vertically;
12 - headlamp cluster bulb socket; 13 - beam adjuster socket; 14 -
radiator for cooling the LED cluster of daytime running light (DRL)
bulbs;
16 - radiator for cooling the LED cluster of direction indicator bulbs
