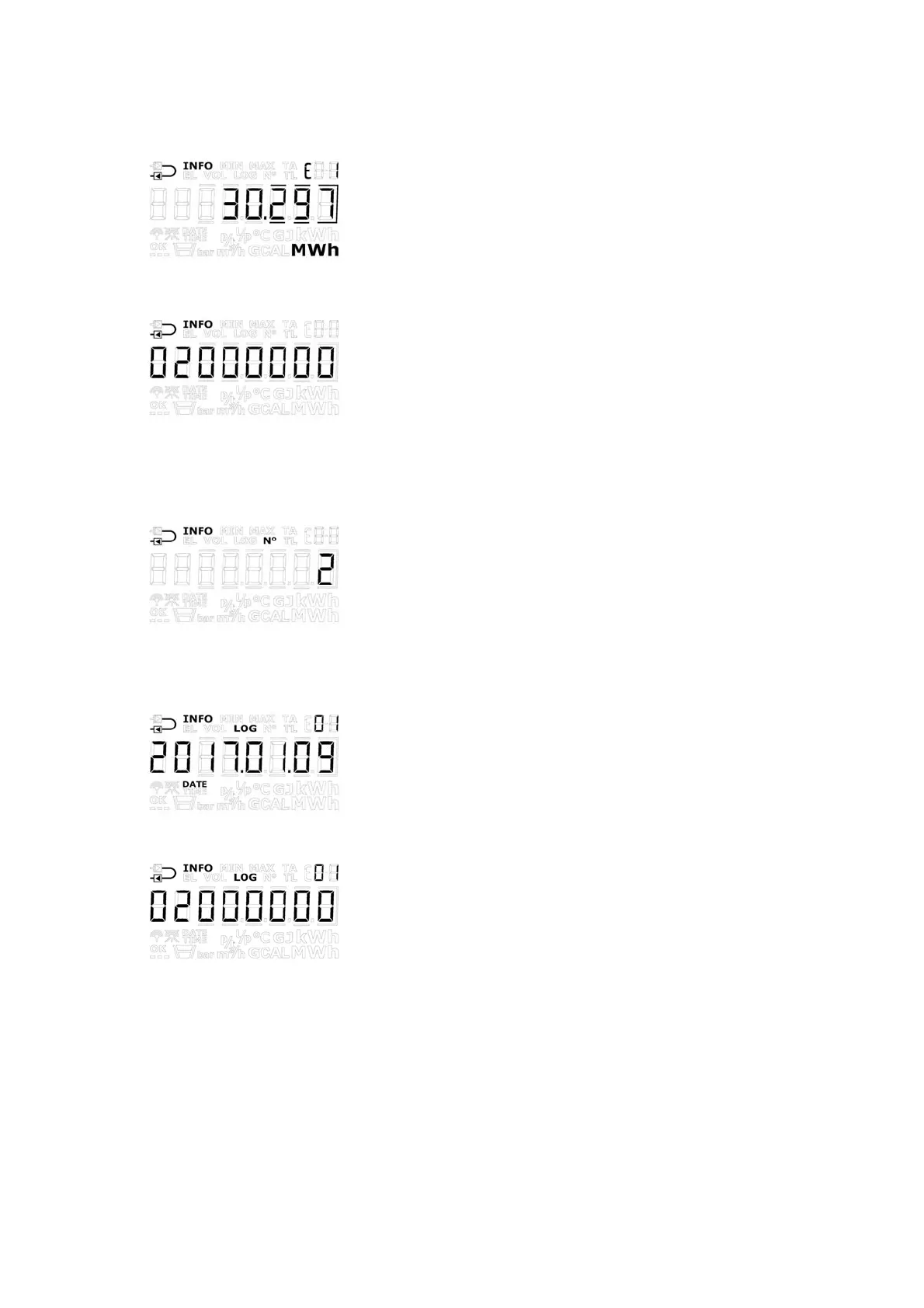

Examplesofinformationcodes



Flashing”INFO”
Iftheinformationcodeisdifferentfrom
”00000000”,aflashing“INFO”willappearinthe
meter’sdisplay.




Currentinformationcode
Thecurrentinfocodecanbedisplayedby
scrollingtotheinfocodereadingusingthekeys
onthecalculatorfront.
Whenthecurrentinfo
codeisdisplayed,“INFO”stopsflashing.

Intheexample,thecurrentinfocodeindicates
thatt1isbelowthemeasuringrangeorshort‐
circuited.



Infoeventcounter
Theinfoeventcounterisasecondaryviewforthe
infocode,indicatinghowmanytimestheinfo
codehasbeenchanged.
Thevalueisincreasedeverytimetheinfocodeis
changed.
The
infoeventcounterofanewmeterwillbe0
astransportstatepreventscountingduring



Infologger
Thedisplayreadingstatesthedateofthelatest
infocodechange.



Thedisplayreadingshowstheinfocodefromthe
previouslydisplayeddate.Repeatedactivationsof
thefrontkeys
alternatelyinducedateand
correspondinginfocode.
Thedataloggersavesthelatest250changes.
3Thelatest50changescanbedisplayed.All50
changescanbereadbymeansofMETERTOOL.

Note:Theinfocodeissavedinthemeter’sdataloggertoofordiagnosticpurpos es.
Theinfocodetypes whichare relatedtothemeter’s differentsensors willincase oferrorinfluencethe display
readings,towhichtheyaretied.Inconnectionwithcurrentvaluesfortemperaturesandpower,three
horizontallines
willappearinthedisplay,andtheenergyregisters,inwhichcountingisdependentonthesensorfunction,willnotbe
accumulated.Seeparagraphs6and7.7forfurtherinformationonsensorerrors.

