9.4 ø5.8mmpocketsensorwithconnectionhead
ø5.8mmpocketsensorwithconnectionheadconsistsofaø5.8mmPt500temperaturesensor,whichisconnectedto
areplaceablesensorinputviaa2‐wiresiliconecable.Thesensorinputismountedinasensorpocketwithmounted
connectionhead,seefigure8.Connectionof4‐wirecable
takesplacebyleadingthecablethroughthesuitablehole
intheconnectionheadandmountthe4wiresinthescrewterminalonthesensorinput.
ø5.8mmpocketsensor withconnectionheadisavailablewithR½(conical½”)connectioninstainlesssteelandin
lengthsof90,140and
180mm.Theouterdiameterofthesensorpocketisø8mm.Theconstructionwithreplaceable
sensorinputpermitsreplacementofsensorswithouthavingtocutoffthewaterflow.Furthermore,thewiderangeof
immersionpipelengthsensuresthatthesensorscanbemountedinallexistingpipedimensions.
Thestainlesssteel
pocketscanbeusedformountinginPN25systems.

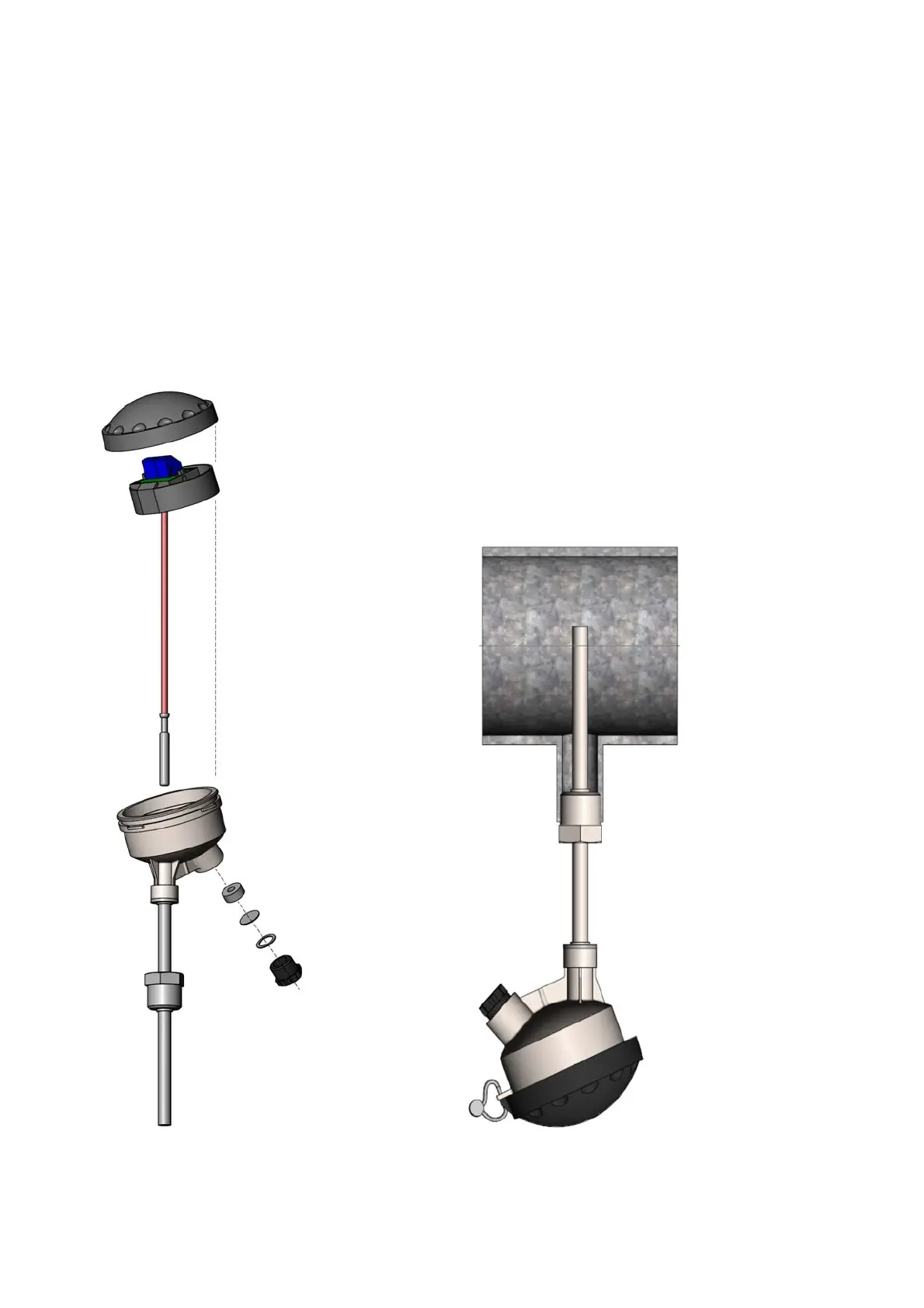

Aø5.8mmpocketsensorwithconnectionheadcane.g.bemountedinateeasshowninFigure9.
   
 Figure8 Figure9

