Kamstrup MULTICAL 603 Technical Description

MULTICAL®603

KamstrupA/S∙Technicaldescription∙5512‐2029
_
A1_GB
_
06.2017
141


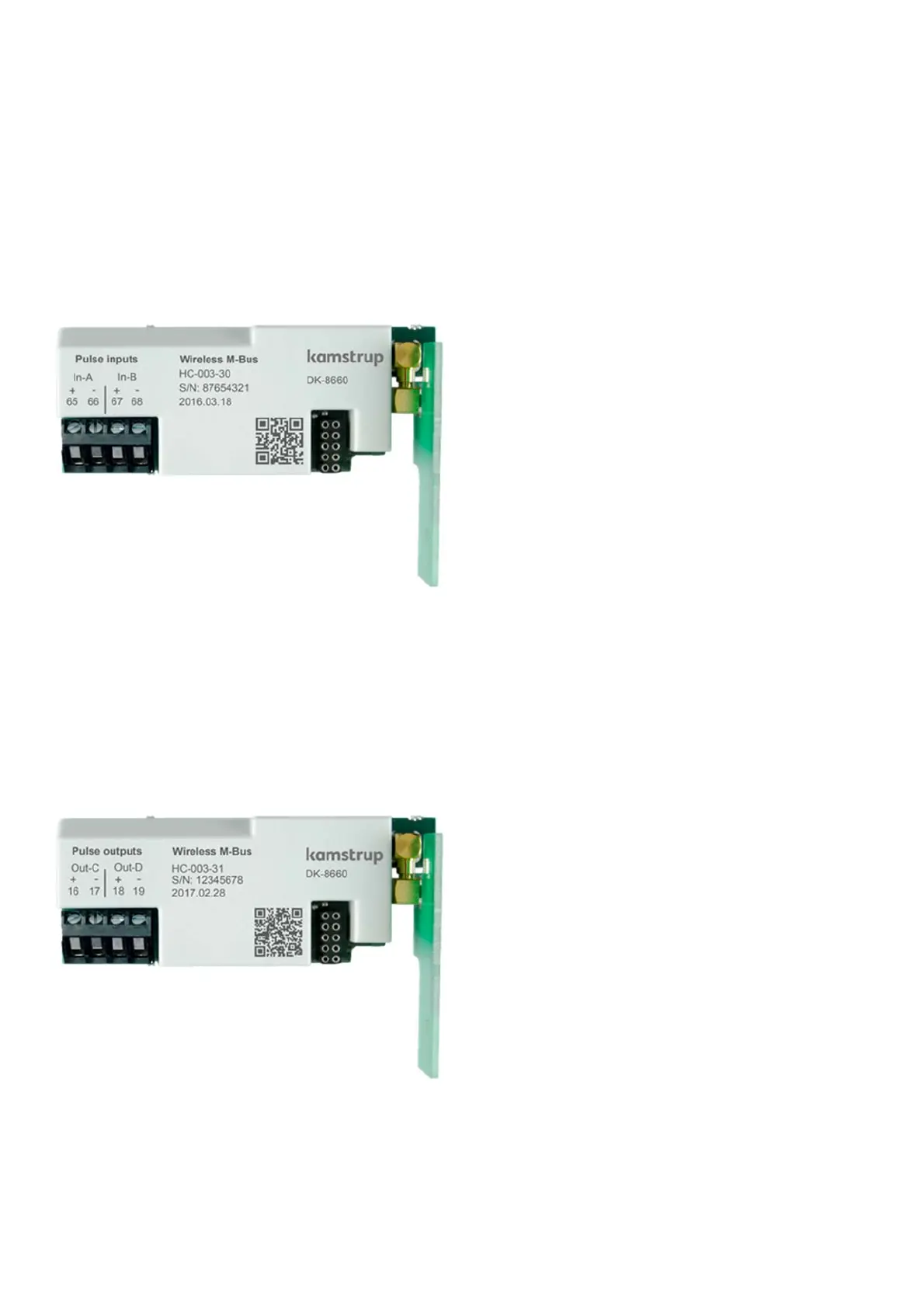

11.3.6 WirelessM‐Bus+pulseinputs(typeno.HC‐003‐30)
ThewirelessM‐Busmodulehasbeendesignedforuseinbothhand‐heldWirelessM‐BusreadingsystemsandWireless
M‐Busnetworksystems,whichoperatewithintheunlicensedfrequencybandinthe868MHzarea.
Thecommunication
protocolisC‐modeorT‐modeaccordingtothestandardEN13757‐4.ThewirelessM‐Busmodule
supportsbothindividualandcommonencryptionkeys,thecommonencryptionkey,however,onrequestonly.The
modulesareavailablewithconnectionforbothinternalandexternalantenna.
Theoutputdatapackagecan
beconfiguredtoincludevariousregistercombinationsbymeansofthePC‐programs
METERTOOLHCWandREADyManager.


11.3.7 WirelessM‐Bus+pulseoutputs(ty pe no.:HC‐003‐31)
ThewirelessM‐Busmodulehasbeendesignedforuseinbothhand‐heldWirelessM‐Busreadingsystemsand

WirelessM‐Busnetworksystems,whichoperatewithintheunlicensedfrequencybandinthe868MHzarea.
ThecommunicationprotocolisC‐modeorT‐modeaccordingtothestandardEN13757‐4.ThewirelessM‐Bus
modulesupportsbothindividualandcommonencryptionkeys,thecommonencryptionkey,however,on
request
only.Themodulesareavailablewithconnectionforbothinternalandexternalantenna.
TheoutputdatapackagecanbeconfiguredtoincludevariousregistercombinationsbymeansofthePC‐programs
METERTOOLHCWandREADyManager.




Kamstrup MULTICAL 603 Specifications

General

Flow Sensor	Ultrasonic
Battery Life	Up to 16 years
Power Supply	Battery
Communication Options	M-Bus, Wireless M-Bus, Modbus, BACnet
Display	LCD
Application	Heating and Cooling
Pressure Rating	PN16
Approval	MID
Accuracy	Class 2
Ambient Temperature Range	55°C
Housing Material	Brass
