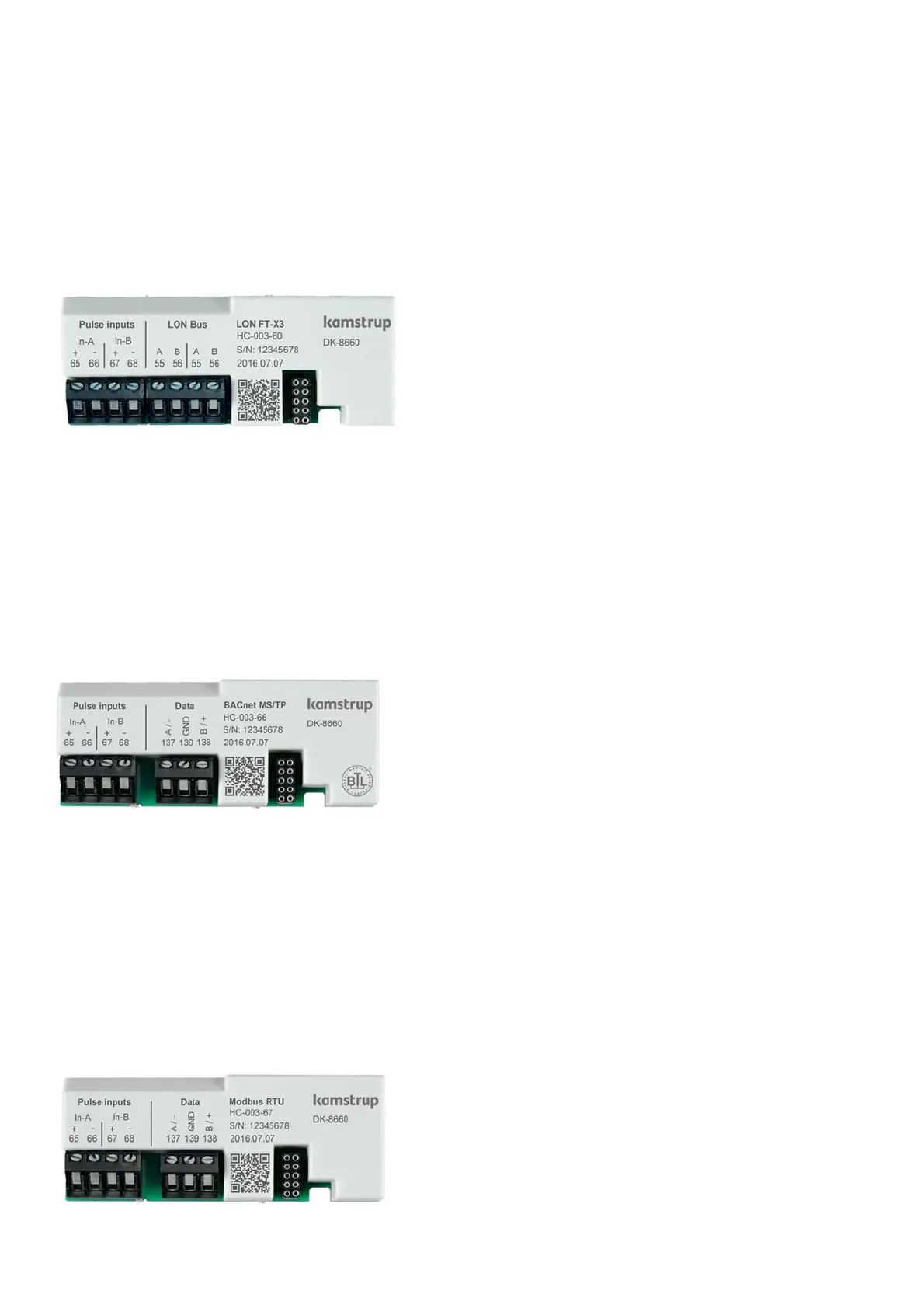

11.3.10 LONFT‐X3+2pulseinputs(typeno.HC‐003‐60)
TheLONFT‐X3moduleisdesignedforuseinfreetopologycommunicationTP/FT‐10.Themoduleiscompatiblewith
LONWORKS®2.0andsupportshigh‐speedcommunicationupto78600baud.
The LON m o dule enables the integration
of the energy meter in building automation systems or in industrial
applications.TheLONmoduleisdeliveredwithbarcodeswithimprintedLONNodeIDtoeasethecommissioning.
Themoduleispower‐suppliedbythe24VACor230VACpowersupplyinMULTICAL®.Thepowersupplymustbein

thehigh‐powerversion.Itisnotpossibletobattery‐supplyMULTICAL®.


11.3.11 BACnetMS/TP+2pulseinputs(typeno.HC‐003‐66)
TheBACnetMS/TPmoduleisdesignedforuseinfreetopologycommunication.ThemoduleiscompatiblewithASHRAE
135andsupportshigh‐speedcommunicationup
to76800baud.
TheBACnetmodule enablestheintegration ofthe energymetersin buildingautomationsystemsorinindustrial
applications.
TheBACnetmoduleisBACnet‐certifiedandregisteredintheBTLlist.
Themoduleispower‐suppliedbythe24VACor230VACpowersupplyinMULTICAL®.MULTICAL®cannot
be
battery‐supplied.


11.3.12 ModbusRTU+2pulseinputs(typeno.HC‐003‐67)
TheModusRTUmoduleisdesignedforuseinfreetopologycommunication.ThemoduleiscompatiblewithModbus
implementationguideV1.02andsupportshigh‐speedcommunicationupto115200baud.
TheModbus moduleenables
theintegrationoftheenergymeterin buildingautomationsystemsor inindustrial
applications.
TheModbusmoduleisMBS‐verified.
Themoduleispower‐suppliedbythe24VACor230VACpowersupplyinMULTICAL®.MULTICAL®cannotbe
battery‐supplied.

