Kamstrup MULTICAL 603 Technical Description

MULTICAL®603

8
KamstrupA/S∙Technicaldescription∙5512‐2029_A1_GB_06.2017

Thistechnicaldescriptionhasbeenwrittenwithaviewtoenablingoperationsmanagers,meterinstallers,consulting
engineers and distributors to utilize all functions comprised in MULTICAL® 603. Furthermore, the description is
targetedatlaboratoriesperformingtestsandverification.
Thetechnicaldescriptioniscurrentlyupdated.Findthelatesteditionathttp://products.kamstrup.com/index. php.
1.1 Mechanicalconstruction


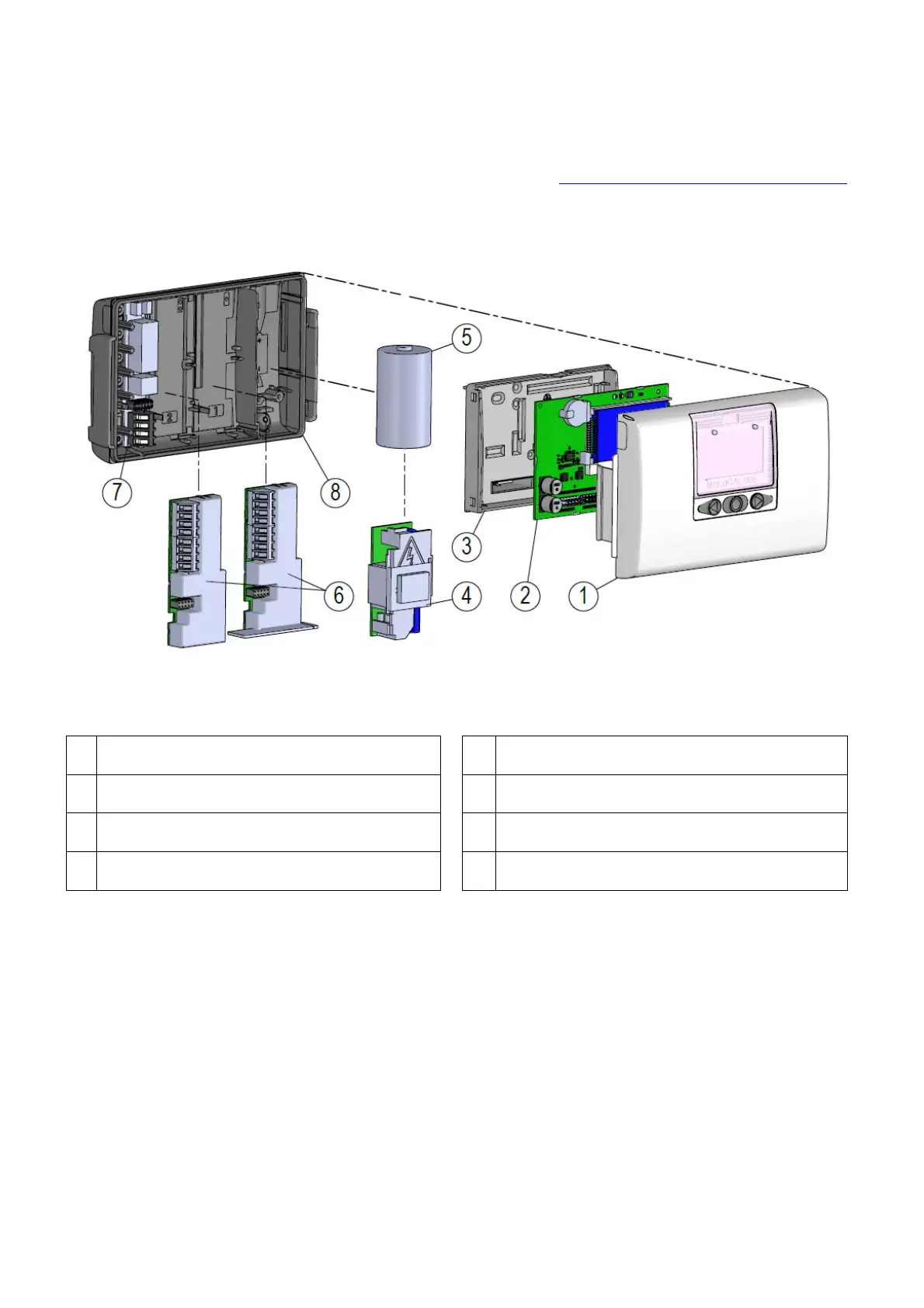

Figure1

1 Topcoverwithfrontkeysandlaserengraving 5 …orabatterycanbemounted
2 PCBwithmicrocontroller,display,etc. 6 1or2communicationmodules
3
Verificationcover
(mayonlybeopenedbyanauthorisedlaboratory)
7 Connectionoftemperaturesensorsandflowsensor
4 Eitherapowersupplymodulecanbemounted… 8 Bottomcover
 

Kamstrup MULTICAL 603 Specifications

General

Flow Sensor	Ultrasonic
Battery Life	Up to 16 years
Power Supply	Battery
Communication Options	M-Bus, Wireless M-Bus, Modbus, BACnet
Display	LCD
Application	Heating and Cooling
Pressure Rating	PN16
Approval	MID
Accuracy	Class 2
Ambient Temperature Range	55°C
Housing Material	Brass
