Kamstrup MULTICAL 603 Technical Description

MULTICAL®603

KamstrupA/S∙Technicaldescription∙5512‐2029
_
A1_GB
_
06.2017
125

9.5 ø5.8mmpocketsensor
Theø5.8mmpocketsensorisaPt500cablesensor,whichisconstructedwith2‐wiresiliconecableandclosedwitha
ø5.8mmshrunkonstainlesssteeltubewhichprotectsthesensorelement.Thesteeltubeismountedinasensor
pocket(immersionpipe)whichhasanouterdiameterof
ø7.5mm.SensorpocketsareavailablewithR½(conical½” )
connectioninstainlesssteelandinlengthsof65,90and140mm.Thesensorconstructionwithseparateimmersion
pipepermitsreplacementofsensorswithouthavingtocutofftheflow.Furthermore,thewiderangeofimmersion
pipelengthsensures

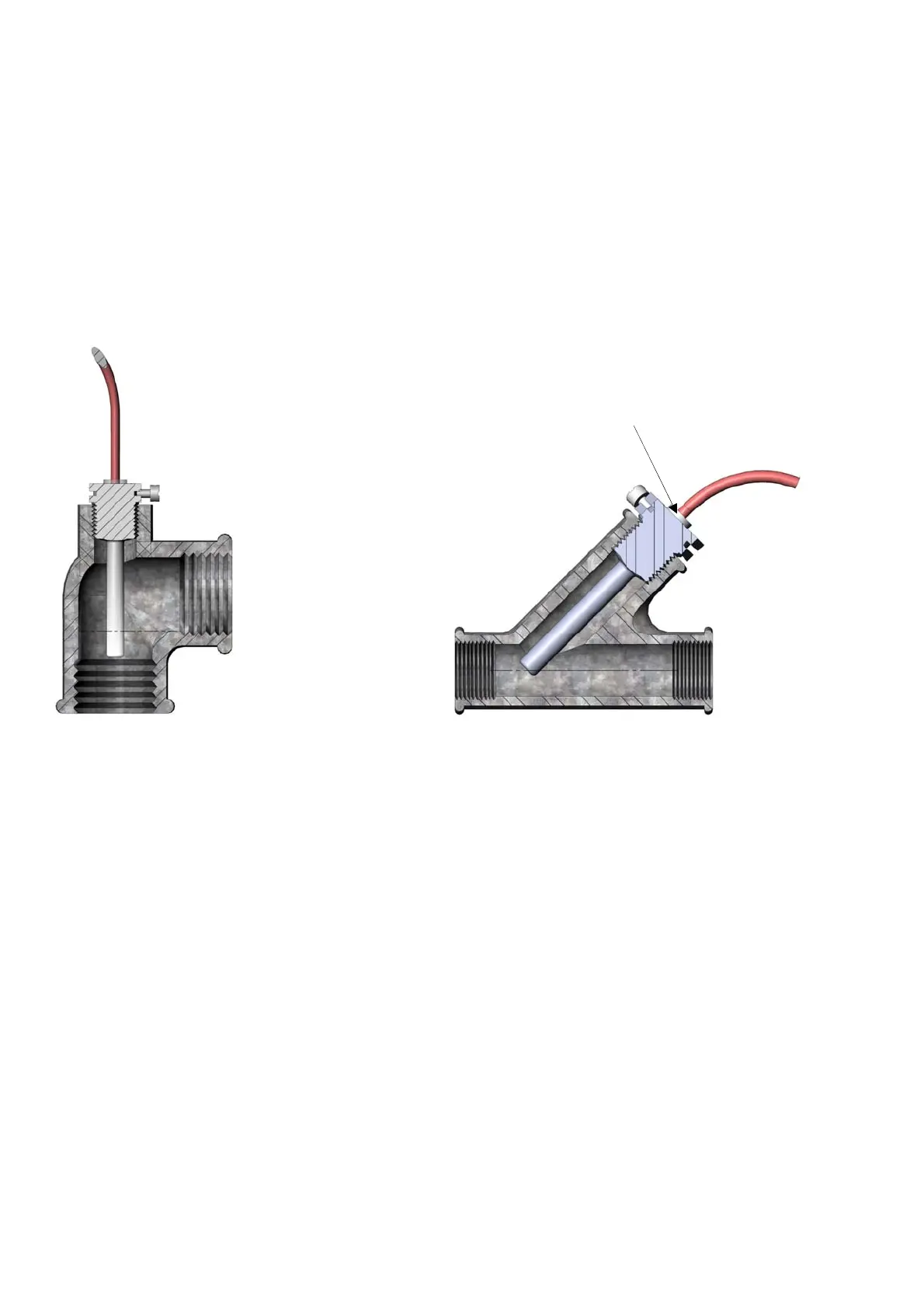

thatthesensorscanbemountedinallexistingpipedimensions.Thestainlesssteelpocketscan
beusedformountinginPN25systems.


    




Theplastictubeonthesensorcableis
placedlevelwiththesealingscrew,
whichislightlytightenedwithyour

Kamstrup MULTICAL 603 Specifications

General

Flow Sensor	Ultrasonic
Battery Life	Up to 16 years
Power Supply	Battery
Communication Options	M-Bus, Wireless M-Bus, Modbus, BACnet
Display	LCD
Application	Heating and Cooling
Pressure Rating	PN16
Approval	MID
Accuracy	Class 2
Ambient Temperature Range	55°C
Housing Material	Brass
