Verificationpulses


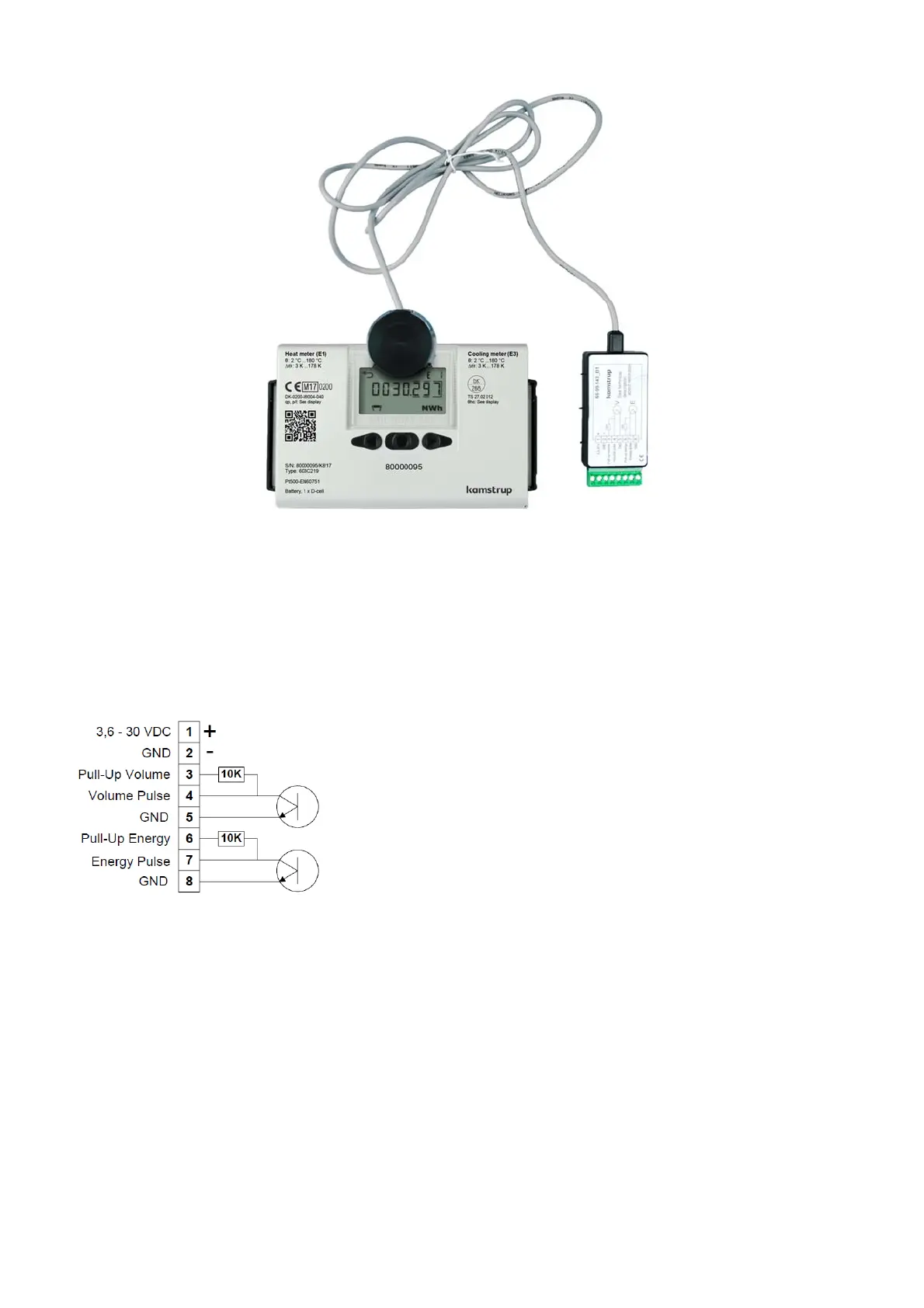

 When Pulse Interface type 6699‐143 is connected to power
supplyorbattery,th eunitisplacedonthemeter,andthemeter
isintestmode,thefollowingpulsesaretransmitted:
•High‐resolutionenergypulses:

1)
(0.001kWh/pulseto0.01MWh/pulse)onterminals7and8

•High‐resolutionvolumepulses:

1)
(0.01l/pulseto0.1m
3
/pulse)onterminals4and5

PulseInterface6699‐143,technicaldata
Supplyvoltage
Currentconsumption
Pulseoutputs
Pulseduration
3,6–30VDC
<15mA
<30VDC<15mA
3.9ms
1)
Seetable2paragraph6.4
 
