SA (Spectrum Analyzer) Mode
SA Mode Settings

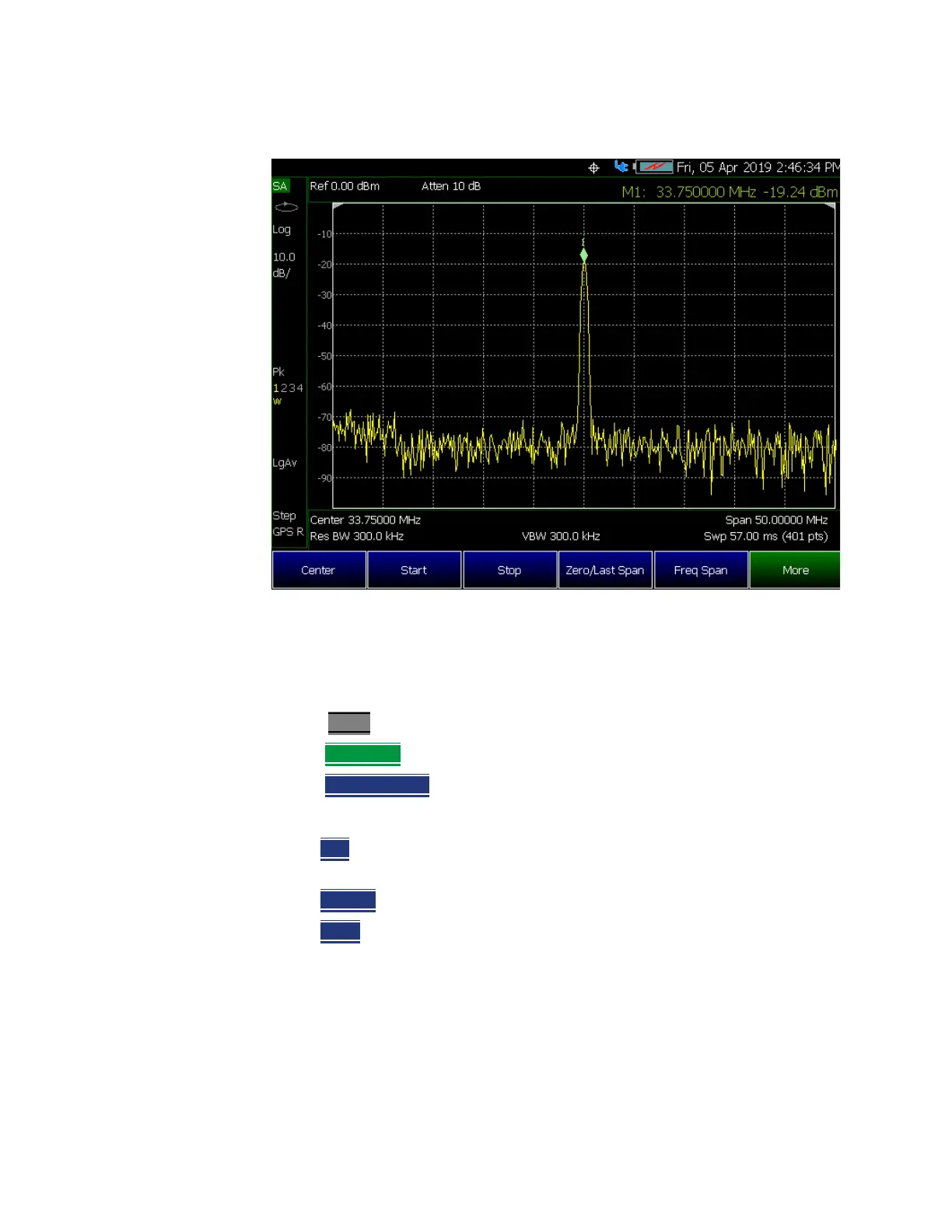

Figure 9-4 IF Output Wide with CF-33.75 MHz
How to select IF Output
The IF Output signal is useful only in Zero Span. Learn more about Zero Span in
“Zero Span Measurements” on page 170.
At least one sweep must be made in order to tune the FieldFox.
—Press BW 2
.
—Then Advanced
—Then IF Output Use
— Then choose from the following:
—OFF
The translated IF signal at the IF OUT connector is no longer
guaranteed to be centered at 33.75 MHz.
—Narrow
The IF output signal has approximately 5 MHz bandwidth.
—Wide
The IF output signal has approximately 25 MHz bandwidth.
